LT 120 AR - Electrolux/AYP Lawn Tractor ENCLOSURES Parts Diagram

Lawn Tractor

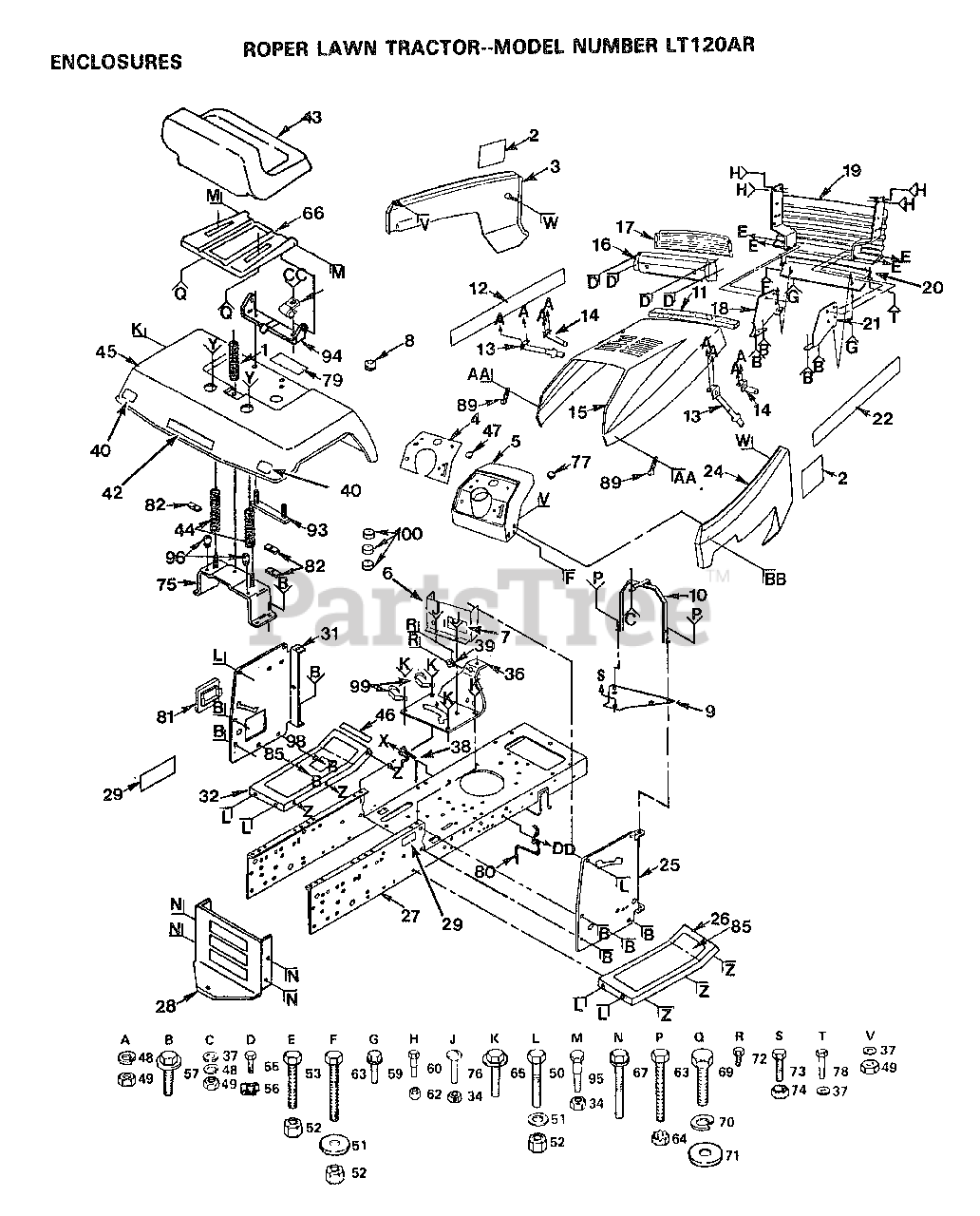

ENCLOSURES Parts Diagram

  • Title

2

Electrolux/AYP 108563X

NLA

$

$

Not available

3

Electrolux/AYP 108442X367

SUB= 132637X505

$

$

Not available

4

Electrolux/AYP 105414X

NLA

$

$

Not available

5

Electrolux/AYP 106099X

DASHBOARD LT

$

$

Not available

6

Electrolux/AYP 104783X

DASH ASSY LT

$

$

Not available

7

Electrolux/AYP 108456X

SUB= 138955

$

$

Not available

8

Electrolux/AYP 109641X

GROMMET T
(Superseded to 583657901)

$2.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 106965X

SUB= 140181

$

$

Not available

10

Electrolux/AYP 104786X

SUPPORT ASSY LT

$

$

Not available

11

Electrolux/AYP 105037X

FOAM-STRIP LT
(Superseded to 532104915)

$

$

Not available

12

Electrolux/AYP 104643X

NLA

$

$

Not available

13

Electrolux/AYP 106784X

SUB= 155013

$

$

Not available

14

Electrolux/AYP 104618X

SUB= 155013

$

$

Not available

15

Electrolux/AYP 108370X367

SUB= 150301X505

$

$

Not available

16

Electrolux/AYP 104613X

SUB= 147717
(Superseded to 583678801)

$

$

Not available

17

Electrolux/AYP 106395X

LENS LT
(Superseded to 583650801)

$37.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 104632X

SUPPORT-GRILL LT

$

$

Not available

19

Electrolux/AYP 104801X

NLA

$

$

Not available

20

Electrolux/AYP 104634X367

SUB= 105419X388

$

$

Not available

21

Electrolux/AYP 104633X

NLA

$

$

Not available

22

Electrolux/AYP 104644X

NLA

$

$

Not available

24

Electrolux/AYP 108443X367

SUB= 132636X505
(Superseded to 132636X505)

$

$

Not available

25

Electrolux/AYP 106976X

PANEL DASH RH YT

$

$

Not available

26

Electrolux/AYP 105464X367

SUB= 145243X505

$

$

Not available

27

Electrolux/AYP 108971X

SUB= 109512X

$

$

Not available

28

Electrolux/AYP 102481X

SUB= 145009

$

$

Not available

29

Electrolux/AYP 104808X

NLA

$

$

Not available

31

Electrolux/AYP 106966X

PANEL DASH HYT
(Superseded to 583653401)

$17.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 105465X367

SUB= 145244X428

$

$

Not available

34

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

36

Electrolux/AYP 108263X

SUB= 108263X012
(Superseded to 108263X012)

$

$

Not available

37

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 106301X

SUB= 121440X

$

$

Not available

39

Electrolux/AYP 1554J

SUB= 155108

$

$

Not available

40

Electrolux/AYP 106202X

REFLECTOR-TAIL YT
(Superseded to 532106202)

$

$

Not available

42

Electrolux/AYP 104810X

NLA

$

$

Not available

43

Electrolux/AYP 106855X

SUB= 140121

$

$

Not available

44

Electrolux/AYP 105512X

SPRING LT

$

$

Not available

45

Electrolux/AYP 108057X367

SUB= 109640X388

$

$

Not available

46

Electrolux/AYP 4900J

DECAL T

$

$

Not available

47

Electrolux/AYP 8022J

PLUG-DASH T
(Superseded to 532125085)

$

$

Not available

48

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

49

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

50

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

51

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

52

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 17211010

SCREW LT

$2.49

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 104755X

"""J"" FASTENER LT"

$2.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

59

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 7605J

BOLT T
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

63

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 73510600

NUT
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 105516X

SUB= 155925

$

$

Not available

67

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

69

Electrolux/AYP 74780816

BOLT
(Superseded to 582741301)

$2.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 10110800

SUB= 10040800

$

$

Not available

71

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

72

Electrolux/AYP 17431008

SUB= 98000165

$

$

Not available

73

Electrolux/AYP 74780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

74

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 105509X

SUB= 137113

$

$

Not available

76

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

77

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

79

Electrolux/AYP 106974X

SUB= 133796

$

$

Not available

80

Electrolux/AYP 106300X

SUB= 121441X

$

$

Not available

81

Electrolux/AYP 105505X

SUB= 121794X

$

$

Not available

82

Electrolux/AYP 105514X

"CLAMP, SPRING LT"
(Superseded to 583646001)

$2.99

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 108256X

PAD FOOTREST T
(Superseded to 532108256)

$

$

Not available

89

Electrolux/AYP 100225L

SUB= 109808X
(Superseded to 532109808)

$6.99

$

In Stock, Qty 14

0

93

Electrolux/AYP 105511X

SUB= 140675

$

$

Not available

94

Electrolux/AYP 105513X

SUB= 140551

$

$

Not available

95

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

96

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 105813X

SUB= 146046

$

$

Not available

99

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

100

CHECK WITH SUPPLIER

$

$

Not available
