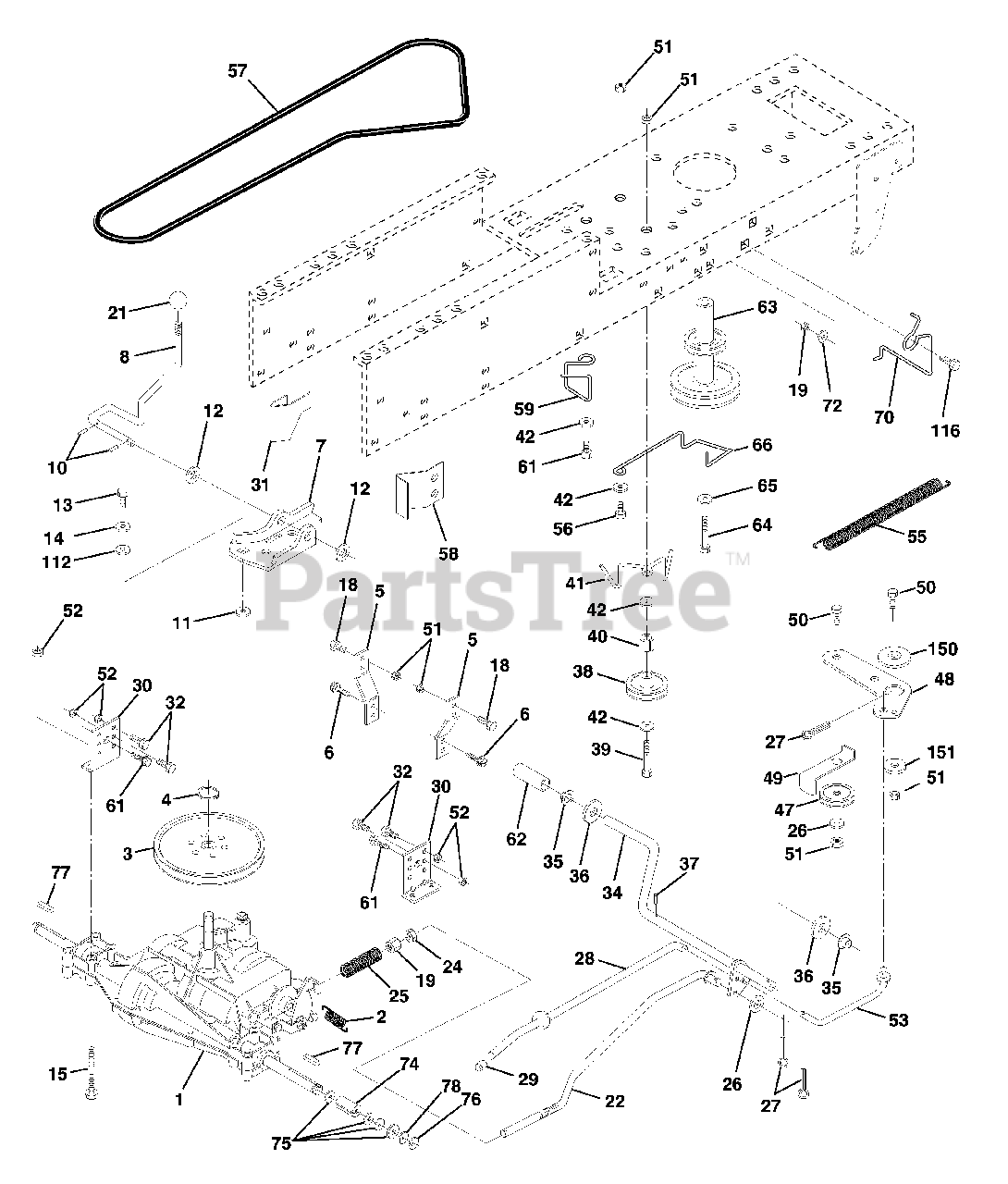

LT 120 (954140047-B) - Husqvarna Lawn Tractor (1998-01) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title
1

Transaxle (See Breakdown) Dana

Note: Model 4360-120

$

$

Not available

2

Husqvarna 532146682

Spring Return Brake

$8.99

$

In Stock, only 2 left!

0

3

Husqvarna 532123666

Pulley Transaxle 18"tires

$45.99

$

In Stock, only 1 left!

0

4

Husqvarna 812000028

Ring Retainer # 5100-62

$7.49

$

In Stock, Qty 7

0

5

Husqvarna 532121520

Strap Torque 30 Degrees

$7.99

$

In Stock, only 3 left!

0

6

Husqvarna 817490512

Screw Thdrol 5/16-18 X 3/4 TYT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532162240

Plate Rod Shift T/a

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532131679

Rod Shifter Blk (Dana)

$

$

Not available

10

Husqvarna 876020416

Pin Cotter 1/8 X 1 Cad

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532105701

Washer Plate Shf 388 Sq Hole

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 819151216

Washer 15/32 X 3/4 X 16 Ga

$

$

Not available

13

Husqvarna 874550412

Bolt 1/4-28 unf Gr. 8 w/Patch
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

15

Husqvarna 874490544

Bolt Hex Flghd 5/16-18 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 874780616

Bolt Fin Hex 3/8-16unc X 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

Nut lock Hex w/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532121274

Knob Duckhead 1/2-13 Unc Blk

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532130804

Rod Brake LT

$31.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873350600

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 532106888

Spring Rod Brake 2 00 Zinc
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Husqvarna 819131316

Washer 13/32 X 13/16 X 16 Ga
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 876020412

Pin Cotter 1/8 X 3/4 Cad
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 532145204

Rod Brake Parking LT/YT

$

$

Not available

29

Husqvarna 532071673

Cap Brake Parking Black

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532130807

Bracket Transmission

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532127275

Keeper Belt LH LT 14 Ga

$

$

Not available

32

Husqvarna 874760512

Bolt Fin Hex 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532155071

Shaft Asm Pedal Foot

$

$

Not available

35

Husqvarna 532120183

Bearing Nylon Blk 629 Id

$6.99

$

In Stock, only 3 left!

0

36

Husqvarna 819211616

Washer 21/32 X 1 X 16 Ga

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532124963

Pin Roll 3/16 X 1"
(Superseded to 532002882)

$4.99

$

In Stock, Qty 7

0

38

Husqvarna 532123674X

Pulley Idler Flat

$

$

Currently unavailable

39

Husqvarna 874760644

Bolt Fin Hex 3/8-16unc X 2-3/4

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532124965

Spacer Split 395 X 59 Bzp

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532154777

Keeper Belt Idler
(Superseded to 532165838)

$

$

Not available

42

Husqvarna 819131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532127783

Pulley Idler V Groove Plastic
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

48

Husqvarna 532154407

Bellcrank Clutch Grnd Drive STL

$8.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

Retainer Belt Style Spring

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 874760624

Bolt Hex Hd 3/8-16unc X 1-1/2
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873680600

Nut Crownlock 3/8-16 Unc

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

Nut Crownlock 5/16-18 unc
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532105710

Link Clutch 7 66
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

Spring Return Clutch 6 75

$11.99

$

Usually ships in 3-10 days

0

56

Husqvarna 874760620

Bolt Fin Hex 3/8 X 16 x 1-1/4

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532160855

V-Belt Ground Drive 95 30
(Superseded to 583271401)

$66.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532127274

Keeper Belt RH LT Pnt/zinc 16g

$4.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532140312

Keeper Belt Chassis Span Ctr
(Superseded to 532169691)

$26.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817490612

Screw Thdrol 3/8-16x3/4 Ty-tt
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

62

Husqvarna 532124872

Cover Pedal Blk Round
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

63

Husqvarna 532140186

Engine Pulley LT/YT

$113.99

$

Usually ships in 3-10 days

0

64

Husqvarna 871170764

Bolt Hex 7/16-20x4 Gr 5
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

65

Husqvarna 810040700

Washer Lock Hvy Hlcl Spr 7/16
(Superseded to 539990247)

$

$

Not available

66

Husqvarna 532154778

Keeper Belt Engine

$12.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532134683

Guide Belt Mower Drive RH

$

$

Not available

72

Husqvarna 819132012

Washer 13/32 X 1-1/4 X 12 Ga
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532109502

Spacer Axle

$

$

Not available

75

Husqvarna 532121749

Washer 25/32 X 1 1/4 X 16 Ga

$3.49

$

Usually ships in 3-10 days

0

76

Husqvarna 812000001

E-ring #5133-75

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532123583

Key Square 2 0 X 1845/ 1865

$4.99

$

In Stock, only 4 left!

0

78

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$4.99

$

In Stock, Qty 20+

0

112

Husqvarna 819091210

Washer 9/32 X 3/4 X 10 Ga

$6.99

$

Usually ships in 3-10 days

0

116

Husqvarna 872110610

Bolt Rdhd Sq Neck 3/8-16 x 1.25
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

148

$

$

Not available

149

Husqvarna 532122052

Spacer Retainer PM Mower
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

150

Husqvarna 532150935

Bushing Nylon Collered

$

$

Not available

151

Husqvarna 819133210

Washer 13/32 x 2 x 10 Ga.
(Superseded to 532413524)

$

$

Not available
