LT 120 (954140047-A) - Husqvarna Lawn Tractor (1998-01) Dana Transaxle - Model Number 4360-112 Parts Diagram

Lawn Tractor

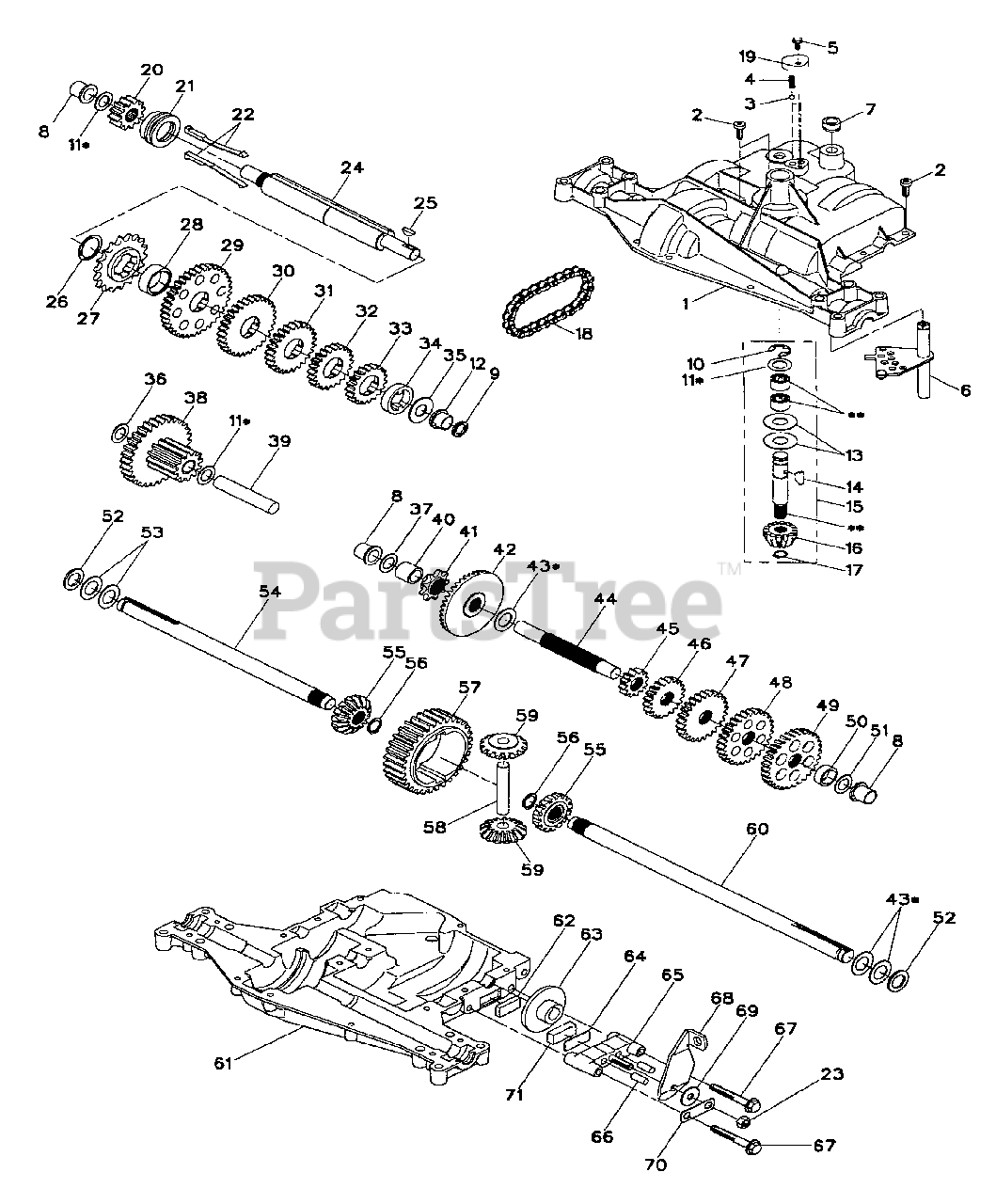

Dana Transaxle - Model Number 4360-112 Parts Diagram

  • Title

1

Husqvarna 160939

Housing, Upper
(Superseded to 582996401)

$207.99

$

Usually ships in 3-10 days

0

2

Husqvarna 2274J

Screw, Tapping, 1/4-20 X .734

$

$

Not available

3

Husqvarna 134400

Ball, Detent

$

$

Not available

4

Husqvarna 105904X

Spring, Detent
(Superseded to 583647001)

$

$

Not available

5

Husqvarna 160940

Screw, Tapping, No.10-24 X .482

$

$

Not available

6

Husqvarna 138235

Assy, Shifter

$

$

Not available

7

Husqvarna 108727X

V-Ring
(Superseded to 583655601)

$12.99

$

Usually ships in 3-10 days

0

8

Husqvarna 148266

Bearing, Flange

$

$

Not available

9

Husqvarna 148269

Seal, Oil

$

$

Not available

10

Husqvarna 2225J

Ring, Retaining

$

$

Not available

11

Husqvarna 134793

Assy, Kit, Shim, .625 Shaft

$

$

Not available

12

Husqvarna 148268

Bearing, Flange

$

$

Not available

13

Husqvarna 120415X

Washer, Plain, .632 X 1.38 X .046
(Superseded to 532120415)

$2.99

$

Usually ships in 3-10 days

0

14

Husqvarna 142674

Key, Woodruff, No. 9
(Superseded to 532142674)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 138234

Assy, Kit, Input Shaft

$

$

Not available

16

Husqvarna 110078X

Pinion, Bevel, 14T

$

$

Not available

17

Husqvarna 105909X

Ring, Retaining
(Superseded to 583647301)

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 105910X

Chain, 24 Pitches
(Superseded to 532105910)

$

$

Not available

19

Husqvarna 160942

Cover, Detent
(Superseded to 582996501)

$13.99

$

Usually ships in 3-10 days

0

20

Husqvarna 160943

Gear, Spur, 12T
(Superseded to 582996601)

$

$

Not available

21

Husqvarna 148267

Collar, Clutch

$

$

Not available

22

Husqvarna 138236

Assy, Kit, Clutch Keys

$

$

Not available

23

Husqvarna 73810500

Nut, Lock, 5/16-24

$2.99

$

Usually ships in 3-10 days

0

24

Husqvarna 142676

Shaft, Intermediate

$

$

Currently unavailable

25

Husqvarna 2244J

Key, Woodruff, No. 61

$

$

Not available

26

Husqvarna 105916X

Ring, Retaining
(Superseded to 532105916)

$2.99

$

Usually ships in 3-10 days

0

27

Husqvarna 120470X

Sprocket, 18T

$

$

Not available

28

Husqvarna 110070X

Spacer, 1.131 X 1.45 X .494
(Superseded to 583658801)

$7.99

$

Usually ships in 3-10 days

0

29

Husqvarna 142677

Gear, Spur, 37T
(Superseded to 582959701)

$35.99

$

Usually ships in 3-10 days

0

30

Husqvarna 124644X

Gear, Spur, 30T
(Superseded to 583670301)

$66.99

$

Usually ships in 3-10 days

0

31

Husqvarna 108980X

Gear, Spur, 25T
(Superseded to 583656801)

$46.99

$

Usually ships in 3-10 days

0

32

Husqvarna 120406X

Gear, Spur, 22T
(Superseded to 583662001)

$26.99

$

Usually ships in 3-10 days

0

33

Husqvarna 134796

Gear, Spur, 19T
(Superseded to 584444901)

$31.99

$

Usually ships in 3-10 days

0

34

Husqvarna 134797

Spacer, 1.133 X 1.50 X .375

$

$

Not available

35

Husqvarna 105925X

Washer, Plain, .640 X 1.37 X .061

$

$

Not available

36

Husqvarna 2228J

Washer, Plain, .632 X 1.00 X .046
(Superseded to 583729101)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 2231J

Washer, Plain, .632 X 1.00 X .031
(Superseded to 583729401)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 160944

Assy, Gear, Comb., 12T & 30T

$88.99

$

Usually ships in 3-10 days

0

39

Husqvarna 124639X

Shaft, Idler
(Superseded to 532124639)

$36.99

$

Usually ships in 3-10 days

0

40

Husqvarna 120472X

Spacer, .633 X .87 X .755
(Superseded to 583663001)

$6.99

$

Usually ships in 3-10 days

0

41

Husqvarna 105928X

Sprocket, 9T
(Superseded to 532105928)

$

$

Not available

42

Husqvarna 110084X

Gear, Bevel, 42T

$

$

Not available

43

Husqvarna 134394

Assy, Kit, Shim, .750 Shaft
(Superseded to 532134394)

$

$

Not available

44

Husqvarna 120473X

Shaft, Drive
(Superseded to 583663101)

$

$

Not available

45

Husqvarna 142678

Gear, Spur, 12T
(Superseded to 582959801)

$10.99

$

Usually ships in 3-10 days

0

46

Husqvarna 124641X

Gear, Spur, 20T
(Superseded to 583670201)

$21.99

$

Usually ships in 3-10 days

0

47

Husqvarna 106589X

Gear, Spur, 25T
(Superseded to 583651701)

$33.99

$

Usually ships in 3-10 days

0

48

Husqvarna 120408X

Gear, Spur, 28T
(Superseded to 583662101)

$47.99

$

Usually ships in 3-10 days

0

49

Husqvarna 105937X

Gear, Spur, 31T

$38.99

$

Usually ships in 3-10 days

0

50

Husqvarna 105936X

Spacer, .781 x 1.00 x .375

$

$

Not available

51

Husqvarna 2226J

Washer, Plain, .632 X 1.00 X .060

$

$

Not available

52

Husqvarna 134401

Washer, Neoprene

$

$

Currently unavailable

53

Husqvarna 2264J

Washer, Plain, .758 X 1.25 X .031
(Superseded to 583729701)

$4.99

$

Usually ships in 3-10 days

0

54

Husqvarna 160946

Axle, LH
(Superseded to 582996801)

$103.99

$

Usually ships in 3-10 days

0

55

Husqvarna 110081X

Gear, Miter, 15T

$

$

Not available

56

Husqvarna 160948

Ring, Retaining
(Superseded to 582997001)

$7.99

$

Usually ships in 3-10 days

0

57

Husqvarna 110071X

Gear, Spur, 32T

$

$

Not available

58

Husqvarna 120952X

Shaft, Cross
(Superseded to 583663901)

$17.99

$

Usually ships in 3-10 days

0

59

Husqvarna 110082X

Gear, Miter, 15T

$

$

Not available

60

Husqvarna 160950

Axle, RH
(Superseded to 582997201)

$122.99

$

Usually ships in 3-10 days

0

61

Husqvarna 142680

Housing, Lower

$

$

Currently unavailable

62

Husqvarna 120961X

Puck, Friction

$

$

Not available

63

Husqvarna 7294J

Disc, Brake

$

$

Not available

64

Husqvarna 108989X

Spacer, Brake Puck

$

$

Not available

65

Husqvarna 160952

Jaw, Brake

$

$

Not available

66

Husqvarna 120954X

Pin, Dowel

$

$

Not available

67

Husqvarna 160953

Screw, Tapping, 5/16-18 X 2.35
(Superseded to 532160953)

$8.99

$

Usually ships in 3-10 days

0

68

Husqvarna 138244

Lever, Actuating

$

$

Not available

69

Husqvarna 108996X

Washer, Plain, .321 X 1.00 X .055
(Superseded to 583657101)

$6.99

$

In Stock, Qty 9

0

70

Husqvarna 160954

Bracket, Anti-Rotation

$

$

Not available

71

Husqvarna 120951X

Puck, Friction

$

$

Not available

72

Husqvarna 120416X

Grease

$

$

Not available
