LT 120 (954140002-B) - Husqvarna Lawn Tractor (1997-01) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

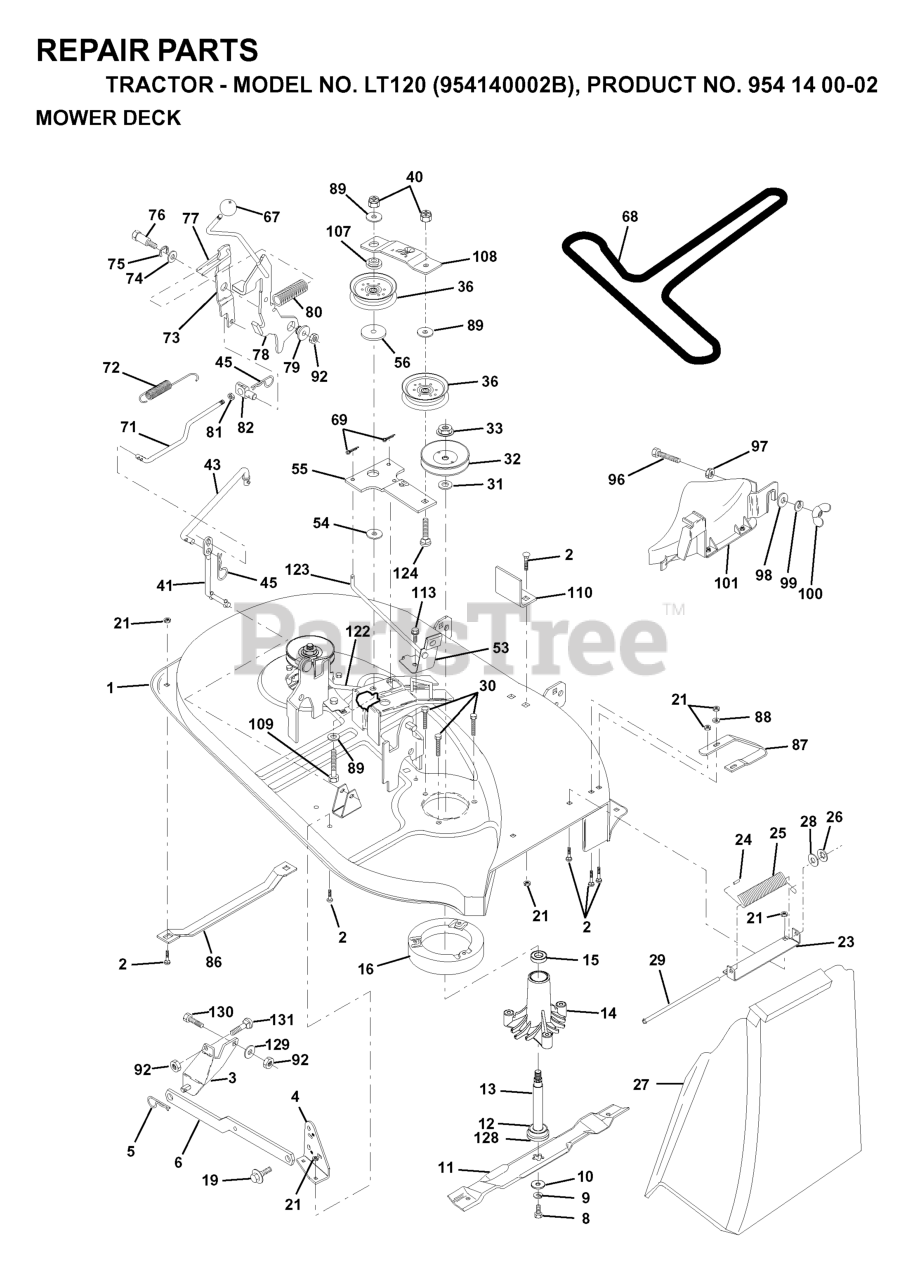

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
99

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

78

Husqvarna 532154809

ARM ASM CLUTCH PRIMARY

$17.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532130794

KIT.MANDREL.ASM.3.BOLT

$56.99

$

In Stock, Qty 5

0

80

Husqvarna 532153701

SPRING-CLUTCH (2 2 PW01)

$

$

Not available

29

Husqvarna 532106735

ROD-HINGE T

$10.99

$

In Stock, only 1 left!

0

69

Husqvarna 876020312

COTTER PIN
(Superseded to 876020308)

$

$

Not available

12

Husqvarna 532129895

BEARING.BALL.#6204.(MANDREL)

$11.99

$

In Stock, Qty 20+

0

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

122

Husqvarna 532131289

BRAKE ROD LH

$

$

Not available

41

$8.99

$

In Stock, only 1 left!

0

23

Husqvarna 532137607

BRACKET, DEFLECTOR

$6.49

$

In Stock, only 2 left!

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532130840

BRAKE ASSEMBLY

$12.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532142820

DECK SER 38

$

$

Not available

43

Husqvarna 532133504

CLUTCH ROD SECONDARY

$

$

Not available

75

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$34.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

128

Husqvarna 532153390

WASHER FELT

$6.49

$

In Stock, only 3 left!

0

107

Husqvarna 532133502

SPACER.IDLER.ARM

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 532130832

REAR SUSP ARM
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

123

Husqvarna 532131288

BRAKE ROD RH

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532157722

SCREW THDROL ROLLING WASHER HD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

73

Husqvarna 532127847

ARM CLUTCH SECONDARY

$2.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532131870

RETURN SPRING

$18.99

$

In Stock, only 1 left!

0

87

Husqvarna 532128772

RUNNER.RH.38

$

$

Not available

86

Husqvarna 532125074

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

97

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

56

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

68

Husqvarna 532144200

V-BELT TRIPATH

$45.99

$

Usually ships in 3-10 days

0

113

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

100

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

131

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

32

Husqvarna 532153532

PULLEY MANDREL
(Superseded to 532173435)

$22.99

$

In Stock, only 2 left!

0

79

Husqvarna 532127498

BUSHING.FLANGE.E-RING.GROOVE

$

$

Not available

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532140329

STRIPPER
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

98

Husqvarna 819132016

WASHER
(Superseded to 819132012)

$3.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532137266

NUT
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

4

Husqvarna 532138440

BRKT DECK SW BAR

$6.49

$

Usually ships in 3-10 days

0

101

Husqvarna 532132803

COVER.MULCHING.38" (2 2)

$66.99

$

Usually ships in 3-10 days

0

88

Husqvarna 819111216

WASHER M
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532106736

SHIELD.DEFLECTOR.MOWER.38.BL

$

$

Not available

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

1

Husqvarna 532142829

DECK ASSY-WELDMENT
(Superseded to 532145775)

$

$

Not available

108

Husqvarna 532133503

STIFFENER.IDLER.ARM

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, only 1 left!

0

110

Husqvarna 532142587

UPSTOP DECK FRONT 38"

$

$

Not available

81

Husqvarna 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

$6.99

$

In Stock, only 2 left!

0

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

36

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

11

Husqvarna 532134148

BLADE 38" V MULCH

$26.99

$

In Stock, only 2 left!

0

15

$13.99

$

In Stock, Qty 11

0

$6.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

$6.49

$

Usually ships in 3-10 days

0

89

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532127845

KEEPER SPRING

$

$

Not available

8

Husqvarna 532850857

BLADE BOLT

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

129

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532142028

TRUNNION.ADJUSTABLE.3/8-16

$

$

Not available

40

$3.99

$

Usually ships in 3-10 days

0

96

Husqvarna 874930620

Bolt, Hex Head 3/8-16 x 1-1/4

$3.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532142427

CLUTCH ROD
(Superseded to 532142655)

$

$

Not available

54

Husqvarna 532133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

$

$

Not available

109

Husqvarna 874760640

Bolt Hex Fin 3/8-16 UNC x 2-1/2

$

$

Not available
