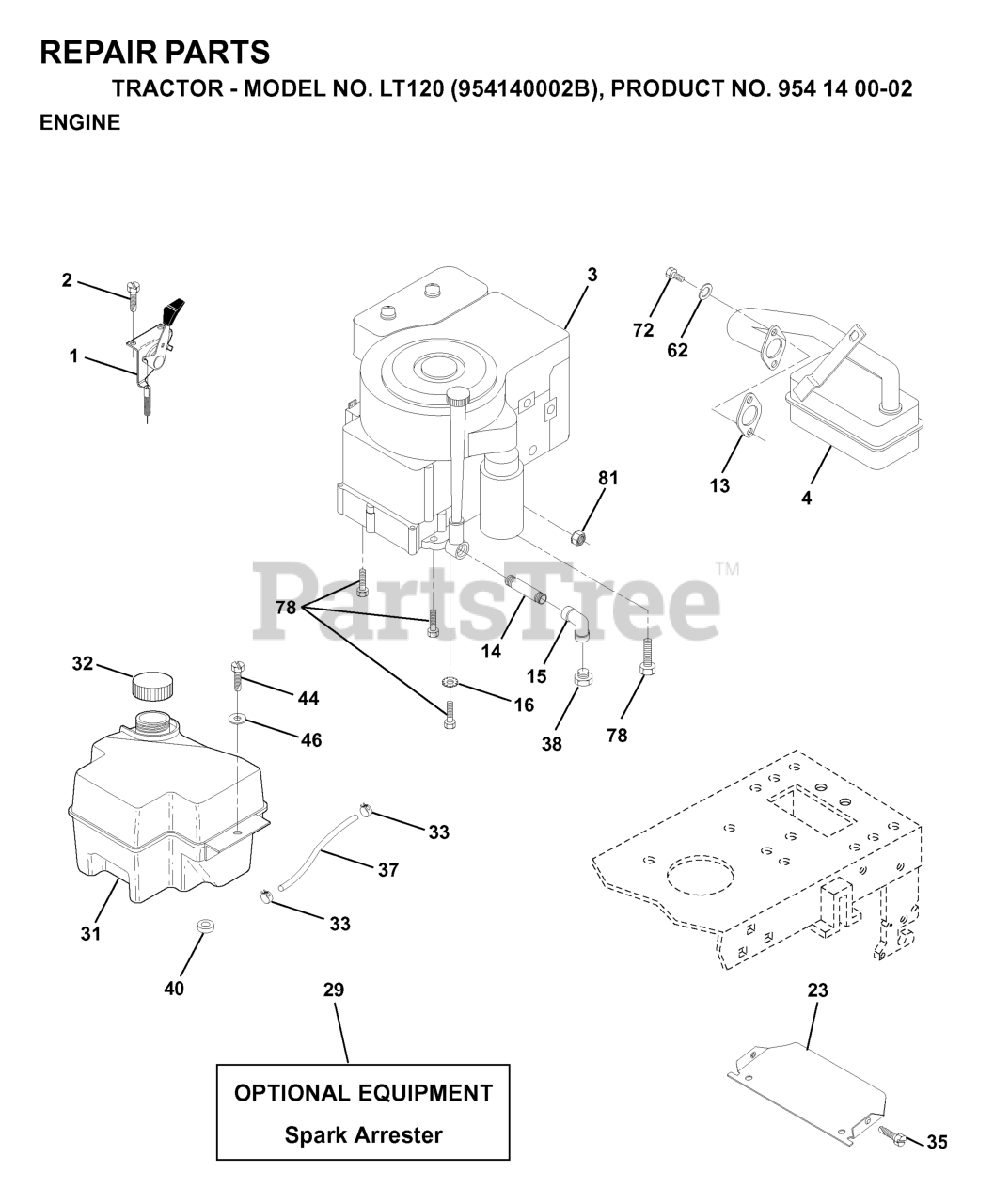

LT 120 (954140002-B) - Husqvarna Lawn Tractor (1997-01) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title

13

Husqvarna 532272293

GASKET.ENG.1.313 ID.TIN PLATED

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 813280324

Nipple Pipe 3/8 Npt X 3-1/2

$

$

Not available

15

Husqvarna 813200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

46

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

72

Husqvarna 871070512

SCREW
(Superseded to 532192334)

$

$

Not available

2

Husqvarna 817720410

SCREW LT
(Superseded to 874780410)

$3.99

$

In Stock, only 1 left!

0

31

Husqvarna 532140280

FUEL TANK
(Superseded to 532180645)

$

$

Not available

16

Husqvarna 811050600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

35

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 817490412

SCREW HEX CRT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

1

Husqvarna 532140310

CHOKE CONTROL
(Superseded to 532170551)

$37.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532140527

FUEL CAP
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532156123

SHIELD HEAT

$

$

Not available

62

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

81

Husqvarna 532128861

NUT FLANGE 1/4-20 STARTER NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

4

Husqvarna 532137348

MUFFLER.SINGLE.B&S.10-12HP

$102.99

$

In Stock, only 1 left!

0

40

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$5.99

$

In Stock, only 3 left!

0

78

Husqvarna 817490620

SCREW
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0
