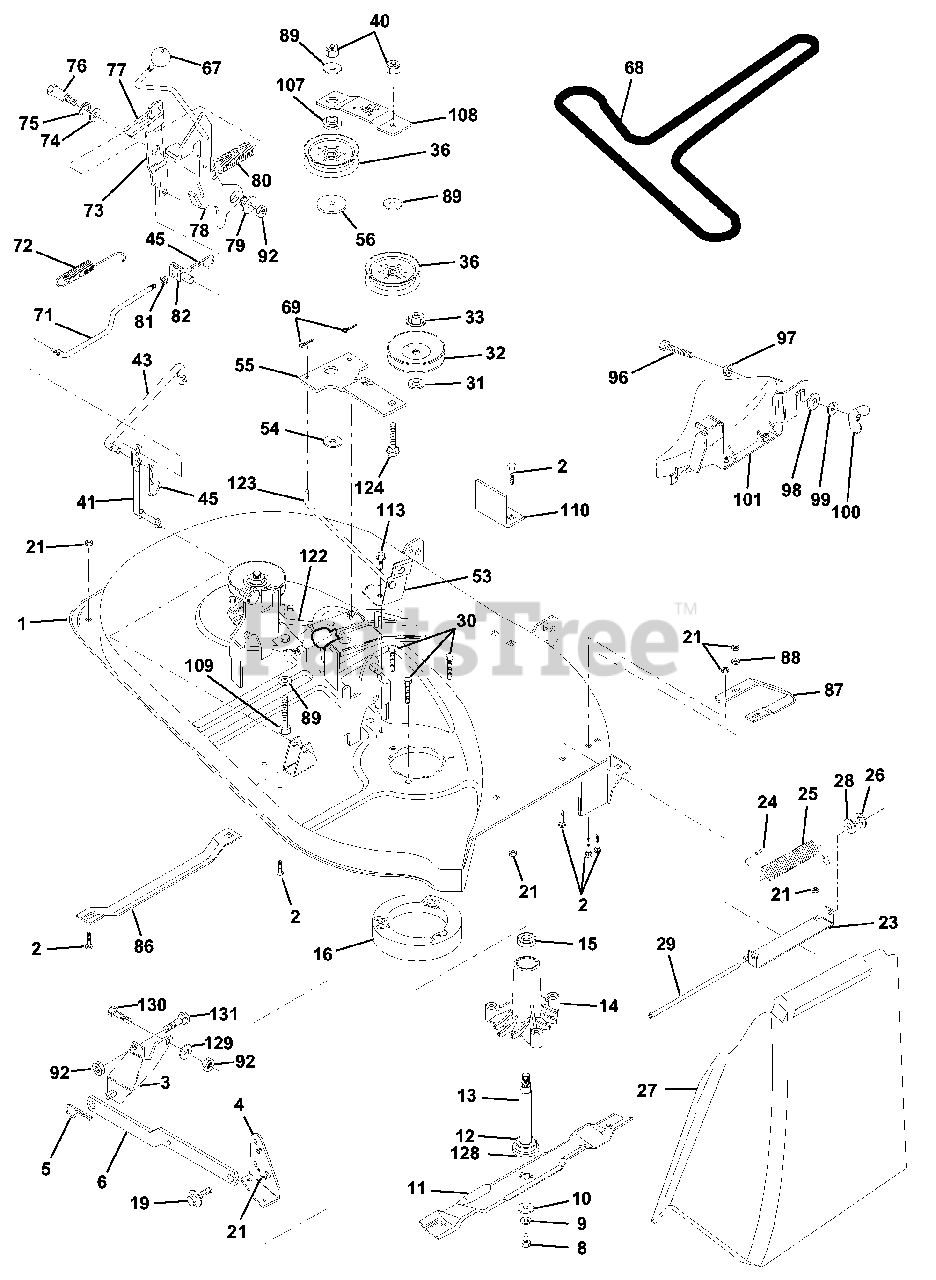

LT 120 (954140002-A) - Husqvarna Lawn Tractor (1996-12) Mower Deck Parts Diagram

Lawn Tractor

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532142829

Asm Mower Housing
(Superseded to 532145775)

$

$

Not available

2

Husqvarna 872140506

Bolt Rdhd Sqnk 5/16-18unc X 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

Bracket Asm Fr Sway Bar 38/42

$12.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532138440

Bracket Asm Deck Sway Bar

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

Retainer Spring

$

$

Not available

6

Husqvarna 532130832

Arm Suspension Rear
(Superseded to 532130833)

$8.99

$

In Stock, only 4 left!

0

8

Husqvarna 532850857

Bolt 3/8 - 24 X 1.25 Gr 8

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 810030600

Washer Lock Hvy 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 19

0

10

Husqvarna 532140296

Washer Hard Blade Mower Vented

$6.99

$

In Stock, only 2 left!

0

11

Husqvarna 532134148

Blade Mower Mulching 38"

$26.99

$

In Stock, only 2 left!

0

12

Husqvarna 532129895

Bearing Ball #6024 (Mandrel)

$11.99

$

In Stock, Qty 20+

0

13

Husqvarna 532137645

Shaft Asm W/lower Bearing
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Husqvarna 532128774

Housing Mandrel Vented

$34.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

Bearing Ball Mandrel

$13.99

$

In Stock, Qty 11

0

16

Husqvarna 532140329

Stripper Mower Vented
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532132827

Bolt Shoulder

$

$

Not available

21

Husqvarna 873680500

Nut Crownlock 5/16-18 UNC
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532137607

Bracket Deflector Mower

$6.49

$

In Stock, only 2 left!

0

24

Husqvarna 532105304

Cap Sleeve 80x 112 Blk Mower

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

Spring Torsion Deflector 2 52

$7.99

$

In Stock, only 1 left!

0

26

Husqvarna 532110452

Nut Push Phos & Oil

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532106736

Shield Deflector

$

$

Not available

28

Husqvarna 819111016

Washer 11/32 X 5/8 X 16 Ga

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532106735

Rod Hinge

$10.99

$

In Stock, only 1 left!

0

30

Husqvarna 532138776

Screw Thdrol Hex Head Zinc Mwr
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532129963

Washer Spacer Mower Vented
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

32

Husqvarna 532153535

Pulley Mandrel
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532137266

Nut 9/16 Toplock Flng Oil Dip
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

36

Husqvarna 532131494

Pulley Idler Flat 3 060
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

40

Husqvarna 873680600

Nut Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532133551

Rod Pivot W/nibs

$8.99

$

In Stock, only 1 left!

0

43

Husqvarna 532133504

Rod Clutch Secondary

$

$

Not available

45

Husqvarna 532124788

Spring Retainer 1" Zinc/cad
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

53

Husqvarna 532130840

Asm Brake

$12.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532133943

Washer Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532133840

Arm Idler

$

$

Not available

56

Husqvarna 532122052

Spacer Retainer Pm Mower
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

67

Husqvarna 532106932

Knob Rd 1/2-13 Plstc Thds Blk

$7.99

$

In Stock, Qty 5

0

68

Husqvarna 532144200

V-Belt Mower

$45.99

$

Usually ships in 3-10 days

0

69

Husqvarna 876020312

Pin, Cotter 3/32 x 3/4
(Superseded to 876020308)

$

$

Not available

71

Husqvarna 532142427

Rod Clutch Primary 38/42
(Superseded to 532142655)

$

$

Not available

72

Husqvarna 532131870

Spring Return

$18.99

$

In Stock, only 1 left!

0

73

Husqvarna 532127847

Arm Clutch Secondary

$2.99

$

Usually ships in 3-10 days

0

74

Husqvarna 532121748

Washer 25/32 X 1-5/8 X 16 Ga

$4.99

$

In Stock, Qty 20+

0

75

Husqvarna 812000029

Ring Klip #t5304-75

$4.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532128903

Bolt Shoulder 3/8-16 Unc 1 44

$6.99

$

In Stock, only 2 left!

0

77

Husqvarna 532127845

Keeper Spring 4 000

$

$

Not available

78

Husqvarna 532154809

Arm Asm Clutch Primary

$17.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532127498

Bushing 747 Od X 794 Lg Brass

$

$

Not available

80

Husqvarna 532153701

Spring Clutch Mower

$

$

Not available

81

Husqvarna 873350600

Nut Hex Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

82

Husqvarna 532142028

Trunnion Adj 94

$

$

Not available

86

Husqvarna 532125074

Runner, LH
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532128772

Runner, RH

$

$

Not available

88

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

89

Husqvarna 819131612

Washer 13/32 x 1 x 12 Ga.

$6.49

$

Usually ships in 3-10 days

0

92

Husqvarna 873800600

Nut Lock Hex W/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

96

Husqvarna 874930620

Bolt 3/8-16 x 1-1/4 Mulcher

$3.99

$

Usually ships in 3-10 days

0

97

Husqvarna 873930600

Nut Crownlock 3/8-16 UNC
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

98

Husqvarna 819132016

Washer 13/32 x 1-1/4 x 16 Ga.
(Superseded to 819132012)

$3.49

$

Usually ships in 3-10 days

0

99

Husqvarna 810040600

Washer Lock Hvy Hlcl Spr 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

100

Husqvarna 532135651

Nut Wing

$3.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532132803

Cover Asm Mulching 38"

$66.99

$

Usually ships in 3-10 days

0

107

Husqvarna 532133502

Spacer, Retainer

$6.49

$

In Stock, only 1 left!

0

108

Husqvarna 532133503

Stiffener, Idler Arm

$6.49

$

Usually ships in 3-10 days

0

109

Husqvarna 874760640

Bolt, Hex Head 3/8-16 x 2-1/2

$

$

Not available

110

Husqvarna 532142587

Upstop Deck Front 38"

$

$

Not available

113

Husqvarna 817490512

Screw Thdrol 5/16-18 X 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

122

Husqvarna 532131289

Rod, Brake, LH

$

$

Not available

123

Husqvarna 532131288

Rod, Brake, RH

$8.99

$

Usually ships in 3-10 days

0

124

Husqvarna 872110614

Bolt, Carriage 3/8-16 x 1-3/4

$6.49

$

Usually ships in 3-10 days

0

128

Husqvarna 532153390

Washer Felt

$6.49

$

In Stock, only 3 left!

0

129

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

130

Husqvarna 874780616

Bolt, Fin Hex 3/8-16 UNC x 1 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

131

Husqvarna 872140608

Bolt, Rdhd Sqnk 3/8-16 x 1
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

Husqvarna 532130794

Mandrel Asm Service

Note: (Includes Key Nos. 8-10, 12-15, 31 and 33)

$56.99

$

In Stock, Qty 5

0

Husqvarna 532142820

Mower Deck Complete

$

$

Not available
