LT-120 (139-666-190) - White Outdoor 38" Lawn Tractor (1989) Body Assembly Parts Diagram

38" Lawn Tractor

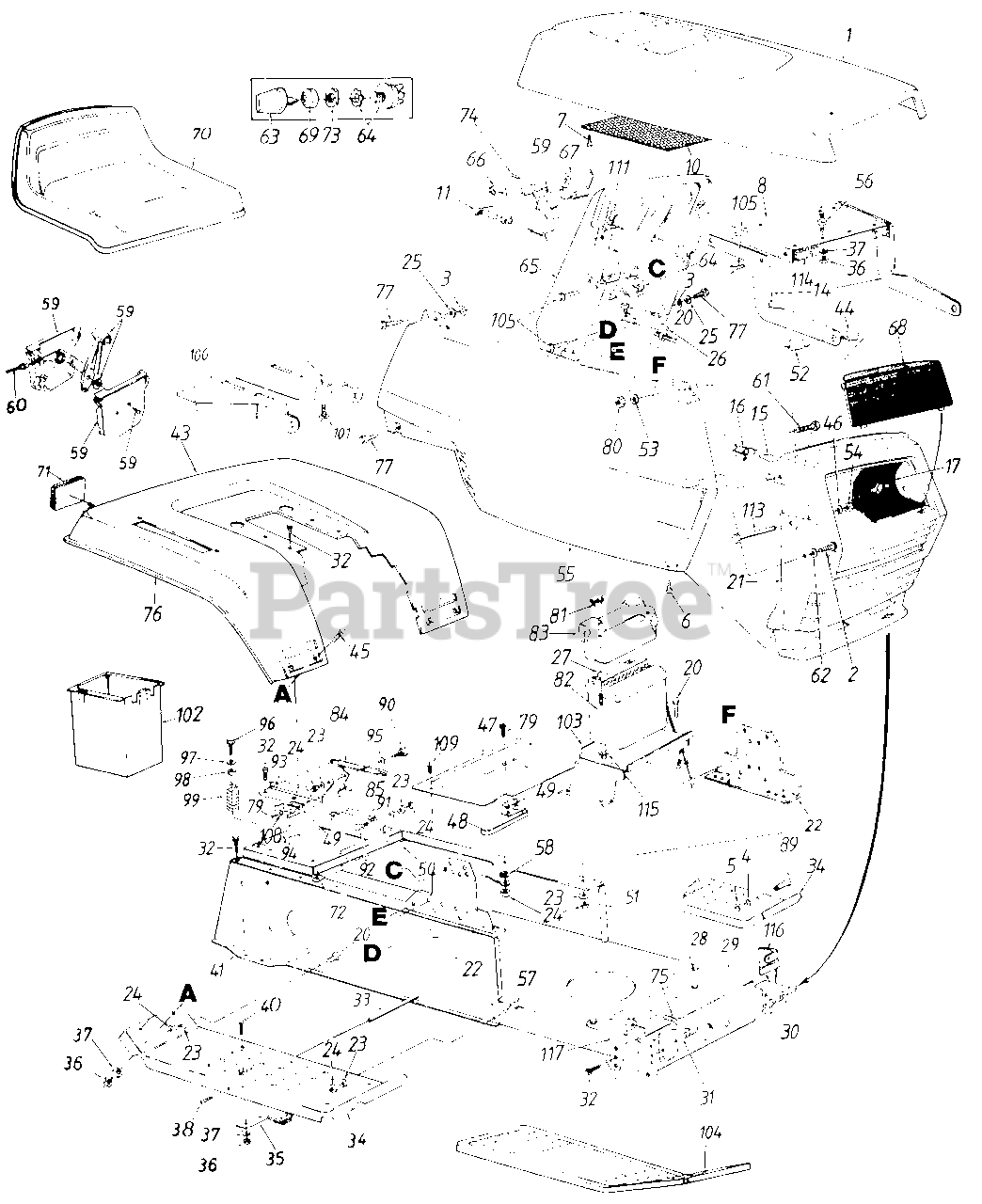

Body Assembly Parts Diagram

  • Title

1

White Outdoor 731-1036

Hood

Variations

White Outdoor 731-1036-0629

HOOD - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 731-1036-0638

HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 731-1036-0662

HOOD OYSTER GRAY - OYSTER GRAY (0662)

$

$

Not available

$

$

2

White Outdoor 710-0896

Hex Wash. B-Tap Scr. 1/4 x.62" Lg.

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

6

White Outdoor 710-0224

Truss Mach. AB-Tap Scr. #10 x .5" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0200

Hex Wash Hd. AB-Tap Scr. #8 x .5" Lg.

$

$

Not available

8

White Outdoor 16903

Hood Plate
(Superseded to 16903A-0637)

$

$

Not available

White Outdoor 738-0141

Shld. Bolt.437" Dia.
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

10

White Outdoor 731-1073

Air Duct

$

$

Not available

11

White Outdoor 746-0615A

Choke Control 29" Lg.
(Superseded to 946-0615A)

$47.99

$

Usually ships in 3-6 days

0

14

White Outdoor 16902

Hood Hinge

$

$

Not available

15

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

16

White Outdoor 725-1058

Twist Lock-Lamp Socket
(Superseded to 925-1058A)

$

$

Not available

17

777-8516

Reflector-Headlight

$

$

Not available

20

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

731-1037

Grille

$

$

Not available

22

White Outdoor 17300

Dash Support Bracket

$

$

Not available

23

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

25

White Outdoor 736-0176

Fl-Wash. 1/4 I.D. x.93" O.D.

$4.99

$

In Stock, only 4 left!

0

26

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 725-0453A

12 Volt Battery
(Superseded to 925-0453G)

$

$

Not available

28

White Outdoor 15930B

Lower Frame

$

$

Not available

29

14619A

Front Pivot Brk't.

$

$

Not available

30

White Outdoor 16713

Grille Mount Brk't.-L.H.

$

$

Not available

31

White Outdoor 16712

Grille Mount Brk't.-R.H.

$

$

Not available

32

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 738-0526

Running Board Rod

$

$

Not available

34

14604E

Running Board

Note: (R.H. & L.H.)

$

$

Not available

35

White Outdoor 761-0168

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

36

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

37

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

38

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

40

White Outdoor 710-0134

Carr. Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 14602G

R.H. Side Frame
(Superseded to 14602G-0637)

Variations

White Outdoor 14602G-0637

FRAME-SIDE-RH - POWDER BLACK (0637)

$

$

Not available

$

$

43

White Outdoor 17325

Rear Fender

Variations

White Outdoor 17325-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

44

White Outdoor 750-0755

Spacer .33" I.D. x .625" O.D.

$4.49

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

47

White Outdoor 17286

Transmission Panel
(Superseded to 17286B-0637)

$42.99

$

Usually ships in 3-6 days

0

48

White Outdoor 725-0759

Reverse Safety Switch
(Superseded to 753-0579)

$

$

Not available

49

White Outdoor 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

50

White Outdoor 17225

Hitch Plate

$

$

Not available

51

White Outdoor 14603G

L.H. Side Frame

Variations

White Outdoor 14603G-0637

No Longer Available FRAME-SIDE-LH - POWDER BLACK (0637)

$

$

Not available

$

$

52

White Outdoor 750-0754

Shld. Spacer .33" I.D.

$

$

Not available

53

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

54

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

55

White Outdoor 17448

Side Cover-R.H.

$

$

Not available

White Outdoor 17447

Side Cover-L.H.

Note: (Not Shown)

$

$

Not available

56

White Outdoor 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

57

White Outdoor 710-0971

Truss Hd. Scr. 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, only 1 left!

0

58

White Outdoor 736-0607

Ext. L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

59

White Outdoor 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

60

White Outdoor 746-0501

Throttle Control Wire 18.5" Lg.

$17.99

$

In Stock, only 1 left!

0

61

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

64

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

65

White Outdoor 731-0956

Dash Panel

$

$

Not available

66

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

67

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

68

White Outdoor 731-1038

Lens
(Superseded to 931-1038A)

$

$

Not available

69

White Outdoor 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

70

White Outdoor 757-0338

Seat Ass'y.
(Superseded to 957-0360A)

$

$

Not available

71

White Outdoor 730-3000

Reflector
(Superseded to 930-3000)

$17.99

$

In Stock, only 2 left!

0

72

White Outdoor 726-0139

Speed Nut #10Z

$6.99

$

Usually ships in 3-6 days

0

73

White Outdoor 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

White Outdoor 710-0779

Truss Mach. AB-Tap Scr. #10 x .5" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

75

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

76

White Outdoor 731-0511

Trim Strip-81"

$3.99

$

Usually ships in 3-6 days

0

77

White Outdoor 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

79

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

80

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

81

White Outdoor 712-0113

Wing Nut 1/4-20 Thd.-Plastic
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

82

White Outdoor 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

83

White Outdoor 731-0707

Battery Cover

$

$

Not available

84

White Outdoor 732-0581

Ext. Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

85

White Outdoor 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

89

White Outdoor 738-0145

Shoulder Bolt

$6.99

$

Usually ships in 3-6 days

0

90

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

91

White Outdoor 17243

Seat Pivot Brkt. Support-L.H.

$

$

Not available

92

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162n
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

93

White Outdoor 17244

Seat Pivot Brkt. Support-R.H.

$

$

Not available

94

White Outdoor 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

95

White Outdoor 736-0141

Spr.-Wash. .445" I.D.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

96

White Outdoor 710-0602

Hex Wash. Hd. Tap Scr. 5/16-18 x 1n Lg.

$4.49

$

In Stock, Qty 20+

0

97

White Outdoor 736-0159

Fl-Wash. .344" I.D.

$4.49

$

In Stock, Qty 20+

0

98

White Outdoor 722-0160

Bushing

$

$

Not available

99

White Outdoor 732-0588

Compression Spring

$15.99

$

In Stock, only 2 left!

0

100

White Outdoor 15607D

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

101

White Outdoor 710-0623

Hex Tap Scr. 3/8-16 x .75"

$4.49

$

In Stock, Qty 20+

0

102

White Outdoor 731-0873A

Utility Box

$

$

Not available

103

White Outdoor 12747A

Battery Bracket

$

$

Not available

104

White Outdoor 731-0911

Foot Pad-L.H.

$

$

Not available

White Outdoor 731-0912

Foot Pad-R.H.

$

$

Not available

105

White Outdoor 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

108

White Outdoor 736-0426

Fiber Washer

$

$

Not available

109

White Outdoor 710-0351

Truss Mach. Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

111

White Outdoor 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

113

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 2 left!

0

114

White Outdoor 722-0199

Foam Seal

$

$

Not available

115

White Outdoor 726-0271

Push Nut
(Superseded to 926-0271)

$6.49

$

In Stock, only 2 left!

0

116

White Outdoor 17449

Muffler Heat Shield Brkt.-L.H.

$

$

Not available

117

White Outdoor 17450

Muffler Heat Shield Brkt.-R.H.

$

$

Not available
