LT-120 (138-666-190) - White Outdoor 38" Lawn Tractor (1988) 38" Deck Lift Assembly Parts Diagram

38" Lawn Tractor

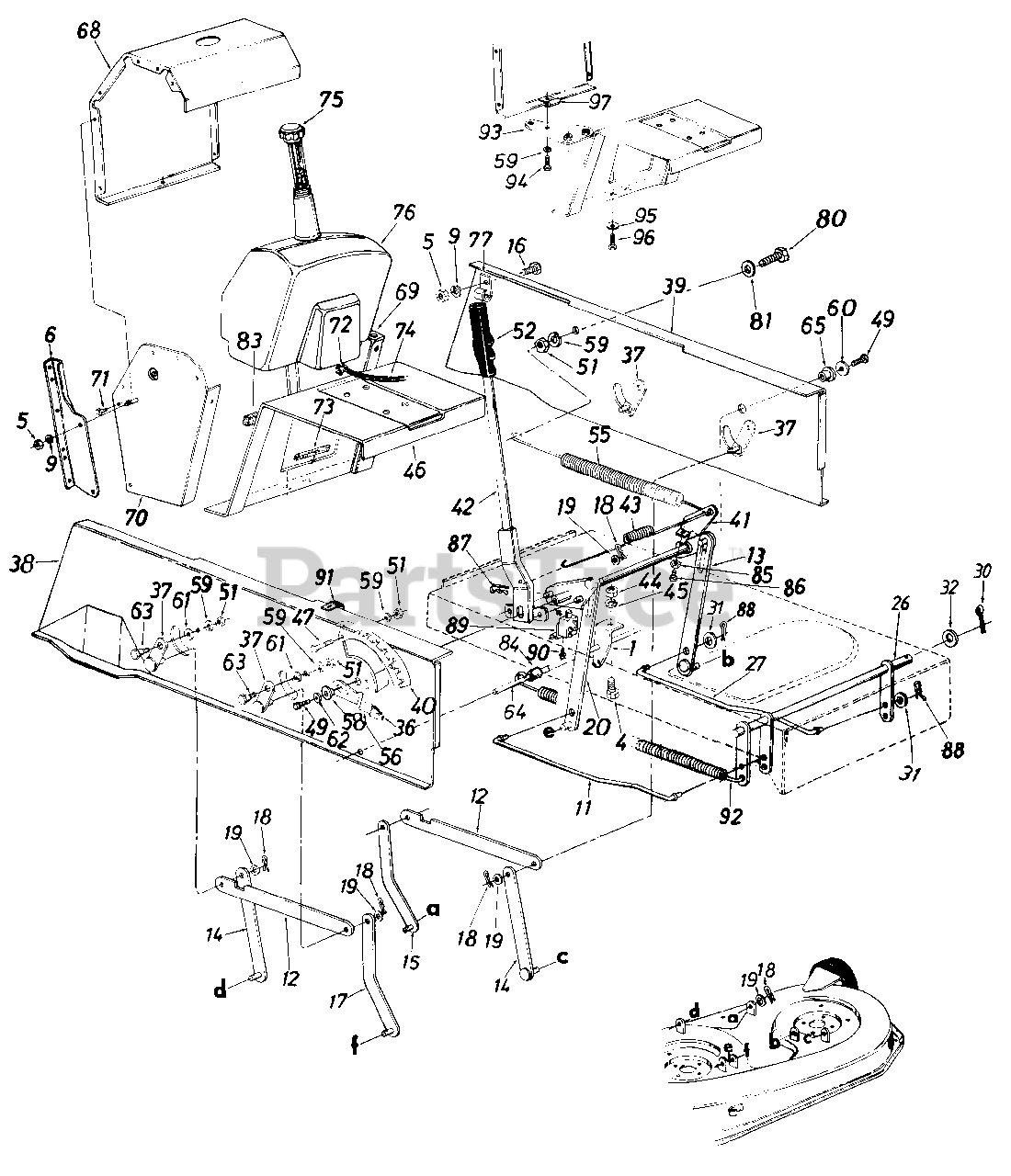

38" Deck Lift Assembly Parts Diagram

  • Title

1

16181

Spring Hanger Bracket

$

$

Not available

4

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62n Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

6

White Outdoor 17078

Mounting Bracket-R.H.

$

$

Not available

17077

Mounting Bracket-L.H.

Note: (Not Shown)

$

$

Not available

9

White Outdoor 736-0119

L-Wash. 5/16" l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

White Outdoor 711-0790

Stabilizer Rod
(Superseded to 711-0790A)

$

$

Not available

12

White Outdoor 09735

Connecting Rod 3/16 x 1 x 12.5

$

$

Not available

13

White Outdoor 14802

Deck Lift Link Ass'y.
(Superseded to 14802A-0637)

$

$

Not available

14

White Outdoor 14804

Deck Hanger Link Ass'y.

$

$

Not available

15

White Outdoor 15925

Deck Hanger Link Ass'y.

Variations

White Outdoor 15925-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

16

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 14800

Deck Hanger Link Ass'y.-
(Superseded to 14800A-0637)

Note: (Dog Leg)

$

$

Not available

18

White Outdoor 714-0101

Inter. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 1 left!

0

19

White Outdoor 736-0160

Fl-Wash. .531 I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

20

White Outdoor 14802

Deck Lift Link Ass'y.
(Superseded to 14802A-0637)

$

$

Not available

26

White Outdoor 16234

Stabilizer Shaft Ass'y.

$

$

Not available

27

White Outdoor 711-0790

Stabilizer Rod
(Superseded to 711-0790A)

$

$

Not available

30

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 736-0117

Fl-Wash .385" 1 D 0 x .620" O.D.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

32

White Outdoor 736-0156

Fl-Wash. 635" l.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 12

0

36

White Outdoor 08540

Knob-Height Adj.

$

$

Not available

37

White Outdoor 09721

Pivot Link Ass'y.

$

$

Not available

38

White Outdoor 14602

Side Panel Upper Frame-R.H.
(Superseded to 14602G-0637)

$

$

Not available

39

White Outdoor 14603

Side Panel Upper Frame-L.H.

$

$

Not available

40

16462

Index Brkt.

Note: (Deck Lift)

$

$

Not available

41

White Outdoor 17154

Lift Shaft Ass'y.

Note: (Incl. Ref. 85 & 86)

$

$

Not available

42

White Outdoor 16465

Lift Handle Brkt. Ass'y.
(Superseded to 753-0548)

$

$

Not available

43

White Outdoor 732-0573

Ext. Spring

$

$

Not available

44

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

45

White Outdoor 736-0329

L-Wash. 1/4" l.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

46

White Outdoor 17226

Hitch Plate

$

$

Not available

47

White Outdoor 710-0118

Hex Bolt 5/16-18 x 75n Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 710-0604

Hex Wash. TT-Tap Scr. 5/16-1 8 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 720-0157

Grip
(Superseded to 920-0233)

$

$

Not available

55

White Outdoor 732-0307

Ext. Spring .99" Dia. x 11.00" Lg.
(Superseded to 932-0307A)

$

$

Not available

56

White Outdoor 732-0412

Deck Lift-Down Stop
(Superseded to 983-0003)

$

$

Not available

58

White Outdoor 748-0176

Flange Brg. 630" l.D.

$9.99

$

In Stock, only 1 left!

0

59

White Outdoor 736-0119

L-Wash. 5/16" l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

60

White Outdoor 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

61

White Outdoor 736-0264

Fl-Wash. 344" l.D. x .62" O.D. x .063

$6.99

$

In Stock, only 2 left!

0

62

White Outdoor 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

63

White Outdoor 738-0140

Shld. Bolt .437" Dia. x .180

$5.99

$

In Stock, Qty 15

0

64

White Outdoor 738-0526

Running Board Rod

$

$

Not available

65

White Outdoor 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

68

White Outdoor 16238

Gas Tank Housing-Main Panel

$

$

Not available

69

White Outdoor 17083

Side Panel-L.H. Gas Tank

Variations

White Outdoor 17083-0637

No Longer Available PANEL-SIDE-LH - POWDER BLACK (0637)

$

$

Not available

$

$

70

White Outdoor 17082

Side Panel-R.H. Gas Tank

$

$

Not available

71

White Outdoor 710-0351

Truss. Mach. B-Tap Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

72

White Outdoor 726-0207

Hose Clamp-.406" Dia.

$

$

Not available

73

White Outdoor 731-0511

Trim Strip-5n Lg.

$3.99

$

Usually ships in 3-6 days

0

74

White Outdoor 751-0173

Gas Line-44" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

75

White Outdoor 751-0226

Gas Tank Cap
(Superseded to 951-0226A)

$57.99

$

In Stock, Qty 9

0

76

White Outdoor 751-0403

Gas Tank

$

$

Not available

77

White Outdoor 726-0175

Hose Clamp

$

$

Not available

80

White Outdoor 710-0959

Hex Bolt 5/16-18 x 1.50" Lg.

$7.49

$

Usually ships in 3-6 days

0

81

White Outdoor 736-0159

Fl-Wash. .344n l.D. x .875" O.D.

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 722-0157

Foam Strip 3/8" x 1-1/8" x 1/2" Lg.

$4.49

$

Usually ships in 3-6 days

0

84

711-0425

Spacer .523" I.D. x 640n O.D. x 1.95 ' Lg.

$

$

Not available

85

White Outdoor 712-3007

Hex Jam Nut 5/16-18 (Grade 5)

$6.99

$

In Stock, only 2 left!

0

86

White Outdoor 710-0602

Hex Wash. Hd. Tap Scr. 5/1 6-1 8 x 1 " Lg.

$4.49

$

In Stock, Qty 20+

0

87

White Outdoor 714-0145

Internal Cotter Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

88

White Outdoor 714-0111

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 13

0

89

White Outdoor 725-0803

Safety Switch
(Superseded to 725-0803B)

$33.99

$

In Stock, only 1 left!

0

90

White Outdoor 710-0351

Truss Mach. Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

91

White Outdoor 726-0175

Clamp

$

$

Not available

92

White Outdoor 732-0530

Ext. Spring 13.25" Lg.

$

$

Not available

93

White Outdoor 17166

Hitch Bar Ass'y.

$

$

Not available

94

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.0" Lg. (Grade 5 )

$3.99

$

In Stock, Qty 20+

0

95

White Outdoor 736-0105

Bell-Wash. . 385" 1.0" x .88"

$4.49

$

In Stock, Qty 20+

0

96

White Outdoor 710-0623

Hex Wash. Tap-Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

97

White Outdoor 726-0211

U-Nut 5/16-18 Thd.

$4.49

$

In Stock, only 1 left!

0
