LT-120 (136-708-190) - White Outdoor 38" Lawn Tractor (1986) 38" Deck Lift Assembly Parts Diagram

38" Lawn Tractor

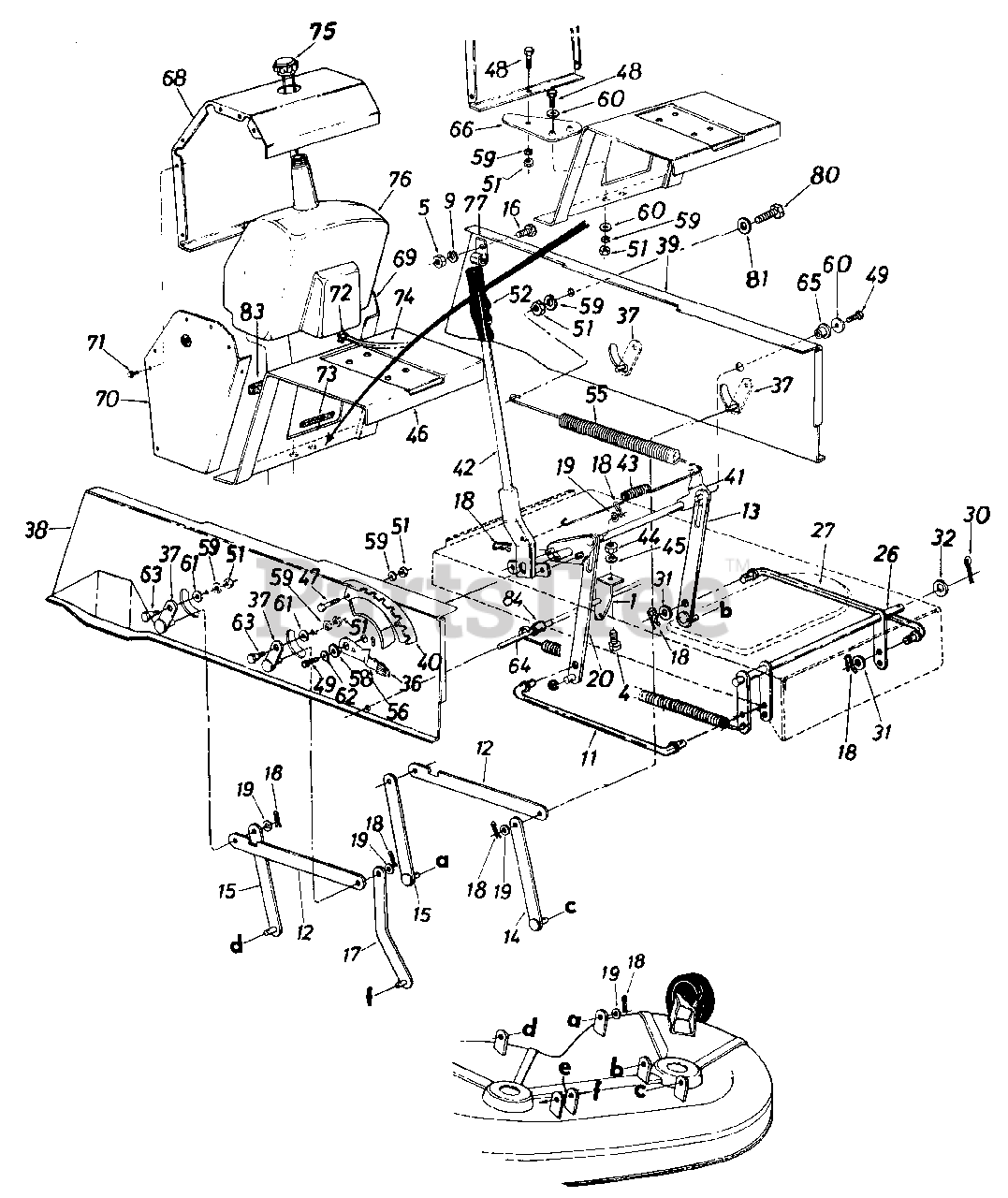

38" Deck Lift Assembly Parts Diagram

  • Title

1

16181

Spring Hanger Bracket

$

$

Not available

4

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

White Outdoor 732-0410

Ext. Spring .99" O.D. x 1 3.25" Lg.

$

$

Not available

9

White Outdoor 736-0119

L-Wash. 5116" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

White Outdoor 711-0738

Stabilizer Rod

$

$

Not available

12

White Outdoor 09735

Connecting Rod 3/16 x 1 x 1 2.5

$

$

Not available

13

White Outdoor 14802

Deck Lift Link Ass'y.
(Superseded to 14802A-0637)

$

$

Not available

14

White Outdoor 14804

Deck Hanger Link Ass'y. Rear L.H.

$

$

Not available

15

White Outdoor 15373

Deck Hanger Link Ass'y.

$

$

Not available

16

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 14800

Deck Hanger Link Ass'y.
(Superseded to 14800A-0637)

Note: (Dog Leg)

$

$

Not available

18

White Outdoor 714-0101

Inter. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, only 2 left!

0

19

White Outdoor 736-0160

Fl-Wash. .531 I.D. x .93"

$4.49

$

In Stock, only 2 left!

0

20

White Outdoor 14802

Deck Lift Link Ass'y.
(Superseded to 14802A-0637)

$

$

Not available

26

White Outdoor 16234

Stabilizer Shaft Ass'y.

$

$

Not available

27

White Outdoor 711-0738

Stabilizer Rod

$

$

Not available

30

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 736-0117

Fl-Wash. .385" I.D. x .620" O.D.
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

32

White Outdoor 736-0156

Fl-Wash. .635" I.D. x 1.12" O.D.

$4.49

$

In Stock, Qty 12

0

36

White Outdoor 08540

Knob Height Adj.

$

$

Not available

37

White Outdoor 09721

Pivot Link Ass'y.

$

$

Not available

38

White Outdoor 14602

Side Panel Upper Frame R. H .
(Superseded to 14602G-0637)

$

$

Not available

39

White Outdoor 14603

Side Panel Upper Frame L. H .

$

$

Not available

40

16462

Index Brkt.

Note: (Deck Lift)

$

$

Not available

41

White Outdoor 16463

Lift Shaft Ass'y.

$

$

Not available

42

White Outdoor 16465

Lift Handle Brkt. Ass'y.
(Superseded to 753-0548)

$

$

Not available

43

White Outdoor 732-0498

Ext. Spring .56" I.D. x 32 Coils
(Superseded to 932-0498)

$

$

Not available

44

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

45

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

46

16223

Hitch Plate

$

$

Not available

47

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

48

UNKNOWN

$

$

Not available

49

White Outdoor 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 712-0267

Hex Nut 5/16-18 Thd*
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 720-0157

Grip
(Superseded to 920-0233)

$

$

Not available

55

White Outdoor 732-0307

Ext. Spring .99" Dia. x 11.00" Lg.
(Superseded to 932-0307A)

$

$

Not available

56

White Outdoor 732-0412

Deck Lift Down Stop
(Superseded to 983-0003)

$

$

Not available

58

White Outdoor 748-0176

Flange Brg. .630" I.D.

$9.99

$

In Stock, only 1 left!

0

59

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

60

White Outdoor 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

61

White Outdoor 736-0264

Fl-Wash. .344" I.D. x .62" O.D. x .063

$6.99

$

In Stock, only 1 left!

0

62

White Outdoor 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

63

White Outdoor 738-0140

Shld. Bolt .437" Dia. x .180

$5.99

$

In Stock, Qty 15

0

64

White Outdoor 738-0526

Running Board Rod

$

$

Not available

65

White Outdoor 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

66

White Outdoor 16315

Hitch Bar

$

$

Not available

68

White Outdoor 16238

Gas Tank Housing Main Panel

$

$

Not available

69

White Outdoor 16239

Side Panel L.H. Gas Tank

$

$

Not available

70

16204

Side Panel R.H. Gas Tank

$

$

Not available

71

White Outdoor 710-0351

Truss. Mach. B-Tap Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

72

White Outdoor 726-0207

Hose Clamp .406" Dia.

$

$

Not available

73

White Outdoor 731-0511

Trim Strip 5" Lg.

$3.99

$

Usually ships in 3-6 days

0

74

White Outdoor 751-0173

Gas Line 44" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

75

White Outdoor 751-0226

Gas Tank Cap
(Superseded to 951-0226A)

$57.99

$

In Stock, Qty 10

0

76

White Outdoor 751-0403

Gas Tank

$

$

Not available

77

White Outdoor 726-0175

Hose Clamp

$

$

Not available

80

White Outdoor 710-0959

Hex Bolt 5/16-18 x 1.50" Lg.

$7.49

$

Usually ships in 3-6 days

0

81

White Outdoor 736-0159

Fl-Wash. .344" I.D. x .875" O.D.

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 722-0157

Foam Strip 3/8" x 1-1/8" x 11/2" Lg.

$4.49

$

Usually ships in 3-6 days

0

84

711-0425

Spacer .523" I.D. x .640" O.D. x 1.95" Lg.

$

$

Not available
