LT-12 (138-656A190) - White Outdoor 38" Lawn Tractor (1988) Body Assembly Parts Diagram

38" Lawn Tractor

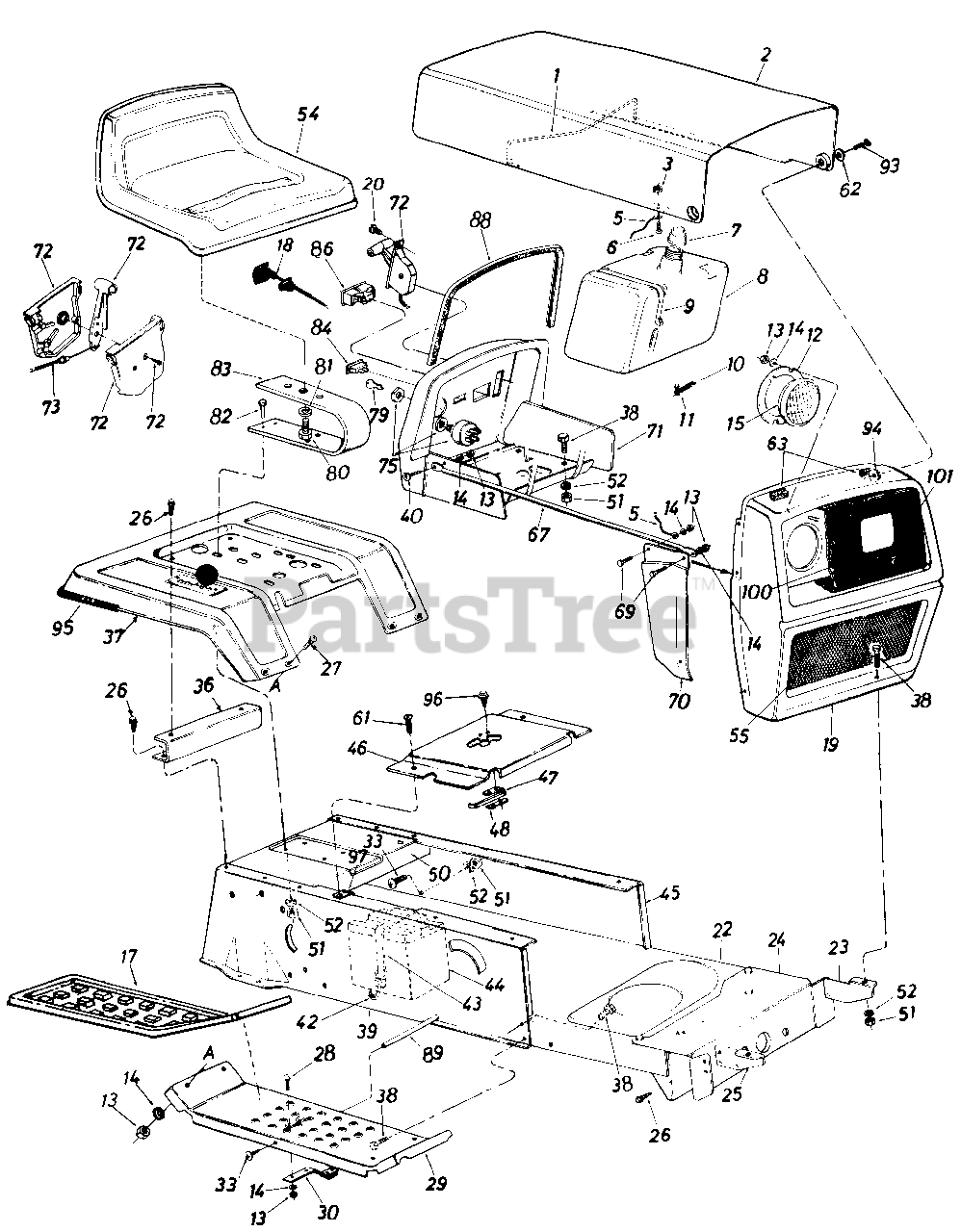

Body Assembly Parts Diagram

  • Title

1

White Outdoor 732-0414

Hood Spring

$

$

Not available

2

White Outdoor 16646

Hood

Variations

White Outdoor 16646-0499

No Longer Available HOOD - CUB BEIGE (0499)

$

$

Not available

White Outdoor 16646-0629

No Longer Available HOOD - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 16646-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

3

White Outdoor 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

Usually ships in 3-6 days

0

5

White Outdoor 723-0302

Hood Stop 7" Lg.

$12.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0473

Truss Hd. Scr. #10-24 x '/2*

$4.49

$

In Stock, only 2 left!

0

7

White Outdoor 723-0333

Fuel Cap Gauge
(Superseded to 923-0333)

$

$

Not available

8

White Outdoor 751-0172

Fuel Tank
(Superseded to 753-0503)

$

$

Not available

9

White Outdoor 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

10

White Outdoor 751-0173

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

11

White Outdoor 726-0207

Hose Clamp

$

$

Not available

12

White Outdoor 09960

Headlight Retainer

$

$

Not available

13

White Outdoor 712-0287

Hex Nut l, ?0 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

White Outdoor 736-0329

L-Wash. l.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

15

White Outdoor 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

17

White Outdoor 731-0753

Foot Pad

$

$

Not available

18

White Outdoor 746-0615

Choke Control 29" Lg.
(Superseded to 946-0615A)

$47.99

$

Usually ships in 3-6 days

0

19

White Outdoor 14787

Grille Ass'y.

$

$

Not available

20

White Outdoor 710-0779

Truss Mach. AB-Tap Scr. #10 x .50" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

22

White Outdoor 15930

Lower Frame

$

$

Not available

23

White Outdoor 13863

Grille Mount Brkt.-L.H.

$

$

Not available

24

14619

Front Pivot Brkt.

$

$

Not available

25

White Outdoor 13862

Grille Mount Brkt.-R.H.

$

$

Not available

26

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 710-0167

Carriage Bolt 1/4-20 x 2.0"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

28

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

29

14604

Running Board

Note: (R.H. & L.H.)

$

$

Not available

30

White Outdoor 761-0168

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

33

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

36

15848

Fender Mount Brace

$

$

Not available

37

16199

Fender

$

$

Not available

38

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 14602

R.H. Side Frame
(Superseded to 14602G-0637)

$

$

Not available

40

White Outdoor 710-0258

Hex Bolt '/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

42

White Outdoor 747-0475

Battery Strap Hook

$

$

Not available

43

White Outdoor 731-0718

Battery Hold Down Strap

$

$

Not available

44

White Outdoor 725-0514

12-V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

45

White Outdoor 14603

L.H. Side Frame

$

$

Not available

46

16433

Shift Cover

$

$

Not available

47

White Outdoor 725-0759

Reverse Safety Switch
(Superseded to 753-0579)

$

$

Not available

48

White Outdoor 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

50

14607

Hitch Plate

$

$

Not available

51

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

54

White Outdoor 757-0318

Seat Ass'y.
(Superseded to 957-0318)

$

$

Not available

55

White Outdoor 731-0881

Grille Insert

$

$

Not available

61

White Outdoor 710-0351

Truss Mach. Tap Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

62

White Outdoor 736-0413

Washer .39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

63

White Outdoor 722-0157

Foam Strip 3/8 x 1-1/8 x 1-1/2

$4.49

$

Usually ships in 3-6 days

0

67

White Outdoor 749-0517

Grille Support Rod

Note: (R.H. & L. H .)

$

$

Not available

69

White Outdoor 710-0255

Truss Hd. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

70

14748

R.H.-Grille Side Panel

$

$

Not available

14749

L.H.-Grille Side Panel

$

$

Not available

71

16184

Dash Panel Ass'y.

$

$

Not available

72

White Outdoor 831-0823

Throttle Control Box Ass'y.
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

73

White Outdoor 746-0501

Throttle Control Wire

$17.99

$

In Stock, only 1 left!

0

75

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

79

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

80

White Outdoor 710-0865

Hex Bolt l/2-13 x 1.0" Lg.

$

$

Not available

81

White Outdoor 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, only 2 left!

0

82

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.0"

$3.99

$

In Stock, Qty 20+

0

83

White Outdoor 732-0458

Seat Spring 5.5" High

$

$

Not available

84

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

86

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

88

White Outdoor 731-0511

Molding Strip 27" Lg.

$3.99

$

Usually ships in 3-6 days

0

89

White Outdoor 738-0526

Running Board Rod

$

$

Not available

93

White Outdoor 738-0724

Shld. Bolt .375 Dia. x .125
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 8

0

94

White Outdoor 712-0380

Hex L-Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

95

White Outdoor 731-0511

Trim Strip-81"

$3.99

$

Usually ships in 3-6 days

0

96

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

97

White Outdoor 726-0139

Speed Nut #10Z

$6.99

$

Usually ships in 3-6 days

0

100

White Outdoor 731-0465

Bezel

$

$

Not available

101

White Outdoor 710-0425

Truss Scr. #10-24 x .62" Lg.

$4.99

$

Usually ships in 3-6 days

0
