LT-12 (138-656-190) - White Outdoor 38" Lawn Tractor (1989) Speed Selector Assembly Parts Diagram

38" Lawn Tractor

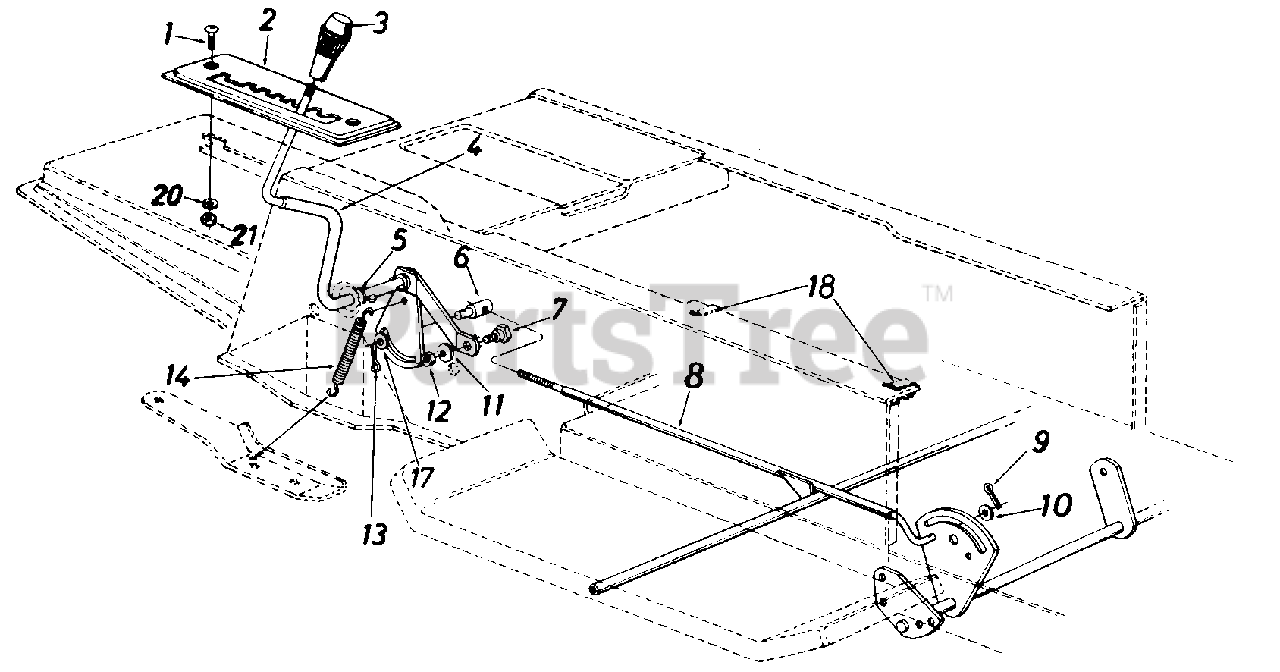

Speed Selector Assembly Parts Diagram

  • Title

1

White Outdoor 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 16194

7-Speed Selector Plate

Variations

White Outdoor 16194-0637

PLATE-7 SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

4

White Outdoor 16192

Speed Selector Cam Ass'y.
(Superseded to 16192A)

$

$

Not available

5

White Outdoor 736-0192

Flat Washer .53" I.D. x .93"

$4.49

$

In Stock, Qty 18

0

6

White Outdoor 711-0198

Ferrule 3/8-24 x .37" Dia.
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

7

White Outdoor 738-0155

Shoulder Bolt .435" Dia. x .160
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

8

White Outdoor 16355A

Speed Control Rod Ass'y.

$

$

Not available

9

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

10

White Outdoor 736-0226

Fl-Wash. .469" I.D. x .88"
(Superseded to 936-0226)

$3.99

$

Usually ships in 3-6 days

0

11

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

13

White Outdoor 714-0507

Cotter Pin 3/32 Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

14

White Outdoor 732-0303

Spring
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 12

0

17

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 7

0

18

White Outdoor 726-0235

Speed Clip

$

$

Not available

20

White Outdoor 736-0329

Lock Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

21

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0
