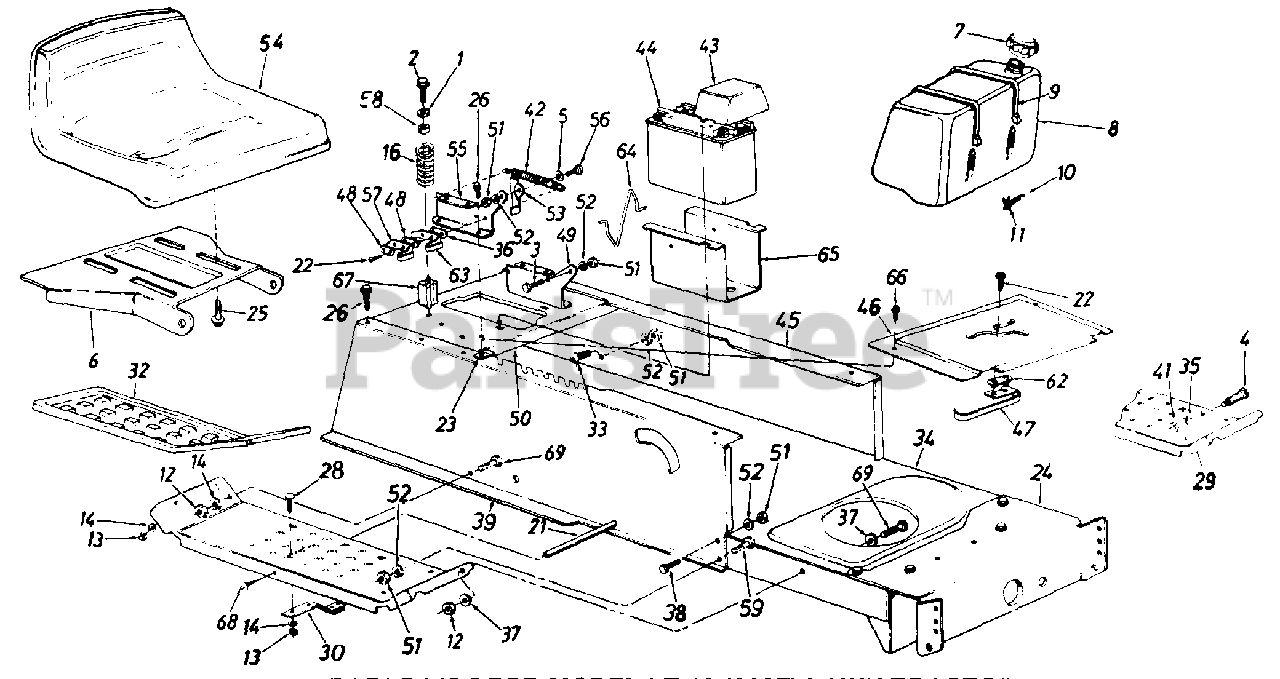

LT-12 (132-666F190) - White Outdoor 38" Lawn Tractor (1992) Lower Frame, Running Board, Gas Tank, Battery And Seat Parts Diagram

38" Lawn Tractor

Lower Frame, Running Board, Gas Tank, Battery And Seat Parts Diagram

  • Title

1

White Outdoor 736-0159

Fl-Wash. .344" I.D. x .875"

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-1208

Hex Wash. Hd. Tap Scr. 5/16-18 x 3.25" Lg.

Note: Code: N notates a new part (not previously existing).

$6.99

$

In Stock, only 2 left!

0

3

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

4

White Outdoor 738-0145

Shld. Bolt .50" Dia. x .84"

$6.99

$

Usually ships in 3-6 days

0

5

White Outdoor 736-0141

Spr. Wash. .445" I.D. x .75
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

6

White Outdoor 15607D

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

7

White Outdoor 751-3071

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

8

White Outdoor 751-0553

Fuel Tank
(Superseded to 751-0555B)

$

$

Not available

9

White Outdoor 726-0209

Tie Strap
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

10

White Outdoor 751-0535-15

Fuel Line
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

11

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

13

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

16

White Outdoor 732-0672

Compression Spring
(Superseded to 732-0735A)

$29.99

$

In Stock, Qty 5

0

21

White Outdoor 738-0526

Running Board Rod

$

$

Not available

22

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 726-0139

Speed Nut #10Z

$6.99

$

Usually ships in 3-6 days

0

24

White Outdoor 17621

Front Pivot Brkt.
(Superseded to 783-0041C)

$77.99

$

Usually ships in 3-6 days

0

25

White Outdoor 710-0623

Hex Tap Scr. 3/8-16 x .75"

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 17770

Running Board (R.H. & L.H.)
(Superseded to 17770H)

$

$

Not available

30

White Outdoor 761-0168A

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

32

White Outdoor 731-0911

Rubber Foot Pad - L.H.

$

$

Not available

White Outdoor 731-0912

Rubber Foot Pad - R.H.

$

$

Not available

33

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

34

White Outdoor 17620C

Lower Frame

Note: Code: N notates a new part (not previously existing).

$

$

Not available

35

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

36

White Outdoor 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

37

White Outdoor 736-0463

Fl-Wash. .25" I.D. x .625" O.D.

$4.49

$

In Stock, Qty 12

0

38

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 17622B

Upper Frame - R.H.
(Superseded to 783-0042D)

Note: Code 483/N

$

$

Not available

41

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

42

White Outdoor 732-0581B

Extension Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

43

White Outdoor 731-1200

Battery Cover

$

$

Not available

44

White Outdoor 725-1633

12-V Battery
(Superseded to 753-0607)

Note: Code: N notates a new part (not previously existing).

$170.99

$

Usually ships in 3-6 days

0

45

White Outdoor 17623

Upper Frame - L.H.
(Superseded to 783-0043B)

Note: Code 483

$

$

Not available

46

White Outdoor 17286A

Shift Cover
(Superseded to 17286B-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 17286A-0637

Shift Cover - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

47

White Outdoor 725-1643

Reverse Safety Switch

Note: Code: N notates a new part (not previously existing).

$10.99

$

In Stock, only 1 left!

0

48

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

49

White Outdoor 17951

Seat Pivot Brkt. Support - L.H.
(Superseded to 17951A-0637)

Variations

White Outdoor 17951-0637

Seat Support Bracket, LH - POWDER BLACK (0637)

$26.99

$

In Stock, only 1 left!

0

$26.99

$

In Stock, only 1 left!

0

50

White Outdoor 17953

Hitch Plate

Variations

White Outdoor 17953-0637

No Longer Available PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

51

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

54

White Outdoor 757-0338

Seat 10-5/8" High
(Superseded to 957-0360A)

$

$

Not available

55

White Outdoor 17950

Seat Pivot Brkt. Support - R.H.
(Superseded to 17950A-0637)

Variations

White Outdoor 17950-0637

Seat Support Bracket, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

56

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

57

White Outdoor 725-1303

Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

58

White Outdoor 722-0160

Bushing

$

$

Not available

59

White Outdoor 710-0650

Hex Wash. TT-Tap Scr. 5/16-18 x 7/8" Lg.

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

63

White Outdoor 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

64

White Outdoor 732-0674

Battery Tray Clip

$

$

Not available

65

White Outdoor 17952

Battery Tray
(Superseded to 17952A-0637)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

66

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

67

White Outdoor 748-0347

Spring Spacer
(Superseded to 748-0347A)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

68

White Outdoor 710-1221

Pan Hd.Cutting Scr. 5/16-18 x .75" Lg.

Note: Code: N notates a new part (not previously existing).

$

$

Not available

69

White Outdoor 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0
