LT-12 (132-666F190) - White Outdoor 38" Lawn Tractor (1992) Drive System and Lower Frame Parts Diagram

38" Lawn Tractor

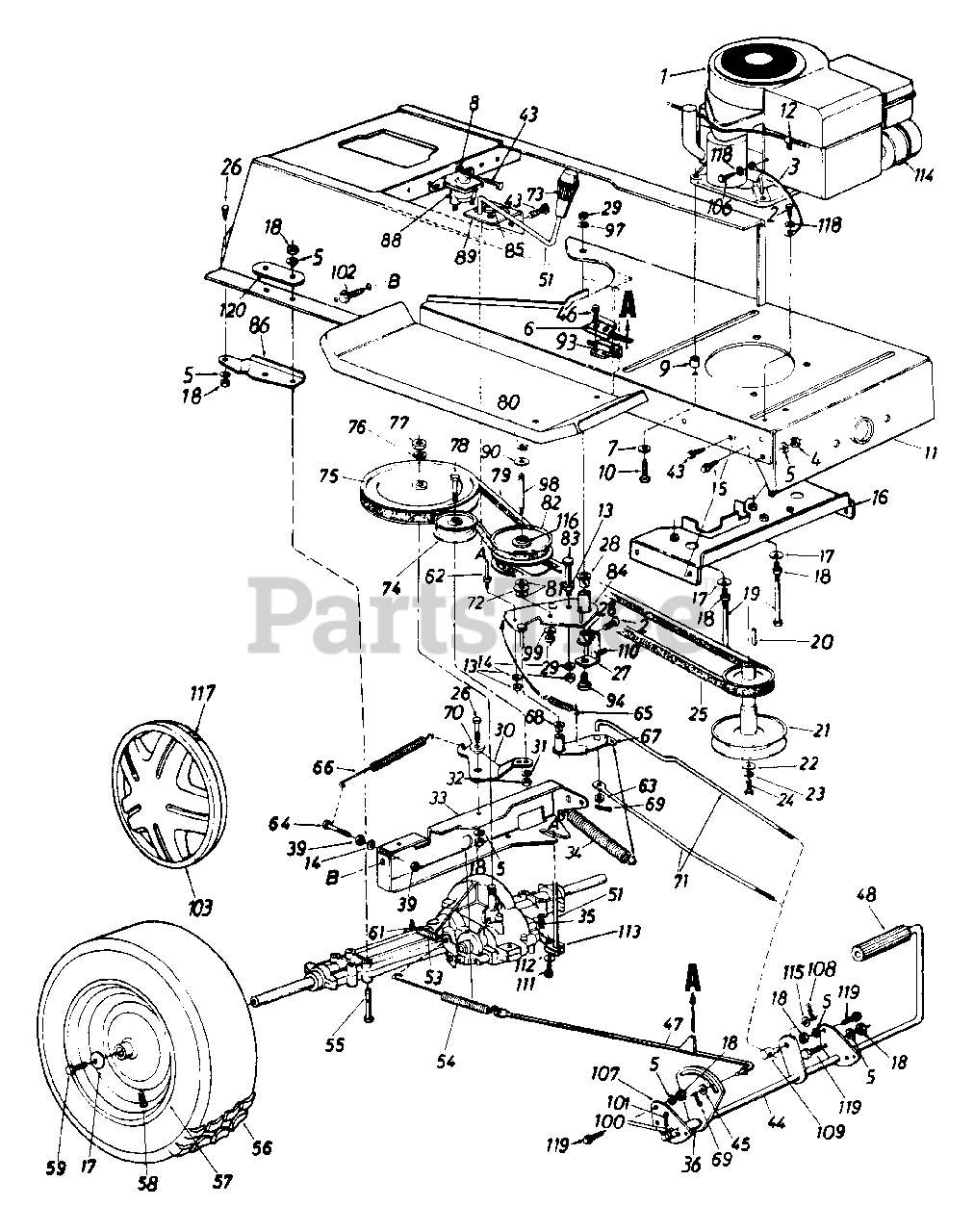

Drive System and Lower Frame Parts Diagram

  • Title

1

Engine

$

$

Not available

2

White Outdoor 710-0726

Hex Wash. AB-Tap Scr. 5/16" x .75"

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 725-0980

Electric Ground Wire

$

$

Not available

4

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

5

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

7

White Outdoor 736-0247

Fl-Wash. .406" I.D. x 1.25"

$9.49

$

In Stock, Qty 16

0

8

White Outdoor 736-0222

Ext. L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

9

750-7777

Spacer

$

$

Not available

10

White Outdoor 710-1007

Hex L-Wash. Tap Scr. 3/8-16 x 1.5" Lg.

$6.49

$

In Stock, only 1 left!

0

11

White Outdoor 17620C

Lower Frame Ass'y.

Note: Code: N notates a new part (not previously existing).

$

$

Not available

12

White Outdoor 726-0235

Speed Clip

$

$

Not available

13

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

14

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

White Outdoor 710-1012

Rib Neck Bolt 5/16-24 x .84" Lg.

$4.49

$

Usually ships in 3-6 days

0

16

White Outdoor 17893

Belt Guard Brkt. Ass'y.
(Superseded to 17893A-0637)

$

$

Not available

17

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

19

White Outdoor 710-0190

Hex Bolt 5/16-18 x 4.0"

$7.99

$

Usually ships in 3-6 days

0

20

White Outdoor 714-0114

Sq. Key 1/4" x 1/4" x 2.00"
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

21

White Outdoor 756-0488

Engine Pulley
(Superseded to 753-0635)

$109.99

$

In Stock, only 1 left!

0

22

White Outdoor 736-0322

Fl-Wash. 7/16" I.D. x 1.25"

$9.49

$

In Stock, Qty 8

0

23

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

24

White Outdoor 710-0757

Hex Bolt 7/16-20 x 1.50" Lg.

$9.99

$

In Stock, only 1 left!

0

25

White Outdoor 754-0280

Variable-Speed Belt
(Superseded to 954-0280A)

$45.99

$

In Stock, only 2 left!

0

26

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 17963

Bearing Shaft Bracket Ass'y.

$

$

Not available

28

White Outdoor 741-0591

Flanged Nyliner Brg. .63" I D. x .6" Lg.

Note: Code: N notates a new part (not previously existing).

$4.49

$

In Stock, Qty 9

0

29

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

30

White Outdoor 17643

Idler Bracket
(Superseded to 17643-0637)

Variations

White Outdoor 17643-0637

Idler Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 4 left!

0

$10.99

$

In Stock, only 4 left!

0

31

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

33

White Outdoor 17629A

Transaxle Support Brkt.
(Superseded to 17629A-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 17629A-0637

Trans Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 732-0556

Ext. Spring .94" O.D. x 7.58"
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

35

White Outdoor 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

36

White Outdoor 750-0802

Spacer .63" I D.

$6.99

$

Usually ships in 3-6 days

0

39

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

43

White Outdoor 710-0599

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 17715A

Clutch/Brake Pedal Ass'y.

$

$

Not available

45

White Outdoor 736-0117

Fl-Wash.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

46

White Outdoor 710-0351

Truss Mach. Scr. B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

47

White Outdoor 17686A

Brake Rod Ass'y.

Note: Code: N notates a new part (not previously existing).

$

$

Not available

48

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

51

White Outdoor 17705

Shift Lever Ass'y.

$

$

Not available

53

White Outdoor 732-0264

Ext. Spring .38" O.D. x 2.5"
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

54

White Outdoor 732-0413

Ext. Spring 7.08"
(Superseded to 932-0413)

$12.99

$

In Stock, only 4 left!

0

55

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

56

White Outdoor 734-1675

Wheel Ass'y. Comp.

Variations

White Outdoor 734-1675-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1675-0911

WHL ASSY 20 X 8 - Carlisle Gray (0911)

$447.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1675-0945

WHL ASSY 20 X 8 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1675-0912

WHL ASSY 20 X 8 - Dico Gray (0912)

$

$

Not available

White Outdoor 734-1675-0914

WHL ASSY 20 X 8 - Cheng Gray (0914)

$

$

Not available

White Outdoor 734-1675-0931

WHL ASSY 20 X 8 - Carlisle Beige (0931)

$

$

Not available

White Outdoor 734-1675-0941

WHEEL ASSY W/TIRE - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 734-1675-0944

No Longer Available WHEEL ASSY W/TIRE - Cheng Yellow (0944)

$

$

Not available

White Outdoor 734-1675-0981

WHEEL ASSY W/TIRE - Carlisle Green (0981)

$

$

Not available

White Outdoor 734-1675-0985

WHEEL ASSY 20X8X8 - Duro Green (0985)

$

$

Not available

$420.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1596

Tire Only

Variations

White Outdoor 734-1596-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1596-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1596-0906

TIRE 20X8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1596-0901

TIRE 20 X 8 - Carlisle (0901)

$

$

Not available

White Outdoor 734-1596-0904

TIRE 20 X 8 CHENG - Cheng (0904)

$

$

Not available

$200.99

$

Usually ships in 3-6 days

0

57

White Outdoor 734-0603A

Wheel Rim Only
(Superseded to 634-04369)

$134.99

$

Usually ships in 3-6 days

0

58

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Service Only)

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 710-0627

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

61

White Outdoor 732-0454

Brake Return Spring Anchor
(Superseded to 932-0722A)

$12.99

$

In Stock, only 4 left!

0

62

White Outdoor 711-0768

Belt Guard Pin 1/4-20 Thd.
(Superseded to 911-1000)

$10.99

$

In Stock, only 2 left!

0

63

White Outdoor 736-0275

Fl-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

64

White Outdoor 710-0428

Hex Bolt 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

65

White Outdoor 732-0568

Ext. Spring
(Superseded to 932-0568)

$

$

Not available

66

White Outdoor 732-0384

Ext. Spring .62" O.D. x 6.12"
(Superseded to 932-0384)

$14.99

$

In Stock, only 4 left!

0

67

White Outdoor 16554A

Variable Speed Torque Brkt. Ass'y.
(Superseded to 16554A-0637)

Variations

White Outdoor 16554A-0637

Torque Bracket Assembly - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

68

White Outdoor 741-0419

Flanged Bearing

$

$

Not available

69

White Outdoor 714-0111

Cotter Pin 3/32" Dia.

$4.99

$

In Stock, Qty 13

0

70

White Outdoor 748-0234

Shoulder Spacer .27" Lg.

$4.49

$

Usually ships in 3-6 days

0

71

White Outdoor 747-0530A

Speed Control Link

$14.99

$

Usually ships in 3-6 days

0

747-0512

Speed Control Link

Note: (30" Deck Only)

$

$

Not available

72

White Outdoor 741-0405

Truss Bearing .56 Dia. x 1.25"
(Superseded to 941-0405)

$

$

Not available

73

White Outdoor 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

74

White Outdoor 756-0437

Fl-Idler Pulley 3.25"
(Superseded to 756-0643A)

$40.99

$

In Stock, Qty 15

0

75

White Outdoor 656-0004

"V"-Pulley

$120.99

$

In Stock, only 1 left!

0

76

White Outdoor 736-0427

Bell-Wash. .56" I.D. x 1.125"
(Superseded to 936-0427)

$

$

Not available

77

White Outdoor 712-3035

Hex Jam Nut 9/16-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

78

White Outdoor 710-0539

Hex Bolt 3/8-24 x 1.75" Lg.

$4.99

$

In Stock, Qty 11

0

79

White Outdoor 754-0370

Variable Speed Belt
(Superseded to 954-0370)

$41.99

$

Usually ships in 3-6 days

0

80

White Outdoor 716-0114

Snap Ring .56" Dia.
(Superseded to 916-0114)

$6.99

$

In Stock, only 3 left!

0

81

White Outdoor 736-0355

Fl-Wash.

$4.49

$

In Stock, Qty 12

0

82

White Outdoor 717-0800A

Variable Speed Pulley Ass'y. 5" O.D.
(Superseded to 917-0800A)

Note: Code: N notates a new part (not previously existing).

$245.99

$

In Stock, only 3 left!

0

83

White Outdoor 710-1223

Hex Bolt 1/4-20 x 3.5" Lg.
(Superseded to 02000730)

$4.99

$

Usually ships in 3-6 days

0

84

White Outdoor 16354B

Variable Speed Brkt. Ass'y.

Variations

White Outdoor 16354B-0637

BRACKET ASSY-VAR S - POWDER BLACK (0637)

$

$

Not available

$

$

85

White Outdoor 732-0525

Comp. Spring - Clip

$10.99

$

In Stock, only 1 left!

0

86

White Outdoor 17668

Axle Support Brkt. - R.H.
(Superseded to 17668A-0637)

Variations

White Outdoor 17668-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 17669

Axle Support Brkt. - L.H.
(Superseded to 17669A-0637)

Note: (Not shown)

Variations

White Outdoor 17669-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

88

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

89

White Outdoor 17630

Shift Lever Bracket
(Superseded to 17630A-0637)

Variations

White Outdoor 17630-0637

Shift Lever Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

90

White Outdoor 736-0414

Teflon Washer .565" I.D.

$4.49

$

In Stock, only 4 left!

0

93

White Outdoor 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

94

White Outdoor 738-0755

Shld. Bolt 3/8-24 x 3.12" Lg.
(Superseded to 938-0755)

$14.99

$

Usually ships in 3-6 days

0

97

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

98

White Outdoor 738-0569

Shaft .56" Dia. x 3.875" Lg.
(Superseded to 938-0569)

$33.99

$

In Stock, only 1 left!

0

99

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.12"

$3.99

$

In Stock, Qty 16

0

100

White Outdoor 736-0256

Fl-Wash. .64" I.D. x .94"
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

101

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

102

White Outdoor 710-0604

Hex Wash. Hd. Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

103

734-1157

Hub Cap

Note: Code: N notates a new part (not previously existing).

$

$

Not available

106

White Outdoor 710-0323

Pan Hd. Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

107

White Outdoor 17860

Pedal Bracket
(Superseded to 17860-0637)

Variations

White Outdoor 17860-0637

Pedal Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

108

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 20+

0

109

White Outdoor 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

110

White Outdoor 710-0376

Hex Bolt 5/1 6-18 x 1.0" Lg. - (Grade 5)

$3.99

$

In Stock, only 4 left!

0

111

White Outdoor 710-0195

Hex Bolt 1/4-28 x .50" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

112

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

113

White Outdoor 17707

Shift Lever Link Ass'y.

$

$

Not available

114

Muffler

Note: (Refer to Style Sheet)

$

$

Not available

115

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 7

0

116

White Outdoor 741-0404

Needle Brgs.

$40.99

$

In Stock, only 2 left!

0

117

White Outdoor 727-0425A

Spring Clip
(Superseded to 927-0425A)

Note: (Used w/Ref. #103)

$

$

Not available

118

White Outdoor 736-0607

External L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

119

White Outdoor 710-0650

Hex Wash. TT-Tap Scr. 5/16-18 x .75"

$3.99

$

In Stock, Qty 20+

0

120

White Outdoor 17840

Transaxle Mtg. Brkt.
(Superseded to 17840-0637)

Variations

White Outdoor 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0
