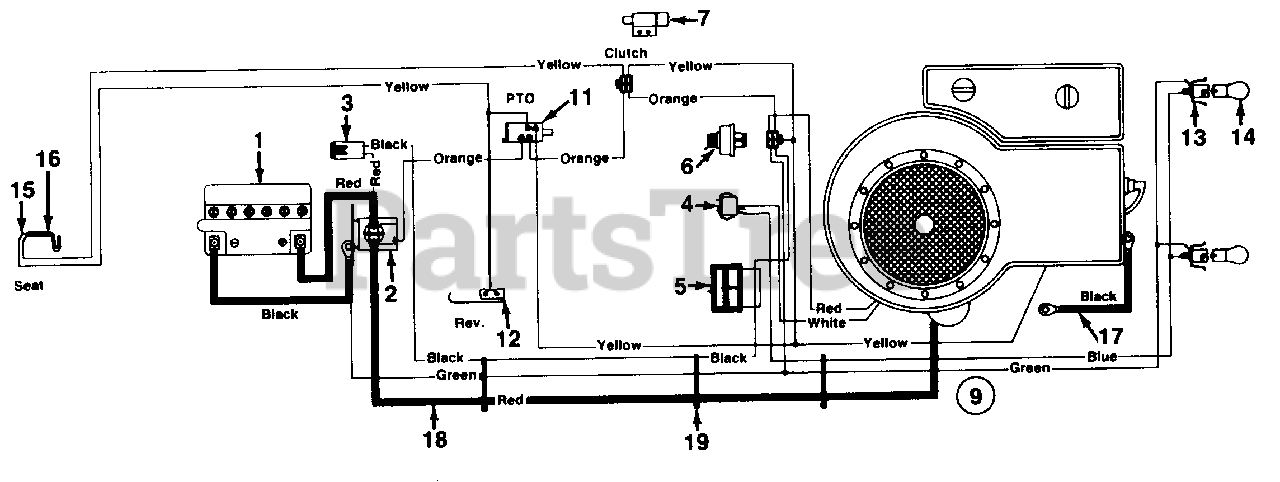

LT-12 (131-656F190) - White Outdoor 38" Lawn Tractor (1991) Electrical System Parts Diagram

38" Lawn Tractor

Electrical System Parts Diagram

  • Title

1

White Outdoor 725-0514A

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

2

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

3

White Outdoor 725-1625

Fuse 7.5 Amp.

$8.49

$

Usually ships in 3-6 days

0

4

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

5

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

6

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

7

White Outdoor 725-3169A

Safety Switch
(Superseded to 925-04039)

Note: (Clutch)

$24.99

$

In Stock, Qty 8

0

9

White Outdoor 629-0025

Wire Harness

Note: (B&S)

$

$

Not available

White Outdoor 629-0048

Wire Harness

Note: (Tec.)

$

$

Not available

11

White Outdoor 725-0803C

Safety Switch
(Superseded to 725-0803B)

Note: (Deck)

$33.99

$

In Stock, only 1 left!

0

12

White Outdoor 725-0759

Safety Switch
(Superseded to 753-0579)

Note: (Reverse)

$

$

Not available

13

White Outdoor 725-1058A

Socket
(Superseded to 925-1058A)

$

$

Not available

14

White Outdoor 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

15

White Outdoor 725-1303

Safety-Switch
(Superseded to 925-1303)

Note: (Seat)

$6.49

$

In Stock, Qty 7

0

16

White Outdoor 725-1439

Safety Switch

Note: (Seat)

$8.49

$

In Stock, Qty 10

0

17

White Outdoor 725-0980

Ground Wire 7.5" Lg.

$

$

Not available

18

White Outdoor 725-1081

Electric Wire
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

19

White Outdoor 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0
