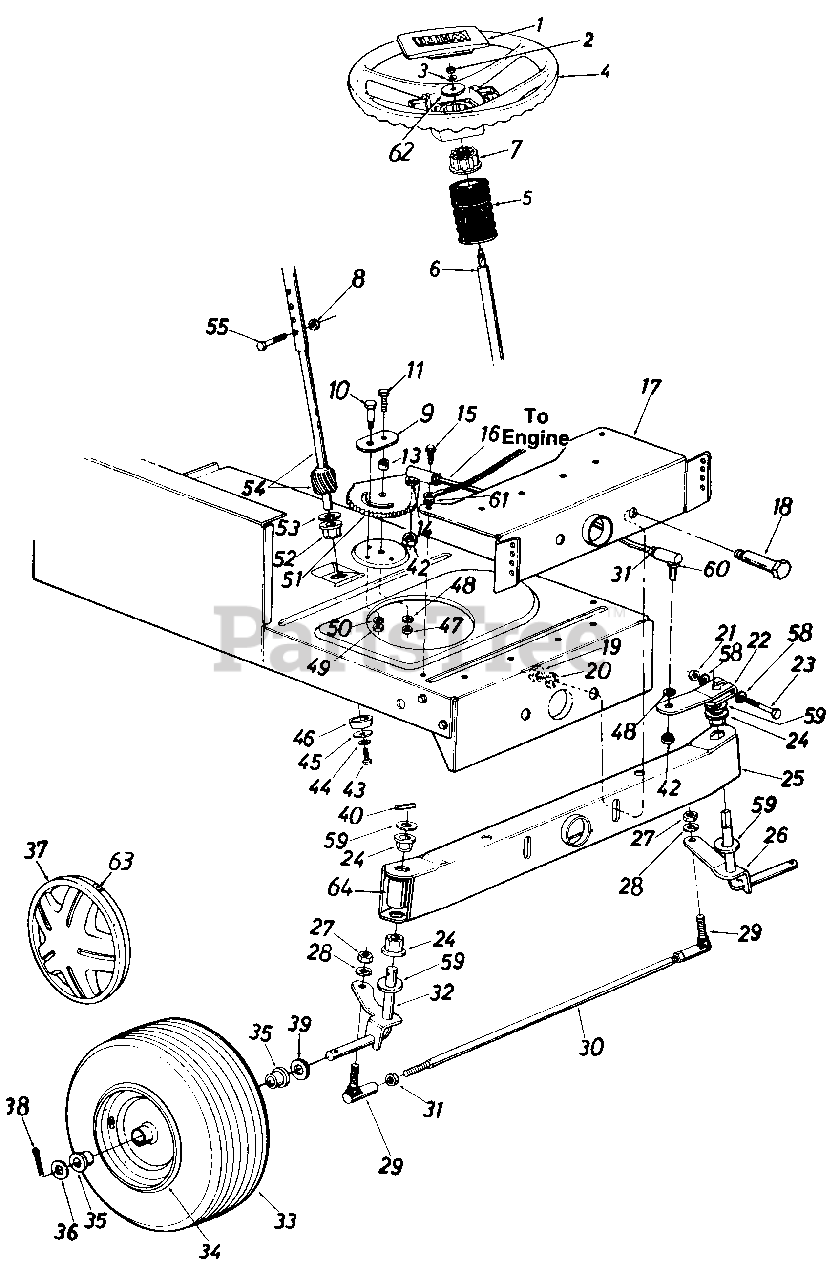

LT-12 (130-656F190) - White Outdoor 38" Lawn Tractor (1990) Steering Assembly Parts Diagram

38" Lawn Tractor

Steering Assembly Parts Diagram

  • Title

1

White Outdoor 731-1039

Steering Wheel Insert

$

$

Not available

2

White Outdoor 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

3

White Outdoor 736-0242

Belleville Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 731-0971

Steering Wheel

$

$

Not available

5

White Outdoor 731-0954

Steering Bellow
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

6

White Outdoor 16512

Steering Column Ass'y.

$

$

Not available

7

White Outdoor 717-0935

Steering Wheel Adapter

$

$

Not available

8

White Outdoor 712-0324

Hex Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

9

White Outdoor 17198

Retainer Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, only 3 left!

0

10

White Outdoor 738-0141

Shoulder Bclt .437" Dia. x .35" Lg. 5/16-1& Thd.
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

11

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.0" Lg. (Grade 5)
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 5

0

13

White Outdoor 750-0535

Spacer .380" I.D. x .625" O.D. x .227"
(Superseded to 950-0535)

$4.49

$

In Stock, only 4 left!

0

14

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 710-0726

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 711-0788

Steering Drag Link
(Superseded to 753-0655)

$

$

Not available

17

White Outdoor 17621

Front Pivot Brkt.
(Superseded to 783-0041C)

$77.99

$

Usually ships in 3-6 days

0

18

White Outdoor 738-0527

Shoulder Bolt .498" Dia. x 2 04" Lg. 3/8-16 Thd.

$8.49

$

In Stock, Qty 5

0

19

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

20

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

22

White Outdoor 16481

Steering Arm Front Axle
(Superseded to 983-0055-0637)

$47.99

$

In Stock, only 1 left!

0

23

White Outdoor 710-0772

Hex Bolt 5/16-24 x 2.00" Lg. (Grade 5)

$4.49

$

Usually ships in 3-6 days

0

24

White Outdoor 741-0225

Hex Flg. Brg. .634" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

25

White Outdoor 14608

Pivot Bar Ass'y.
(Superseded to 753-0642-0637)

Variations

White Outdoor 14608-0637

Pivot Bar Kit with Flange Bearing - POWDER BLACK (0637)

$127.99

$

In Stock, only 2 left!

0

$127.99

$

In Stock, only 2 left!

0

26

White Outdoor 17753

Front Axle Ass'y.-L.H.
(Superseded to 97585A-0637)

$

$

Not available

27

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

28

White Outdoor 736-0169

L-Wash. 318" I.D.

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 723-3018

Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

30

White Outdoor 747-0753

Tie Rod

$34.99

$

In Stock, only 1 left!

0

31

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 17754

Front Axle Ass'y.-R.H.
(Superseded to 97584A-0637)

$76.99

$

In Stock, only 4 left!

0

33

White Outdoor 734-1619

Wheel Ass'y. Comp.
(Superseded to 634-0056B-0911)

$249.99

$

In Stock, only 3 left!

0

White Outdoor 734-0864

Tire Only

Variations

White Outdoor 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$136.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$136.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0904

TIRE - Cheng (0904)

$136.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0905

TIRE 15 X 6 - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$111.99

$

Usually ships in 3-6 days

0

34

White Outdoor 734-0997A

Front Wheel Rim Only
(Superseded to 753-0838-0662)

$

$

Not available

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

White Outdoor 737-0146

Grease Fitting

$5.49

$

Usually ships in 3-6 days

0

35

White Outdoor 741-0353

Flange Bearing

Note: (Bronze)

$11.99

$

In Stock, Qty 20+

0

36

White Outdoor 736-0285

Fl-Wash. .635" I.D. x 1.59" O.D.

$4.49

$

In Stock, Qty 9

0

37

White Outdoor 734-1503

Hub Cap

$

$

Not available

38

White Outdoor 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 736-0187

Fl-Wash. .640" I.D. x .24" O.D.

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 715-0150

Spring Roll Pin

$4.49

$

In Stock, Qty 17

0

42

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-0538

Hex L-Bolt 5/16-18 x .62"t

$4.49

$

In Stock, Qty 9

0

44

White Outdoor 736-0119

L-Wash. 5/16" l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

White Outdoor 736-0343

Fl-Wash. .33" l.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

46

White Outdoor 750-0532

Spacer (Plastic)
(Superseded to 950-0532)

$

$

Not available

47

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

48

White Outdoor 736-0169

L-Wash. 3/8" l.D.

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

50

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

White Outdoor 717-0622

Steering Gear Segment
(Superseded to 717-0622C)

$53.99

$

In Stock, only 2 left!

0

52

White Outdoor 741-0225

Hex Flg. Brg. .634 I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

53

White Outdoor 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 738-0522A

Steering Shatt Lower

$75.99

$

In Stock, Qty 5

0

55

White Outdoor 710-0958

Hex Bolt 1/4-20 x 1.31" Lg.
(Superseded to 710-0106)

$3.99

$

In Stock, only 2 left!

0

White Outdoor 710-0837

Oval Hd. Cr-Sunk Scr. #10 x 5/8" Lg.

$4.49

$

In Stock, Qty 6

0

58

White Outdoor 736-0271

Wave Wash. .32" I.D. x .62"
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

59

White Outdoor 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 723-3018

Drag Link Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

61

White Outdoor 736-0607

Ext. L-Wash. 5/16" l.D.

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 736-0418

Fl-Washer
(Superseded to 736-0418A)

$10.99

$

Usually ships in 3-6 days

0

63

White Outdoor 727-0425

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

64

731-1134

Plastic Tube

$

$

Not available
