LT-12 (130-656F190) - White Outdoor 38" Lawn Tractor (1990) Drive Mounting Assembly Parts Diagram

38" Lawn Tractor

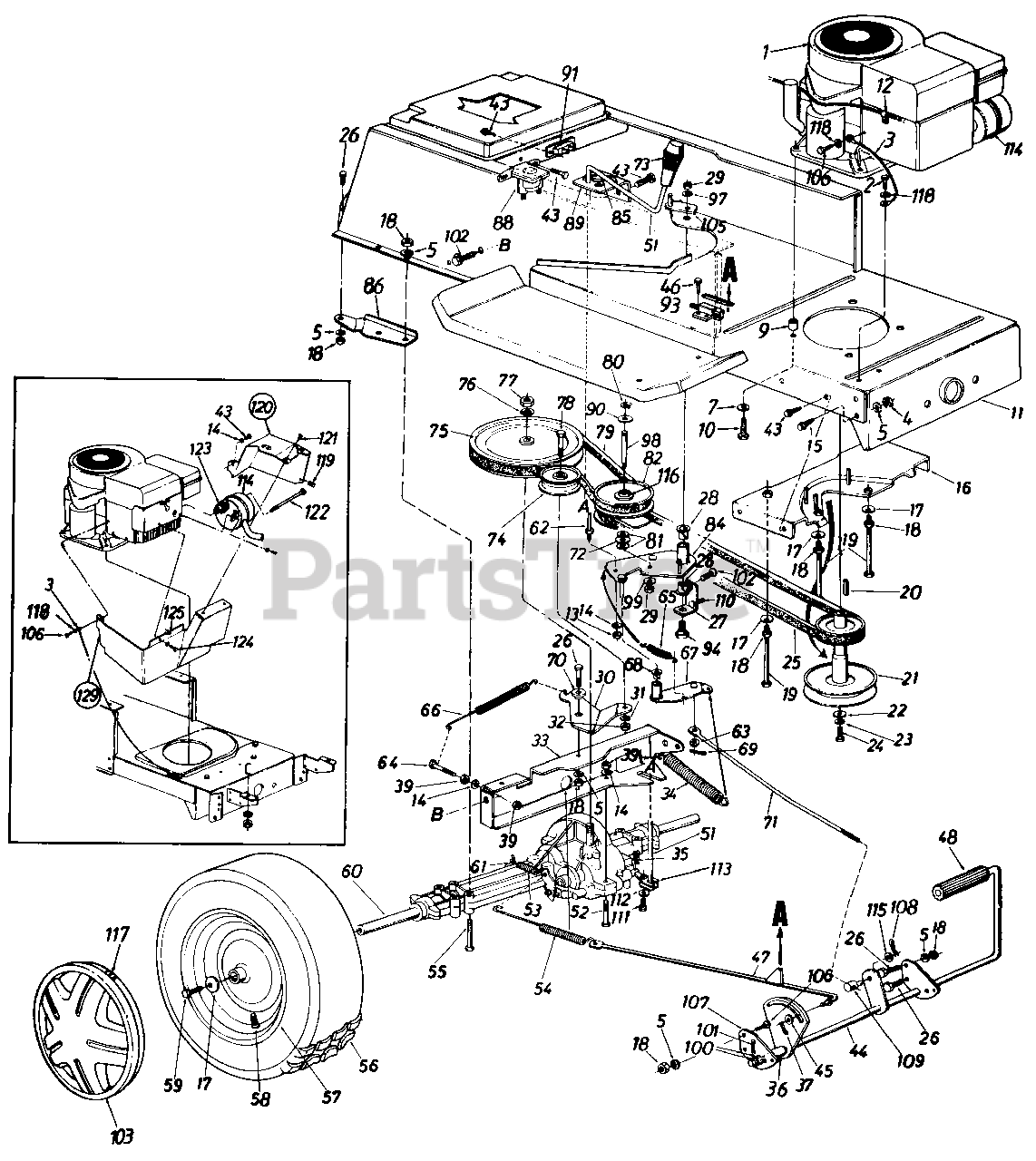

Drive Mounting Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

White Outdoor 710-0726

Hex Wash. AB-Tap Scr. 5/16" x .75"

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 725-0977

Electric Ground Wire

$

$

Not available

4

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

5

White Outdoor 736-0119

L-Wash. 5/16" l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

7

White Outdoor 736-0247

Fl-Wash. .406" I.D. x 1.25"

$9.49

$

In Stock, Qty 14

0

9

White Outdoor 750-0777

Spacer

$

$

Not available

10

White Outdoor 710-1077

Hex L-Wash. Tap Scr. 3/8-16 x 1.5" Lg.
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

11

White Outdoor 17620

Lower Frame Ass'y.

$

$

Not available

12

White Outdoor 726-0235

Speed Clip

$

$

Not available

13

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.'
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

14

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

White Outdoor 710-1012

Rib Neck Bolt 5/1624 x .84" Lg.

$4.49

$

Usually ships in 3-6 days

0

16

15898

Belt Guard Brkt. Ass'y.

$

$

Not available

17

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

19

White Outdoor 710-0190

Hex Bolt 5/16-18 x 4.0n

$7.99

$

Usually ships in 3-6 days

0

20

White Outdoor 714-0114

Sq. Key t/4 x 1/4" x 2.00"
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

21

White Outdoor 756-0488

Engine Pulley
(Superseded to 753-0635)

$109.99

$

In Stock, only 1 left!

0

22

White Outdoor 736-0322

Fl-Wash. 7/16" l.D. x 1.25"

$9.49

$

In Stock, Qty 8

0

23

White Outdoor 736-0171

L-Wash. 7/16" .G.

$4.49

$

In Stock, only 4 left!

0

24

White Outdoor 710-0757

Hex Bolt 7/16-20 x 1.50" Lg.

$9.99

$

In Stock, only 1 left!

0

25

White Outdoor 754-0280

Variable-Speed Belt
(Superseded to 954-0280A)

$45.99

$

In Stock, only 1 left!

0

26

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 16553

Bearing Shaft Bracket Ass'y.

$

$

Not available

28

White Outdoor 741-0295

Flanged Nyliner Brg. 5/8" I.D. x .88" Lg.
(Superseded to 941-0591)

$

$

Not available

29

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

30

White Outdoor 17643

Idler Bracket
(Superseded to 17643-0637)

Variations

White Outdoor 17643-0637

Idler Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 4 left!

0

$10.99

$

In Stock, only 4 left!

0

31

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

33

White Outdoor 17629

Transaxle Support Brkt.
(Superseded to 17629A-0637)

$

$

Not available

34

White Outdoor 732-0556

Ext. Spring .94" O.D. x 7.58"
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

35

White Outdoor 714-0149B

Inter. Cott-Pin

$4.49

$

In Stock, Qty 18

0

36

White Outdoor 750-0802

Spacer.63" I.D.

$6.99

$

Usually ships in 3-6 days

0

37

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 12

0

39

White Outdoor 712-0138

Hex Nut l/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

43

White Outdoor 710-0599

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 17715

Clutch/Brake Pedal Ass'y.

$

$

Not available

45

White Outdoor 736-0117

Fl-Wash.
(Superseded to 936-0117)

$7.49

$

Usually ships in 3-6 days

0

46

White Outdoor 710-0351

Truss Mach. Scr. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

47

White Outdoor 17686

Brake Rod Ass'y.

$

$

Not available

48

White Outdoor 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

51

White Outdoor 17705

Shift Lever Ass'y.

$

$

Not available

52

White Outdoor 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.

$

$

Not available

53

White Outdoor 732-0264

Ext. Spring .38" O.D. x 2.5"
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

54

White Outdoor 732-0413

Ext. Spring .59" O.D. x 7.08"
(Superseded to 932-0413)

$12.99

$

In Stock, only 4 left!

0

55

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0

56

White Outdoor 734-1675

Wheel Ass'y. Comp.

Variations

White Outdoor 734-1675-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

In Stock, only 1 left!

0

White Outdoor 734-1675-0911

WHL ASSY 20 X 8 - Carlisle Gray (0911)

$447.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1675-0945

WHL ASSY 20 X 8 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1675-0912

WHL ASSY 20 X 8 - Dico Gray (0912)

$

$

Not available

White Outdoor 734-1675-0914

WHL ASSY 20 X 8 - Cheng Gray (0914)

$

$

Not available

White Outdoor 734-1675-0931

WHL ASSY 20 X 8 - Carlisle Beige (0931)

$

$

Not available

White Outdoor 734-1675-0941

WHEEL ASSY W/TIRE - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 734-1675-0944

No Longer Available WHEEL ASSY W/TIRE - Cheng Yellow (0944)

$

$

Not available

White Outdoor 734-1675-0981

WHEEL ASSY W/TIRE - Carlisle Green (0981)

$

$

Not available

White Outdoor 734-1675-0985

WHEEL ASSY 20X8X8 - Duro Green (0985)

$

$

Not available

$420.99

$

Usually ships in 3-6 days

0

57

White Outdoor 734-0603A

Wheel Rim Only
(Superseded to 634-04369)

$134.99

$

Usually ships in 3-6 days

0

58

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Service Only)

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 710-0627

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 717-0542

Transaxle Complete
(Superseded to 753-0536)

$

$

Not available

61

White Outdoor 732-0454

Brake Return Spring Anchor
(Superseded to 932-0722A)

$12.99

$

In Stock, only 4 left!

0

62

White Outdoor 711-0768

Belt Guard Pin 1/4-20 Thd.
(Superseded to 911-1000)

$10.99

$

In Stock, only 2 left!

0

63

White Outdoor 736-0275

Fl-Wash. 34" l.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

64

White Outdoor 710-0428

Hex Bolt 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

65

White Outdoor 732-0568

Ext. Spring
(Superseded to 932-0568)

$

$

Not available

66

White Outdoor 732-0384

Ext. Spring .62" O.D. x 6.12"
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

67

White Outdoor 16554A

Variable Speed Torque Brkt. Ass'y.
(Superseded to 16554A-0637)

Variations

White Outdoor 16554A-0637

Torque Bracket Assembly - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

68

White Outdoor 741-0419

Flanged Bearing

$

$

Not available

69

White Outdoor 714-0507

Cotter Pin 8/32" Dia.

$4.49

$

In Stock, Qty 12

0

70

White Outdoor 748-0234

Shoulder Spacer 27" Lg.

$4.49

$

In Stock, Qty 20+

0

71

White Outdoor 747-0530

Speed Control Link
(Superseded to 747-0530A)

$14.99

$

Usually ships in 3-6 days

0

72

White Outdoor 741-0405

Truss Bearing .56 Dia. x 1 .25"
(Superseded to 941-0405)

$

$

Not available

73

White Outdoor 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

74

White Outdoor 756-0437

Fl-ldler Pulley 3 25" x .75"
(Superseded to 756-0643A)

$40.99

$

In Stock, Qty 15

0

75

White Outdoor 756-0557

1/2 n 'V"-Pulley

$

$

Not available

76

White Outdoor 736-0921

L-Wash. 1/2" l.D.

$4.49

$

In Stock, Qty 6

0

77

White Outdoor 712-0922

Hex Jam Nut l/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

78

White Outdoor 710-0539

Hex Bolt 3/8-24 x 1.75" Lg.

$4.99

$

In Stock, Qty 12

0

79

White Outdoor 754-0370

Variable Speed Belt
(Superseded to 954-0370)

$41.99

$

Usually ships in 3-6 days

0

80

White Outdoor 716-0114

Snap Ring 56" Dia.
(Superseded to 916-0114)

$6.99

$

In Stock, only 2 left!

0

81

White Outdoor 736-0355

Fl-Wash.

$4.49

$

In Stock, Qty 20+

0

82

White Outdoor 717-0800

Variable Speed Pulley Ass'y. 5" O.D.
(Superseded to 917-0800A)

$245.99

$

In Stock, only 3 left!

0

84

White Outdoor 16354B

Variable Speed Brkt. Ass'y.

Variations

White Outdoor 16354B-0637

BRACKET ASSY-VAR S - POWDER BLACK (0637)

$

$

Not available

$

$

85

White Outdoor 732-0525

Comp. Spring-Clip

$10.99

$

In Stock, only 1 left!

0

86

White Outdoor 17668

Axle Support Brkt.-R.H.
(Superseded to 17668A-0637)

Variations

White Outdoor 17668-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

White Outdoor 17669

Axle Support Brkt.-L.H.
(Superseded to 17669A-0637)

Note: (Not Shown)

Variations

White Outdoor 17669-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

88

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

89

White Outdoor 17630

Shift Lever Bracket
(Superseded to 17630A-0637)

Variations

White Outdoor 17630-0637

Shift Lever Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

90

White Outdoor 736-0414

Teflon Washer .565" I.D.

$4.49

$

In Stock, Qty 13

0

91

White Outdoor 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

93

White Outdoor 725-3169

Safety Switch
(Superseded to 925-04039)

Note: (Clutch)

$24.99

$

In Stock, Qty 8

0

94

White Outdoor 738-0755

Shld. Bolt 3/8-24 x 3.12" Lg.
(Superseded to 938-0755)

$14.99

$

Usually ships in 3-6 days

0

97

White Outdoor 736-0105

Bell-Wash. 38" l.D. x .88"

$4.49

$

In Stock, Qty 20+

0

98

White Outdoor 738-0569

Shaft 56" Dia. x 3.875" Lg.
(Superseded to 938-0569)

$33.99

$

In Stock, only 1 left!

0

99

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.12"

$3.99

$

In Stock, Qty 20+

0

100

White Outdoor 736-0256

Fl-Wash. .64" I.D. x .94"
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

101

White Outdoor 714-0111

Cotter Pin 3/32" Dia. x 1.0"

$4.99

$

In Stock, Qty 13

0

102

White Outdoor 710-0604

Hex Wash. Hd. Scr. 5/16-18 x 62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

103

White Outdoor 734-1504

Hub Cap
(Superseded to 734-1615A)

$32.99

$

Usually ships in 3-6 days

0

105

White Outdoor 16067

Belt Guard

$

$

Not available

106

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

107

White Outdoor 15835A

Pedal Bracket

$

$

Not available

108

White Outdoor 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 12

0

109

White Outdoor 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

110

White Outdoor 710-0376

Hex Bolt 5/16-18 x 1.0" Lg.- (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

111

White Outdoor 710-0195

Hex Bolt 1/4-28 x .50" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

112

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

113

White Outdoor 17707

Shift Lever Link Ass'y.

$

$

Not available

114

White Outdoor 751-0465

Muffler
(Superseded to 951-0465A)

$

$

Not available

115

White Outdoor 736-0140

Fl-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 7

0

116

White Outdoor 741-0404

Needle Brgs.

$40.99

$

In Stock, only 2 left!

0

117

White Outdoor 727-0425

Spring Clip
(Superseded to 927-0425A)

Note: (Used w/Ref. #1O3J

$

$

Not available

118

White Outdoor 736-0607

External L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

119

White Outdoor 712-0147

Speed Nut #10-24

$6.99

$

Usually ships in 3-6 days

0

120

White Outdoor 16935

Muffler Heat Shield-L.H.
(Superseded to 683-0042A)

$

$

Not available

121

White Outdoor 710-0224

Hex Wash. Tap Scr. #10 x .50" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

122

White Outdoor 738-0636

Shld Scr. 7/16 Dia. x 3-5/8"
(Superseded to 938-0636)

$

$

Not available

123

White Outdoor 721-0208

Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

124

White Outdoor 710-0294

Hex Bolt

$3.49

$

Usually ships in 3-6 days

0

125

White Outdoor 736-0175

L-Wash.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

129

White Outdoor 16936

Muffler Heat Shield-Front

$

$

Not available
