LT-12 (130-656F190) - White Outdoor 38" Lawn Tractor (1990) 38" Mowing Deck Assembly Parts Diagram

38" Lawn Tractor

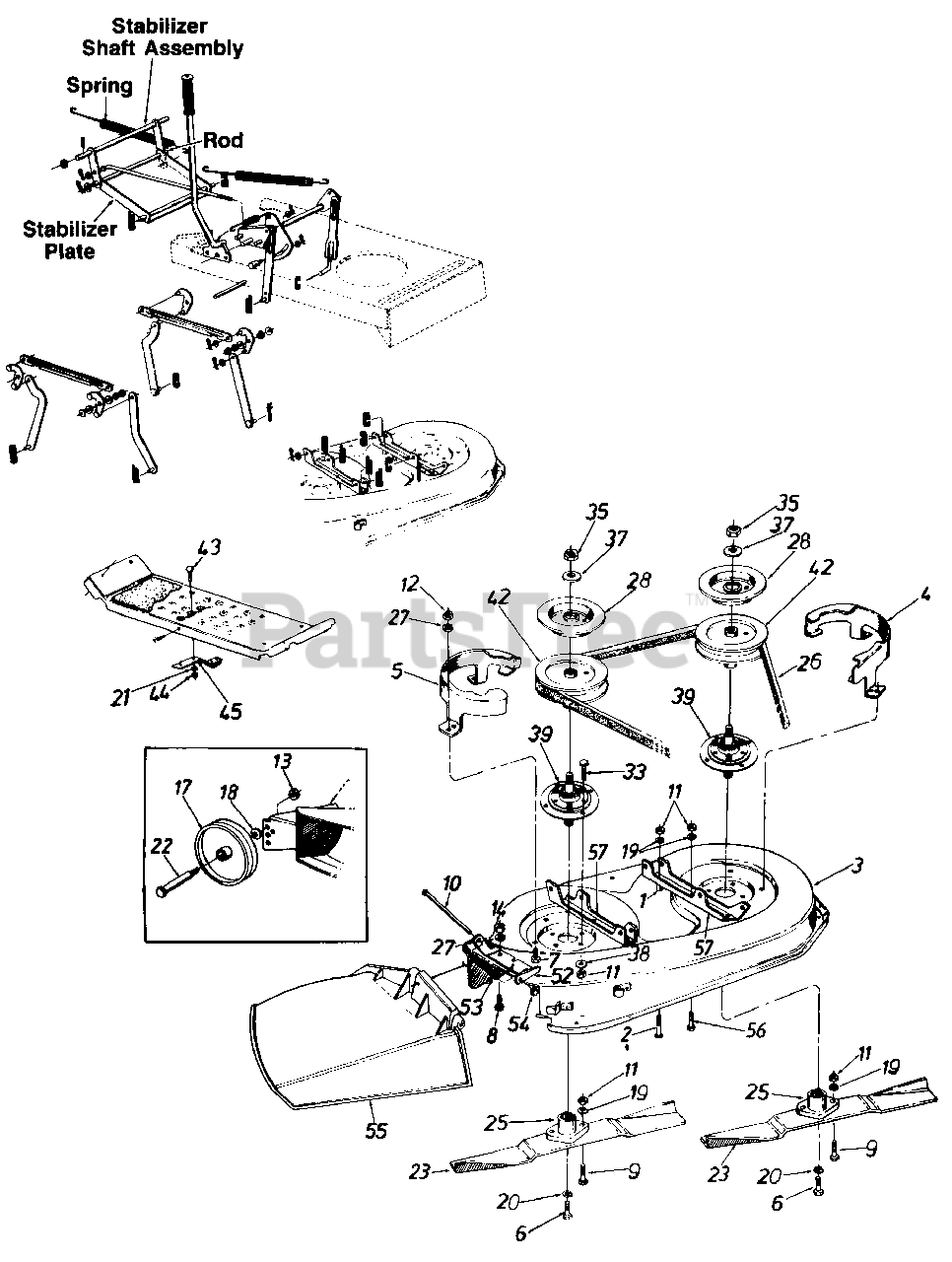

38" Mowing Deck Assembly Parts Diagram

  • Title

1

White Outdoor 750-0776

Spacer.33" l.D. x .88"

$

$

Not available

2

White Outdoor 710-0672

Hex Bolt 5/16-24 x 1.25" Lg.

$4.49

$

In Stock, Qty 18

0

3

White Outdoor 17503

38" Deck Ass'y. w/Deck Wheels
(Superseded to 753-04376)

$

$

Not available

White Outdoor 801-7503

38" Deck Ass'y. Comp. w/Deck Wheels
(Superseded to 753-0694)

Note: (For Service Only)

$

$

Not available

4

White Outdoor 16607

Belt Guard Deck-L.H.

Variations

White Outdoor 16607-0637

GUARD-BELT-LH - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 16608A

Belt Guard Deck-R.H.

Variations

White Outdoor 16608A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

6

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 5

0

7

White Outdoor 710-0195

Hex Bolt 1/428 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

8

White Outdoor 710-0255

Truss Mach. Scr. 1/420 x .77"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0888

Hex Bolt Special 5/16-24 x 1.0"

$4.49

$

In Stock, Qty 5

0

10

White Outdoor 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

Usually ships in 3-6 days

0

11

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

12

White Outdoor 712-0138

Hex Nut l/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

13

White Outdoor 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

14

White Outdoor 712-0287

Hex Nut 20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

17

White Outdoor 734-0973

Deck Wheel-5n

$12.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0105

Bell-Wash. .40" l.D. x .88" O.D.t

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 736-0119

L-Wash. 5/16" l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-0217

L-Wash. 3/8" l.D.-H.D.

$4.49

$

In Stock, Qty 9

0

21

White Outdoor 736-0329

L-Wash. 1/4" l.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

22

White Outdoor 738-0373

Shld. Bolt .498" Dia. x 1.53n
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

23

White Outdoor 742-0473A

High-Lift Blade
(Superseded to 942-0473A)

$33.99

$

In Stock, Qty 5

0

25

White Outdoor 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

26

White Outdoor 754-0329

V-Belt
(Superseded to 954-0329A)

$52.99

$

In Stock, only 2 left!

0

27

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 09322

Brake Disc

$

$

Not available

33

White Outdoor 710-0157

Hex Bolt 5/1-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

35

White Outdoor 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 13

0

37

White Outdoor 736-0158

L-Wash. 5/8" l.D.

$4.49

$

In Stock, only 1 left!

0

38

White Outdoor 736-0119

L-Wash. 5/16" l.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

White Outdoor 717-0906

Blade Spindle Ass'y. Comp.
(Superseded to 753-05319)

$128.99

$

In Stock, Qty 10

0

42

White Outdoor 756-0486

5" Dia. Pulley

$54.99

$

In Stock, only 3 left!

0

43

White Outdoor 710-0134

Carr. Bolt 1/4 20 x .62n

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 712-0287

Hex Nut 1/4 20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

45

White Outdoor 761-0168

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

52

White Outdoor 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

53

White Outdoor 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

54

White Outdoor 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

55

White Outdoor 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

56

White Outdoor 710-0157

Hex Bolt 5/16-24 x 75" Lg.

$4.49

$

In Stock, Qty 8

0

57

White Outdoor 17493A

Deck Hanger Channel
(Superseded to 17493B-0637)

Variations

White Outdoor 17493A-0637

DECK HANGER BRACKET BLACK - POWDER BLACK (0637)

$

$

Not available

$

$
