LT 115D411B (80231) - Snapper 41" Lawn Tractor, 11.5hp Wheels - Rear Parts Diagram

41" Lawn Tractor, 11.5hp

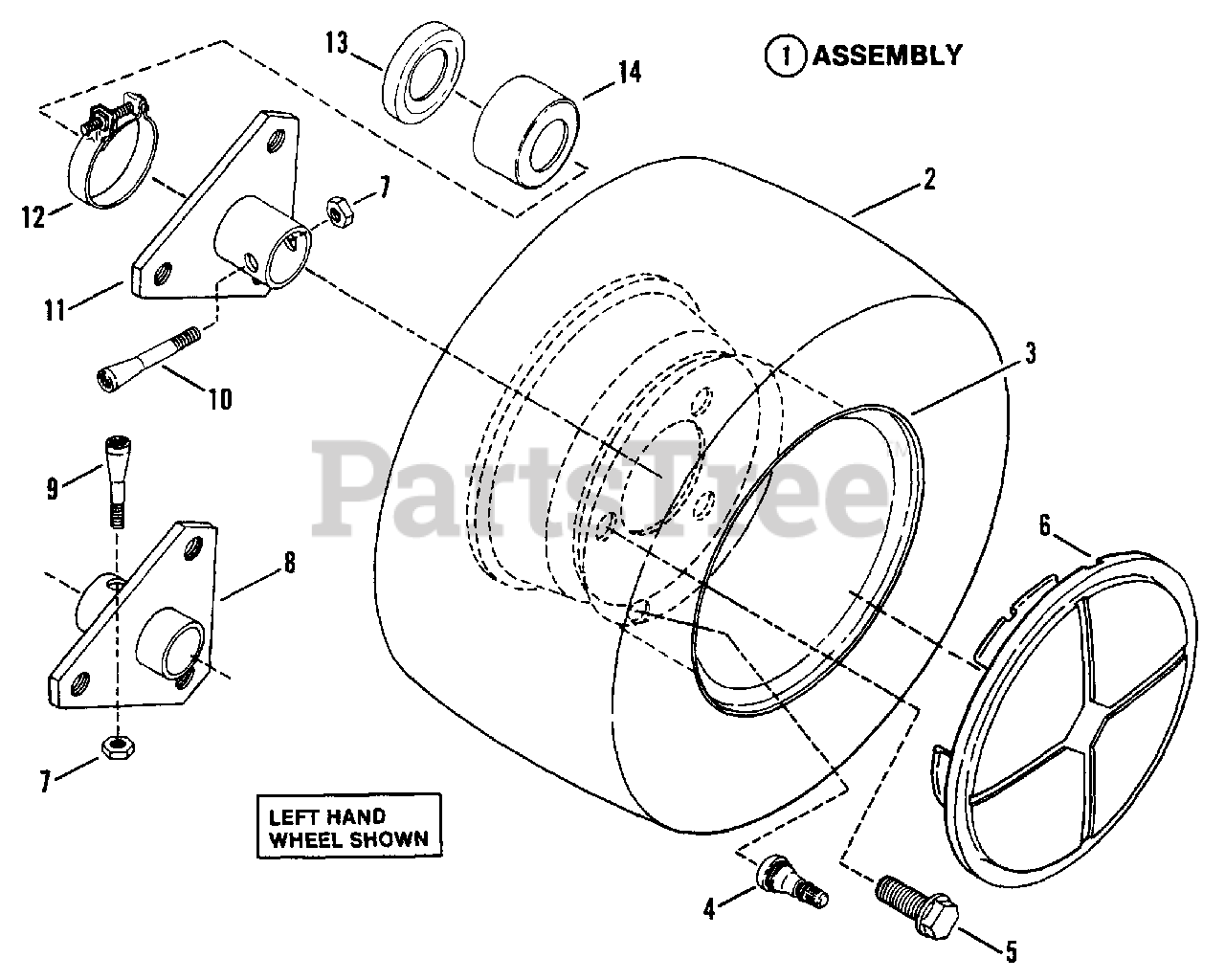

Wheels - Rear Parts Diagram

  • Title

1

Snapper 7052187

ASSEMBLY, Rear Tire & Rim

Note: (41" Deck) (LT115D41) (Includes items 2, 3, & 4)

$

$

Currently unavailable

Snapper 7052675

ASSEMBLY, Rear Tire & Rim

Note: (33" Deck) (LT115D33 & RLT115D33) (Includes items 2, 3, & 4)

$

$

Currently unavailable

2

Snapper 7016744

TIRE, 18-8.50 x 8

Note: (Used with 41" Deck)

$

$

Not available

Snapper 7022688

TIRE, 18-7.50 x 8
(Superseded to 7022688YP)

Note: (Used with 33" Deck)

$131.99

$

Usually ships in 2-12 days

0

3

Snapper 7016742

RIM, 8 x 7

Note: (Used with 41" Deck)

$

$

Not available

Snapper 7016741

RIM, 8 x 5.375

Note: (Used with 33" Deck)

$

$

Currently unavailable

4

Snapper 7012234

VALVE, Air
(Superseded to 7012234SM)

Note: (Snap-in)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7091502

BOLT, 1/2-20 x 3/4" Lug
(Superseded to 703431)

Note: Was 90367

$4.99

$

In Stock, Qty 20+

0

6

Snapper 7019418

WHEEL COVER
(Superseded to 7019418YP)

$7.49

$

In Stock, only 2 left!

0

7

Snapper 7092062

NUT, 5/16-24 Hex Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7040433

HUB, Rear Wheel
(Superseded to 7040433YP)

Note: (Right Hand)

$37.99

$

In Stock, Qty 13

0

9

Snapper 7011013

BOLT, 5/16-24 x 2" Tapered
(Superseded to 7011013YP)

Note: (Right Hand)

$6.49

$

In Stock, Qty 20+

0

10

Snapper 7011035

BOLT, 5/16-24 x 1 5/8" Tapered
(Superseded to 7011035YP)

Note: (Left Hand)

$4.99

$

In Stock, Qty 20+

0

11

Snapper 7040434

HUB, Rear Wheel
(Superseded to 7040434YP)

Note: (Left Hand)

$

$

Not available

12

Snapper 7011037

CLAMP
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

13

Snapper 7011817

SEAL, Oil
(Superseded to 7011817YP)

Note: (Left Hand)

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7031732

CAP, Seal
(Superseded to 7031732YP)

Note: (Left Hand)

$6.49

$

In Stock, Qty 20+

0
