LT 115D411B (80231) - Snapper 41" Lawn Tractor, 11.5hp Wheels - Front Parts Diagram

41" Lawn Tractor, 11.5hp

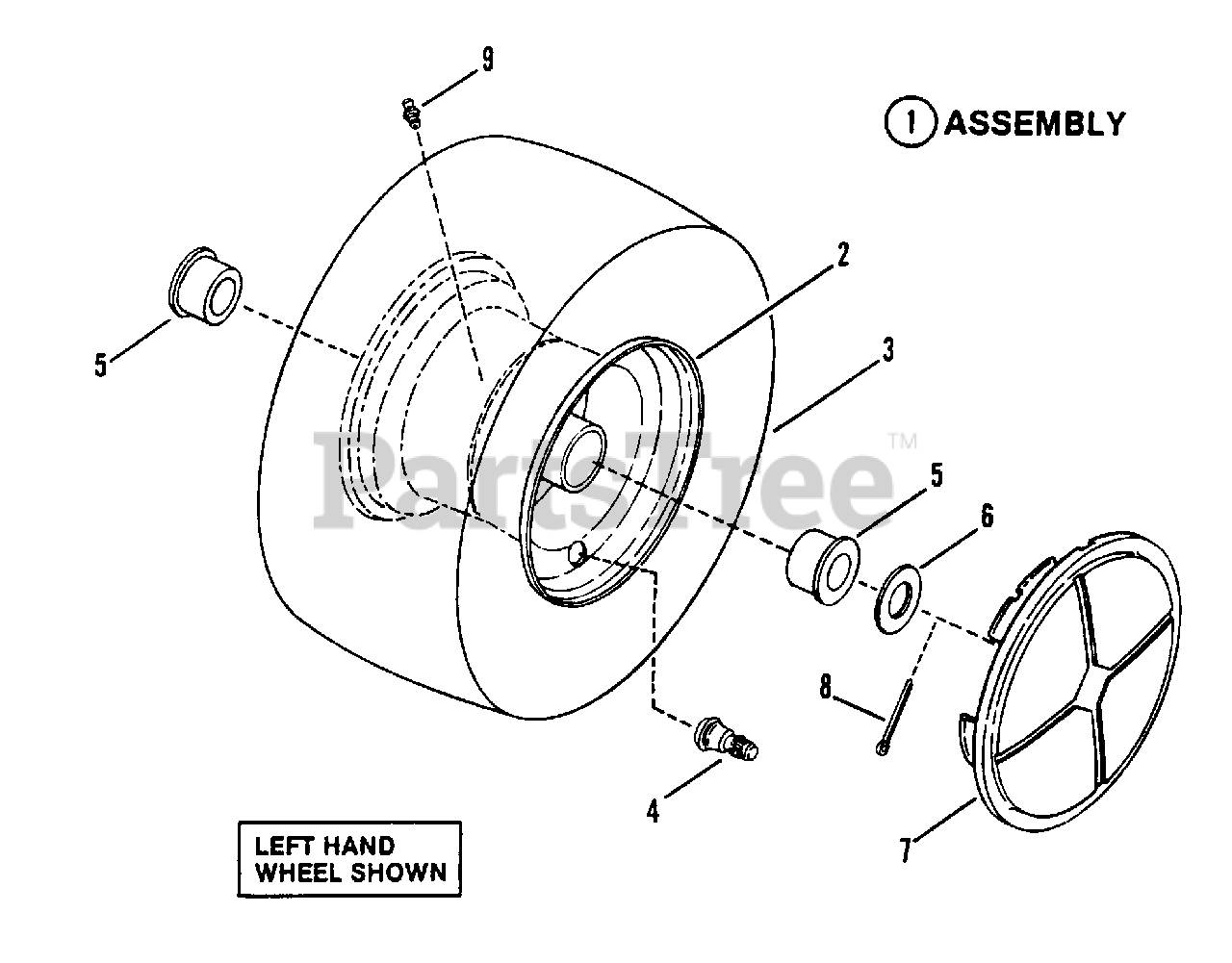

Wheels - Front Parts Diagram

  • Title
1

Snapper 7052185

ASSEMBLY, Front Tire & Rim
(Superseded to 7058517YP)

Note: (Includes items 2,3, & 4)

$167.99

$

Usually ships in 2-12 days

0

2

Snapper 7022772

RIM, 6 x 4.50
(Superseded to 7058517YP)

Note: Was 16739

$167.99

$

Usually ships in 2-12 days

0

3

Snapper 7016740

TIRE, 15-6.00 x 6

$

$

Currently unavailable

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7014483

BEARING, Wheel
(Superseded to 7014483YP)

$10.99

$

In Stock, Qty 11

0

6

Snapper 7032027

WASHER
(Superseded to 7032027SM)

$4.49

$

In Stock, Qty 7

0

7

Snapper 7019417

WHEEL-COVER
(Superseded to 7019417YP)

$7.49

$

In Stock, only 2 left!

0

8

Snapper 7091516

COTTER-PIN
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 11

0

9

Snapper 7076998

FITTING, Lube 1/4-28 Tapered Thread
(Superseded to 703153)

Note: Was 13876

$3.99

$

In Stock, Qty 12

0
