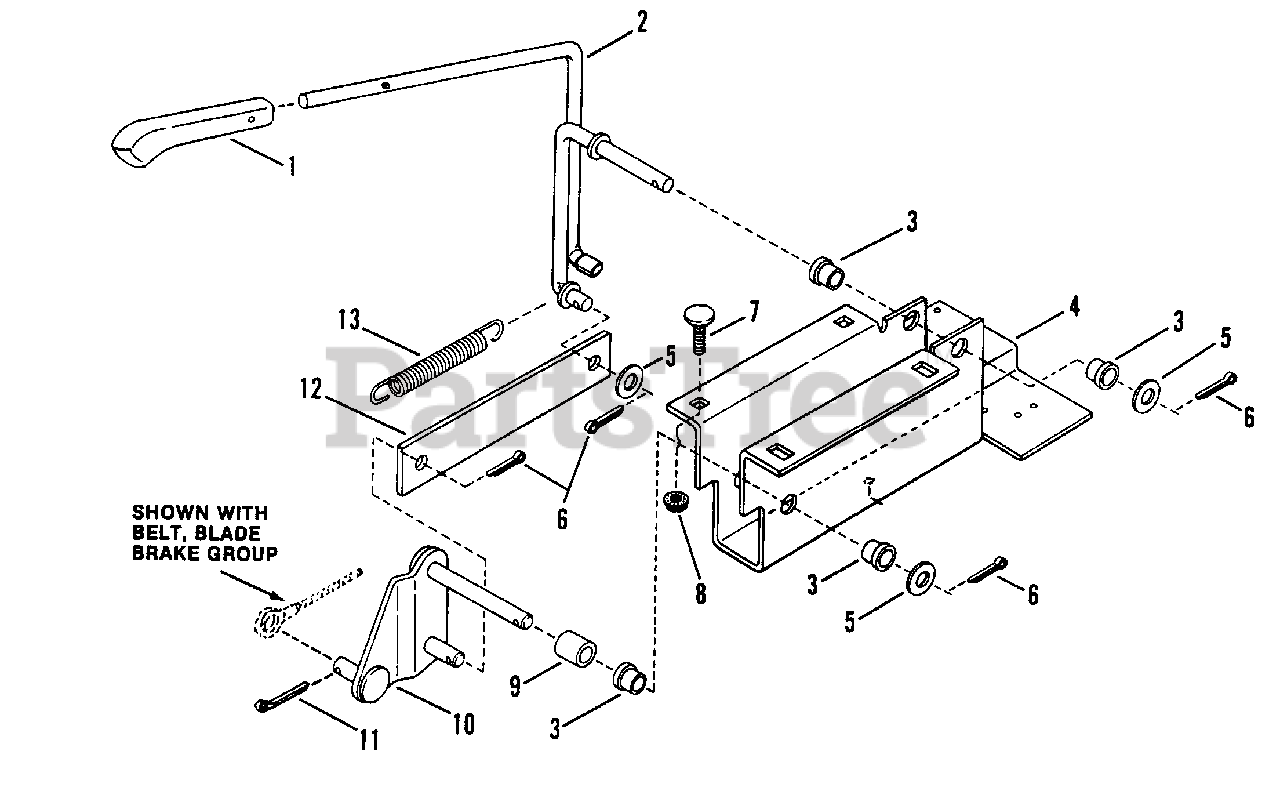

LT 115D411B (80231) - Snapper 41" Lawn Tractor, 11.5hp Blade Engagement Parts Diagram

41" Lawn Tractor, 11.5hp

Blade Engagement Parts Diagram

  • Title

1

Snapper 7016356

KNOB, Handle

$

$

Not available

2

HANDLE, Blade Engagement (No longer available, try using 7040674)

Note: Was 40996

$

$

Not available

3

Snapper 7013321

BUSHING
(Superseded to 7013321YP)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 7033364

BRACKET, Handle
(Superseded to 7033364YP)

$22.99

$

Usually ships in 2-12 days

0

5

Snapper 7090122

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

9

Snapper 7023206

SPACER
(Superseded to 7023206YP)

$8.49

$

Usually ships in 2-12 days

0

10

Snapper 7040570

PIVOT ARM ASSEMBLY

$

$

Not available

11

Snapper 7091313

COTTER-PIN, 3/32 x 1"
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 1 left!

0

12

Snapper 7032712

LINK

$

$

Not available

13

Snapper 7023165

SPRING, Return
(Superseded to 7023165YP)

$19.99

$

Usually ships in 2-12 days

0
