LT-112 (135-688-190) - White Outdoor 36" Lawn Tractor (1985) Transmission, Neutral Adjustment Parts Diagram

36" Lawn Tractor

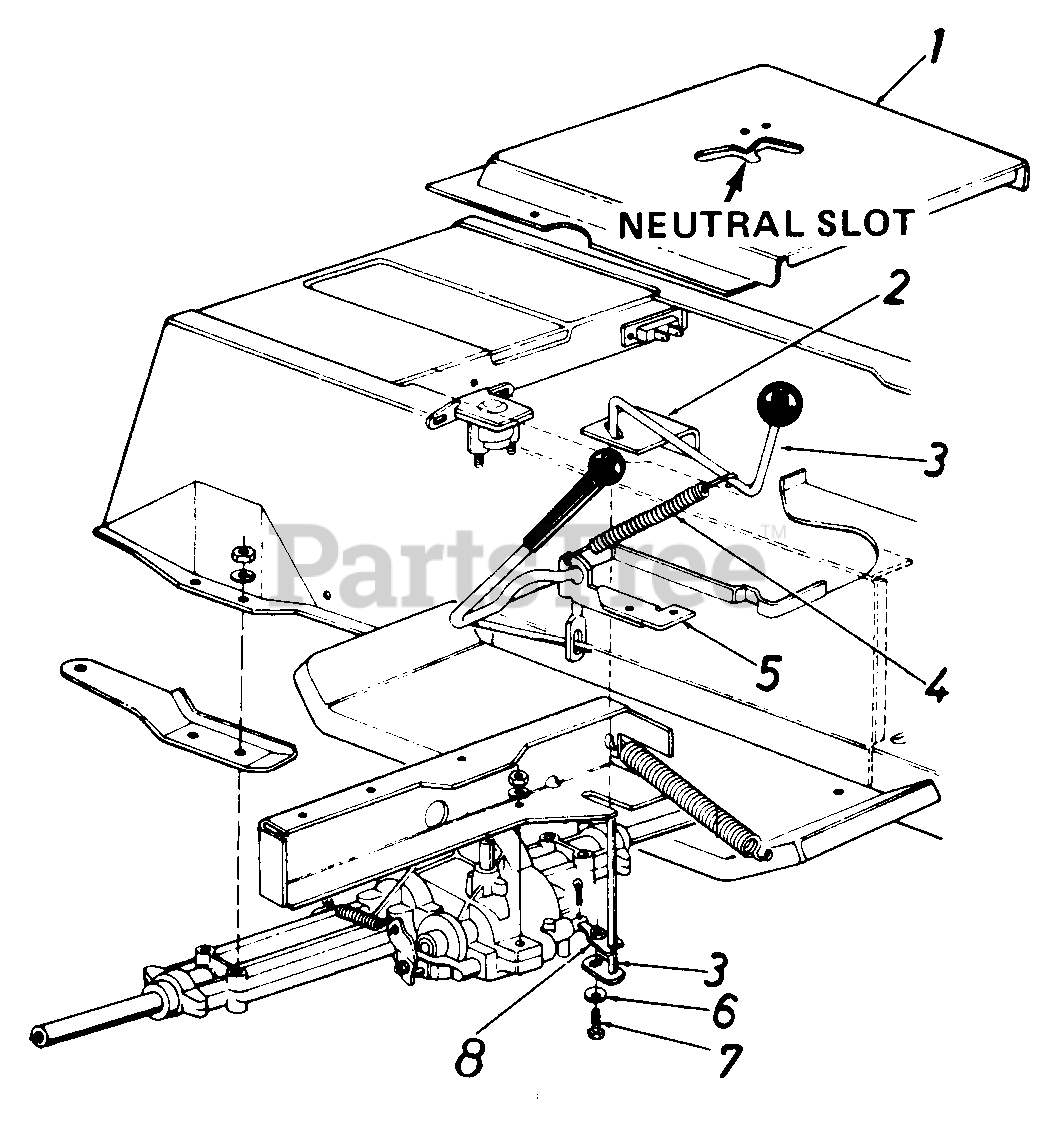

Transmission, Neutral Adjustment Parts Diagram

  • Title

1

16433

Shift Cover

$

$

Not available

2

White Outdoor 16429

Shift Lever Bracket

$

$

Not available

3

White Outdoor 16430

Shift Lever Ass'y.
(Superseded to 17705)

$

$

Not available

4

White Outdoor 732-0447

Extension Spring

$

$

Not available

5

White Outdoor 15889

Brake Lever Bracket

$

$

Not available

6

White Outdoor 736-0270

Belle-Wash. .25" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-0195

Hex Bolt 1/4-28 x .75" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

8

White Outdoor 16437

Shift Lever Link Ass'y.

$

$

Not available
