LT-112 (135-688-190) - White Outdoor 36" Lawn Tractor (1985) Steering Assembly Parts Diagram

36" Lawn Tractor

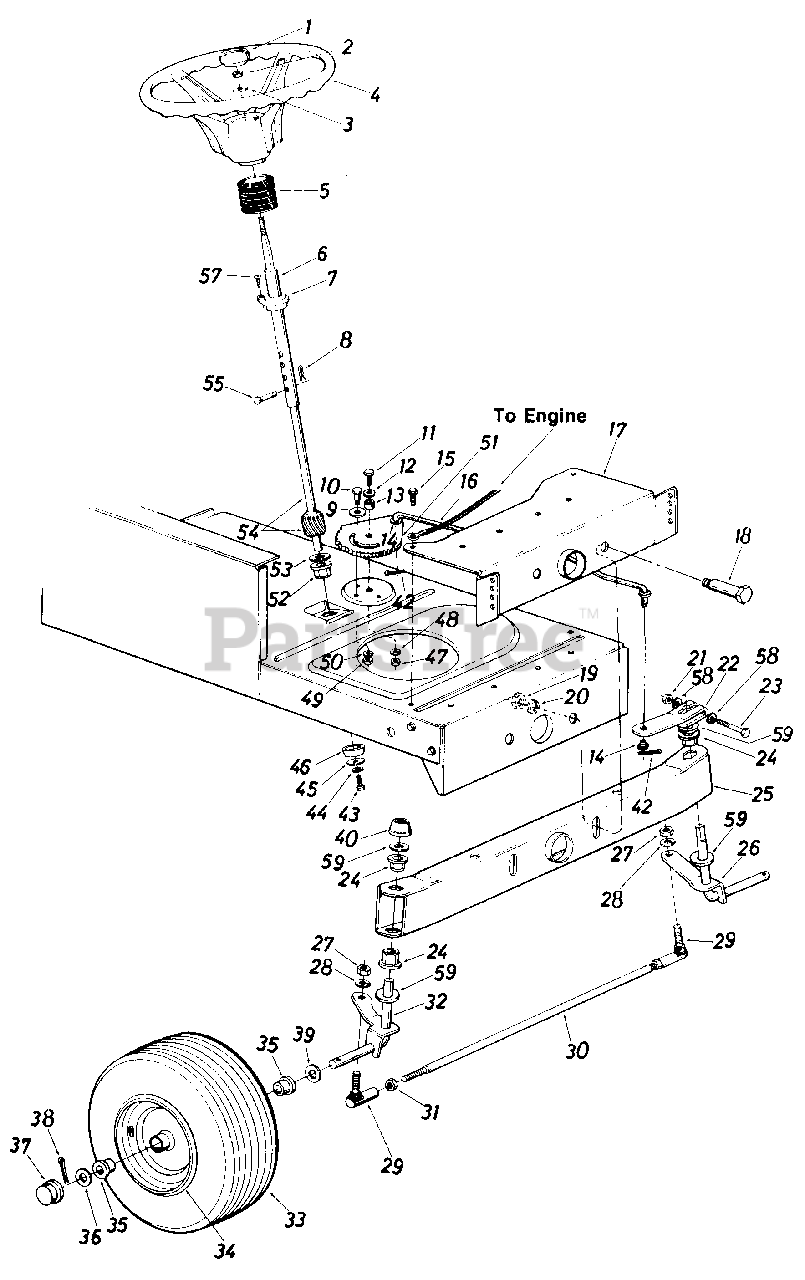

Steering Assembly Parts Diagram

  • Title

1

White Outdoor 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

2

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

3

White Outdoor 736-0242

Belleville Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 731-0219

Steering Wheel

$38.99

$

In Stock, only 1 left!

0

5

White Outdoor 731-0559

Steering Bellow 4.5"
(Superseded to 731-0559B)

$

$

Not available

6

White Outdoor 14775

Steering Column Ass'y.

$

$

Not available

7

White Outdoor 741-0356

Flange Bearing .890 I.D. x 1.36 O.D.
(Superseded to 741-0356A)

$7.49

$

In Stock, only 1 left!

0

8

White Outdoor 714-0147

Internal Cotter Pin 1/4" Dia.

$4.99

$

In Stock, Qty 7

0

9

White Outdoor 736-0319

Fl-Wash. .438" I.D. x 1.37" O.D.
(Superseded to 936-0319)

$11.99

$

Usually ships in 3-6 days

0

10

White Outdoor 738-0141

Shoulder Bolt .437" Dia. x .35 Lg. 5/16-18 Thd.
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

11

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.0" Lg. (Grade 5)
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 5

0

12

White Outdoor 736-0206

Fl-Wash. .38" I.D. x 1.0" O.D.
(Superseded to 936-0206)

$4.49

$

In Stock, only 4 left!

0

13

White Outdoor 750-0535

Spacer .380" I.D. x .625" O.D. x .227
(Superseded to 950-0535)

$4.49

$

In Stock, only 4 left!

0

14

White Outdoor 736-0355

Flat Washer .56 I.D. x 1.0 O.D.

$4.49

$

In Stock, Qty 12

0

15

White Outdoor 710-0726

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 711-0782

Steering Drag Link

$

$

Not available

17

14619

Front Pivot Brkt.

$

$

Not available

18

White Outdoor 738-0527

Shoulder Bolt .498" Dia. x 2.04 Lg. 3/8-16 Thd.

$8.49

$

In Stock, Qty 5

0

19

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

20

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

22

White Outdoor 14611

Steering Arm Front Axle
(Superseded to 753-0498)

$

$

Not available

23

White Outdoor 710-0772

Hex Bolt 5/16-24 x 2.00" Lg. (Grade 5)

$4.49

$

Usually ships in 3-6 days

0

24

White Outdoor 741-0225

Hex Flg. Brg. .634 I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

25

White Outdoor 14608

Pivot Bar Ass'y.
(Superseded to 753-0642-0637)

Variations

White Outdoor 14608-0637

Pivot Bar Kit with Flange Bearing - POWDER BLACK (0637)

$127.99

$

In Stock, only 2 left!

0

$127.99

$

In Stock, only 2 left!

0

26

White Outdoor 14649

Front Axle Ass'y. L. H .
(Superseded to 94649)

$

$

Not available

27

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

28

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 723-0156

Ball Joint 3/8-24 Thd.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

30

White Outdoor 711-0613

Tie Rod

$

$

Not available

31

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 14650

Front Axle Ass'y. R.H.
(Superseded to 14650A)

$142.99

$

Usually ships in 3-6 days

0

33

White Outdoor 734-1136

Wheel Ass'y. Comp.
(Superseded to 634-0056B-0911)

Note: (688)

$249.99

$

In Stock, only 3 left!

0

White Outdoor 734-1229

Wheel Ass'y. Comp.

Note: (690)

$

$

Not available

White Outdoor 734-0427

Tire Only
(Superseded to 734-1731-0901)

Note: (688)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 734-0298

Tire Only
(Superseded to 734-0298-0901)

Note: (690)

Variations

White Outdoor 734-0298-0901

Tubeless Tire, 13 - Carlisle (0901)

$41.99

$

In Stock, only 2 left!

0

White Outdoor 734-0298-0902

Tubeless Tire, 13 - Dico (0902)

$41.99

$

In Stock, only 2 left!

0

White Outdoor 734-0298-0905

Tubeless Tire, 13 - Duro (0905)

$41.99

$

In Stock, only 2 left!

0

$41.99

$

In Stock, only 2 left!

0

34

White Outdoor 734-0997

Front Wheel Rim Only
(Superseded to 753-0838-0662)

Note: (688)

$

$

Not available

White Outdoor 734-0986

Front Wheel Rim Only
(Superseded to 734-1227)

Note: (690)

$

$

Not available

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

734-0146

Grease Fitting

$

$

Not available

35

White Outdoor 741-0313

Bearing
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

36

White Outdoor 736-0285

Fl-Wash. .635 I.D. x 1.59" O.D.

$4.49

$

In Stock, Qty 9

0

37

White Outdoor 731-0484

Front Wheel Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

38

White Outdoor 714-0470

Cotter Pin 118" Dia. x 1.25" Lg.*

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 736-0156

Fl-Wash. .635" I.D. x 1.20" O.D.

$4.49

$

In Stock, Qty 12

0

40

White Outdoor 726-0214

Push Cap 5/8" Dia. Rod

$10.99

$

In Stock, only 3 left!

0

42

White Outdoor 714-0115

Cotter Pin 118" Dia. x 1.0" Lg.

$3.99

$

Usually ships in 3-6 days

0

43

White Outdoor 710-0538

Hex L-Bolt 5/16-18 x .62" Lg.*

$4.49

$

In Stock, Qty 9

0

44

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

White Outdoor 736-0231

Fl-Wash. .344" I.D. x 1.25" O.D.

$4.99

$

In Stock, Qty 11

0

46

White Outdoor 750-0532

Spacer (Plastic)
(Superseded to 950-0532)

$

$

Not available

47

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

48

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

49

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

50

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

White Outdoor 717-0468

Steering Gear Segment
(Superseded to 917-0468)

$

$

Not available

52

White Outdoor 741-0225

Hex Flg. Brg. .634 I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

53

White Outdoor 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 738-0522

Steering Shaft Lower
(Superseded to 738-0522A)

$75.99

$

In Stock, Qty 5

0

55

White Outdoor 711-0684

Clevis Pin 1/4" Dia. x 1.00" Lg.

$

$

Not available

57

White Outdoor 710-0837

Oval Hd. Cr. Sunk Scr. #10 x 5/8" Lg.

$4.49

$

In Stock, Qty 6

0

58

White Outdoor 736-0242

Bell-Wash.

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 736-0187

Fl-Wash. (Hardened)

$4.49

$

In Stock, Qty 20+

0
