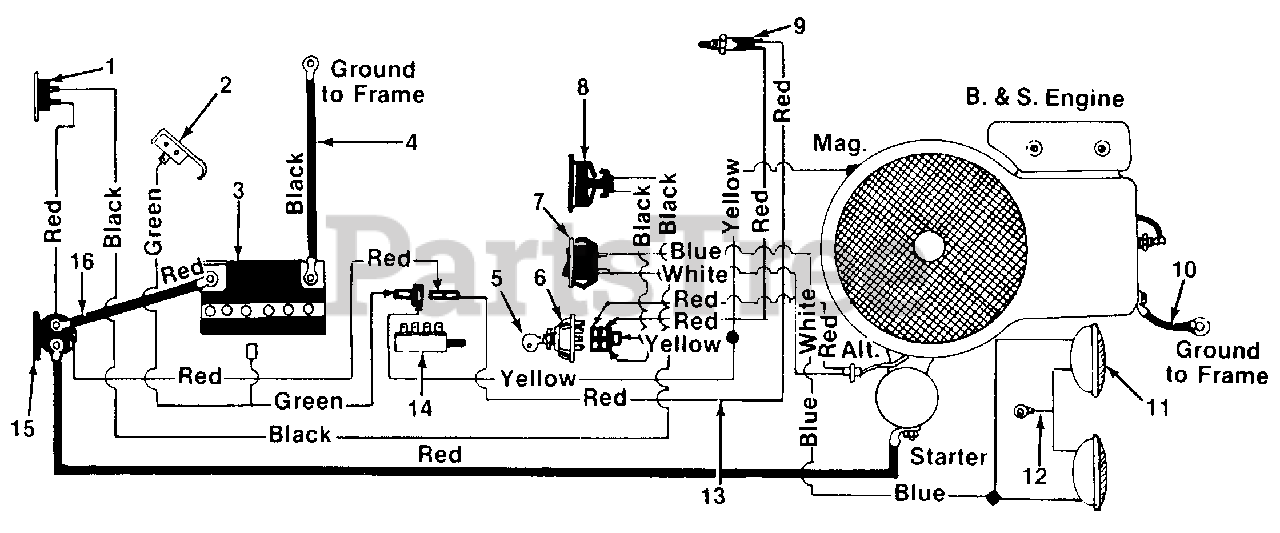

LT-112 (135-688-190) - White Outdoor 36" Lawn Tractor (1985) Electrical System Parts Diagram

36" Lawn Tractor

Electrical System Parts Diagram

  • Title

1

White Outdoor 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

2

White Outdoor 725-0759

Spring Switch
(Superseded to 753-0579)

Note: (Reverse Safety)

$

$

Not available

3

White Outdoor 725-0514

12V-Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

4

White Outdoor 725-0975

Grounding Wire 9.0" Lg.

Note: (Black Negative)

$

$

Not available

5

White Outdoor 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

6

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

7

White Outdoor 725-0634

Headlight Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

8

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

9

White Outdoor 725-0268

Safety Switch
(Superseded to 925-0268)

Note: (Clutch)

$39.99

$

Usually ships in 3-6 days

0

10

White Outdoor 725-0976

Ground Wire 7.25" Lg.
(Superseded to 725-0976A)

Note: (Black Engine)

$

$

Not available

11

White Outdoor 725-0222

Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

12

White Outdoor 725-0916

Ground Wire
(Superseded to 725-0916A)

Note: (Headlight)

$

$

Not available

13

White Outdoor 725-0939

Wire Harness

$

$

Not available

14

White Outdoor 725-0803

Safety Switch
(Superseded to 725-0803B)

Note: (P.T.O.)

$33.99

$

In Stock, only 1 left!

0

15

White Outdoor 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

16

White Outdoor 725-0926

Electric Wire w/ Boot

Note: (Red Positive)

$

$

Not available
