LT 1106 B - Electrolux/AYP Lawn Tractor DRIVE GROUP, BELT Parts Diagram

Lawn Tractor

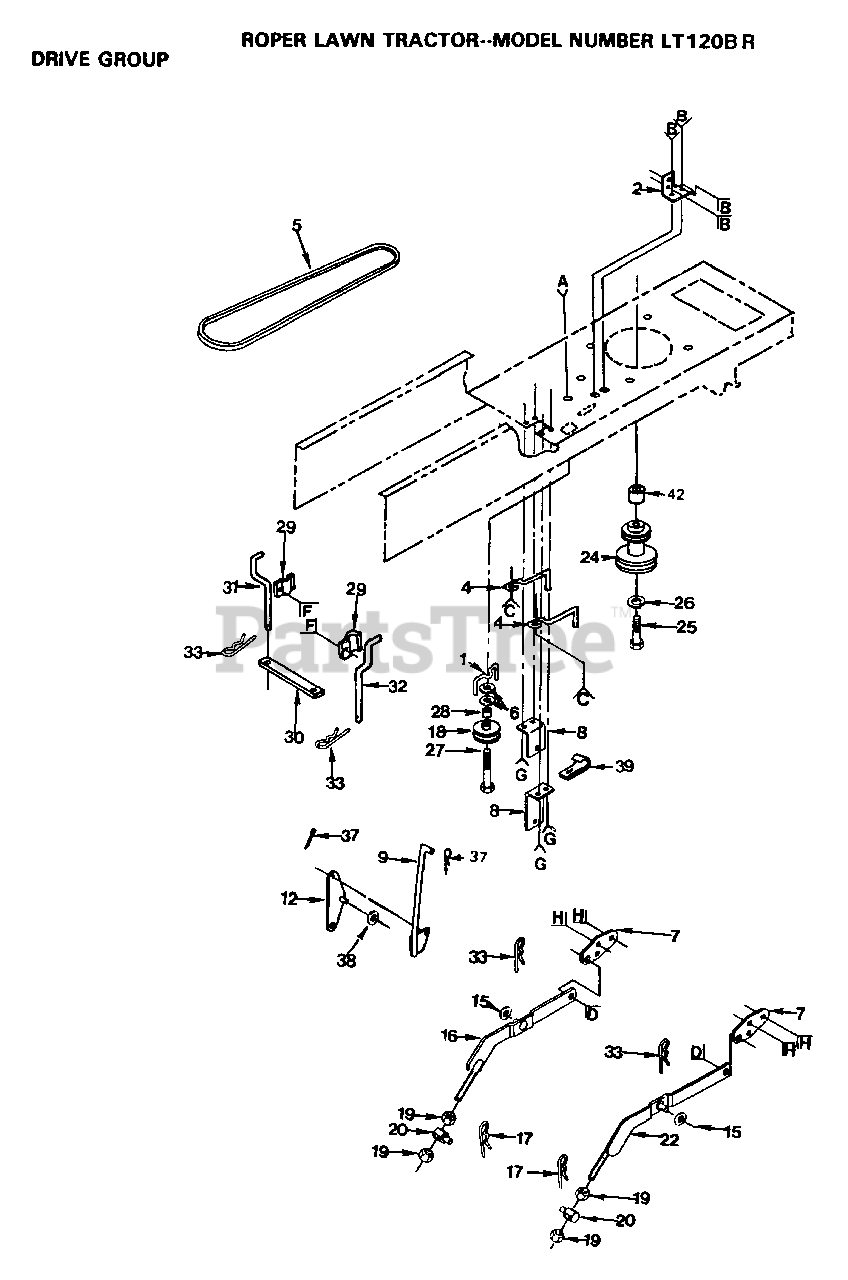

DRIVE GROUP, BELT Parts Diagram

  • Title

1

Electrolux/AYP 109070X

BELT KEEPER LT
(Superseded to 532109070)

$6.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 108236X

BRACKET LT
(Superseded to 532108236)

$2.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 105730X

"KEEPER,BLT ENG LT"
(Superseded to 532105730)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 105732X

SUB= 125907X

$

$

Not available

6

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

7

Electrolux/AYP 105864X

"BRACKET, SUSPE T"

$

$

Not available

8

Electrolux/AYP 106444X

"BRKT,BELLCRAN T"

$

$

Not available

9

Electrolux/AYP 108451X

ROD ASSEM YT

$

$

Not available

12

Electrolux/AYP 109728X

"T, BELLCRANK"

$

$

Not available

15

Electrolux/AYP 19171516

WASHER T

$2.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 105863X

SUB= 121599X

$

$

Not available

17

Electrolux/AYP 9135R

SPRING H
(Superseded to 532009135)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 4859J

SUB= 123674X

$

$

Not available

19

Electrolux/AYP 73220800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

20

Electrolux/AYP 106308X

SUB= 130171

$

$

Not available

22

Electrolux/AYP 105862X

SUB= 121598X

$

$

Not available

24

Electrolux/AYP 105731X

SUB= 137326

$

$

Not available

25

Electrolux/AYP 74770728

BOLT RER
(Superseded to 874770728)

$2.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 106190X

CLAMP LT
(Superseded to 532106190)

$

$

Not available

30

Electrolux/AYP 109370X

SUB= 123770X

$

$

Not available

31

Electrolux/AYP 109368X

SUB= 123662X

$

$

Not available

32

Electrolux/AYP 109369X

SUB= 123663X

$

$

Not available

33

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

37

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

38

Electrolux/AYP 19131410

WASHER
(Superseded to 819131410)

$1.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 5320R

INSUL CLIP T
(Superseded to 532005320)

$5.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 6404J

SPACER T
(Superseded to 532006404)

$4.99

$

Usually ships in 3-10 days

0
