LT 11001 (83132) - Snapper Lawn Tractor, 11hp Transmission Assembly Parts Parts Diagram

Lawn Tractor, 11hp

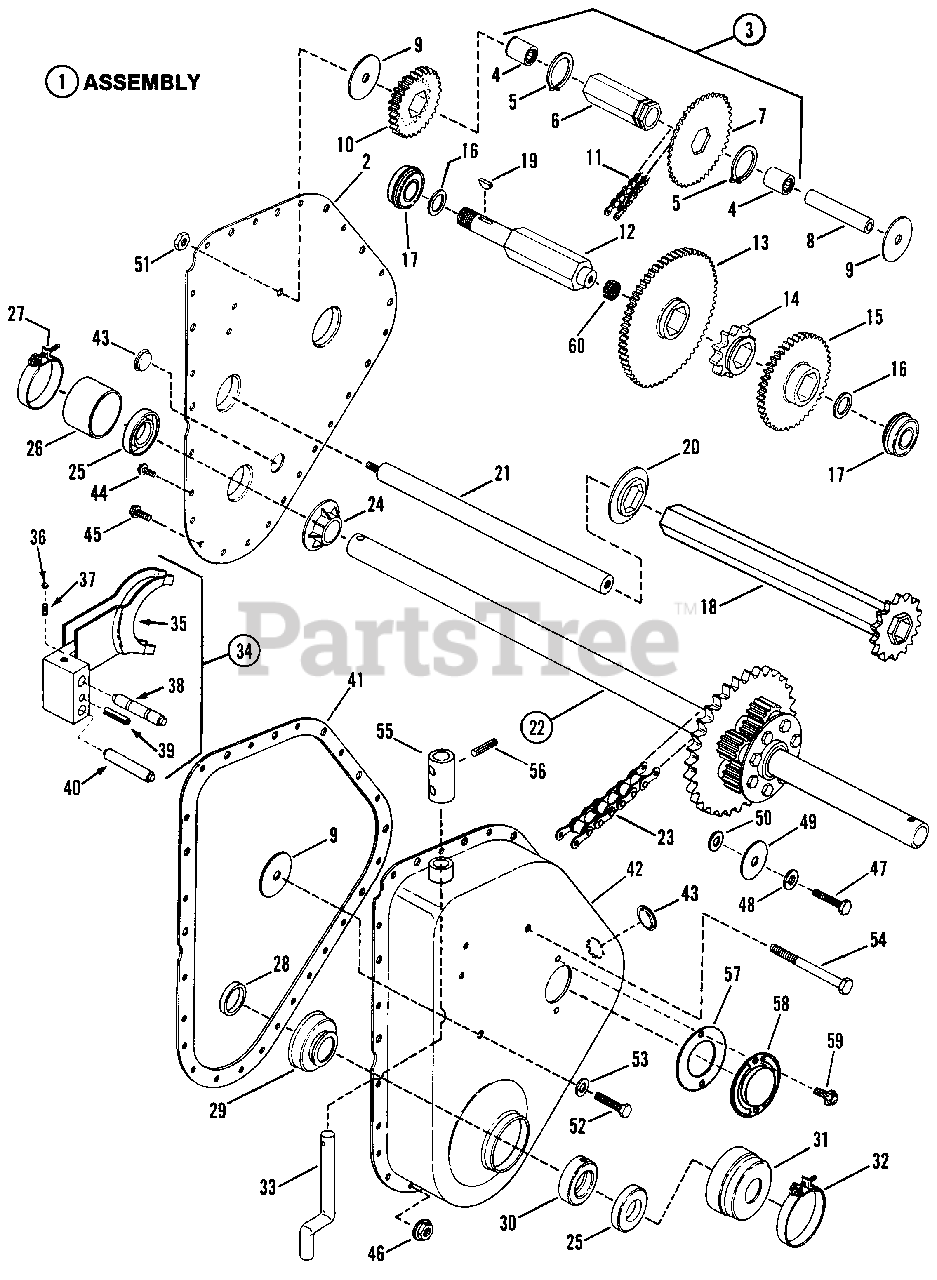

Transmission Assembly Parts Parts Diagram

  • Title

1

Snapper 7059846

ASSEMBLY, TRANSMISSION

Note: (Includes items 2 thru 54)

$

$

Currently unavailable

2

Snapper 7057345

COVER, Transmission

Note: (Includes item 17)

$

$

Currently unavailable

3

Snapper 7051427

ASSEMBLY, Hex Tube (Short)

Note: (Includes items 4 thru 7)

$

$

Not available

4

Snapper 7011178

BEARING, Needle

$

$

Not available

5

Snapper 7014470

RING, Retaining

$1.99

$

In Stock, only 3 left!

0

6

Snapper 7051455

TUBE, Hex
(Superseded to 7051455YP)

Note: (Includes two item $)

$92.99

$

Usually ships in 2-12 days

0

7

Snapper 7014448

SPROCKET, 46 Tooth (#35)
(Superseded to 7014448YP)

$53.99

$

Usually ships in 2-12 days

0

8

Snapper 7021898

RACE, Bearing
(Superseded to 7021898YP)

$17.99

$

Usually ships in 2-12 days

0

9

Snapper 7032255

THRUST WASHER

$

$

Not available

10

Snapper 7040499

CLUSTER GEAR
(Superseded to 7040499YP)

$245.99

$

Usually ships in 2-12 days

0

11

Snapper 7014490

CHAIN, 56 Pitch (#35)
(Superseded to 7014490YP)

$21.99

$

In Stock, only 1 left!

0

12

Snapper 7027633

SHAFT, Third Reduction (4.777" Long)(1984)
(Superseded to 7027633YP)

$43.99

$

Usually ships in 2-12 days

0

12

Snapper 7027647

SHAFT, Third Reduction (6.027" Long)(1985)
(Superseded to 7027647YP)

$25.99

$

Usually ships in 2-12 days

0

13

Snapper 7018596

GEAR, 67 Tooth, 12 Pitch
(Superseded to 7018596YP)

$136.99

$

Usually ships in 2-12 days

0

14

Snapper 7018598

SPROCKET, 10 Tooth (#50)
(Superseded to 7018598YP)

$101.99

$

Usually ships in 2-12 days

0

15

Snapper 7018597

GEAR, 47 Tooth, 12 Pitch
(Superseded to 7018597YP)

$193.99

$

Usually ships in 2-12 days

0

16

Snapper 7010690

SHIM WASHER
(Superseded to 7010690YP)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7010756

BEARING
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

18

Snapper 7051584

ASSEMBLY, Drive Hex Tube
(Superseded to 7051584YP)

Note: Was 51429

$92.99

$

In Stock, only 4 left!

0

19

Snapper 7010211

KEY, Woodruff (#9)
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 17

0

20

Snapper 7010988

SPECIAL WASHER (Hex Insert)
(Superseded to 7010988YP)

$4.49

$

In Stock, Qty 15

0

21

Snapper 7051607

SHAFT, Drive Tube Support
(Superseded to 7051607YP)

Note: Was 21908

$38.99

$

Usually ships in 2-12 days

0

22

DIFFERENTIAL (NLA)

Note: (See "Rear Axle-Differential" for Breakdown); Not available assembled as shown

$

$

Not available

23

Snapper 7014444

CHAIN, 42 Pitch (#50)
(Superseded to 7014444YP)

$39.99

$

Usually ships in 2-12 days

0

24

Snapper 7014446

SPECIAL WASHER

$1.99

$

In Stock, Qty 7

0

25

Snapper 7011817

OIL SEAL
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

26

Snapper 7031732

CAP, Seal
(Superseded to 7031732YP)

$6.49

$

In Stock, Qty 20+

0

27

Snapper 7011037

CLAMP, 1-7/8" Hose
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

28

Snapper 7021899

SPACER, Bearing

$

$

Not available

29

Snapper 7018822

BEARING, Ball
(Superseded to 7018822YP)

Note: Was 14400

$74.99

$

In Stock, Qty 6

0

30

Snapper 7014401

COLLAR, Lock
(Superseded to 7014401YP)

$26.99

$

Usually ships in 2-12 days

0

31

Snapper 7014541

CAP, Dust Seal
(Superseded to 7014541YP)

$

$

Not available

32

Snapper 7014542

CLAMP, For 2.69" Hose

$

$

Not available

33

Snapper 7032309

ROD, (HI-LO Range) Shift
(Superseded to 7032309YP)

$30.99

$

Usually ships in 2-12 days

0

34

Snapper 7057330

ASSEMBLY, HI-LO Shifter
(Superseded to 7057330YP)

Note: (Includes Items 35 thru 39)

$148.99

$

Usually ships in 2-12 days

0

35

Snapper 7047833

FORK, Shift
(Superseded to 7047833YP)

$153.99

$

Usually ships in 2-12 days

0

36

Snapper 7014469

BALL, Detent
(Superseded to 7014469YP)

$2.99

$

Usually ships in 2-12 days

0

37

Snapper 7023252

SPRING, Detent Ball
(Superseded to 7023252YP)

Note: Was 14500

$6.99

$

Usually ships in 2-12 days

0

38

Snapper 7021900

GUIDE-PIN, Detent
(Superseded to 7021900YP)

$30.99

$

Usually ships in 2-12 days

0

39

Snapper 7090842

ROLL-PIN, 1/4 x 1-1/4"
(Superseded to 7090842YP)

$4.49

$

In Stock, only 2 left!

0

40

Snapper 7021901

GUIDE-PIN, Shift
(Superseded to 7021901YP)

$9.49

$

Usually ships in 2-12 days

0

41

Snapper 7019962

GASKET, Cover to Case
(Superseded to 7019962YP)

$

$

Not available

42

Snapper 7057329

ASSEMBLY, Transmission Case

Note: (Includes item 17 & 29)

$

$

Currently unavailable

43

Snapper 7011024

PLUG, Oil Fill & Check
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

44

Snapper 7091819

SCREW, 1/4-20 x 5/8" HWF Self Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

45

Snapper 7090584

BOLT, 1/4-20 x 1/2" HWF (2-Locating)
(Superseded to 7090584YP)

$3.99

$

Usually ships in 2-12 days

0

46

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583 (for item 45)

$4.49

$

In Stock, Qty 5

0

47

Snapper 7090233

SCREW, 5/16-24 X 3/4" Hex Head Cap
(Superseded to 703336)

Note: Older units not updated

$4.49

$

In Stock, Qty 5

0

48

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

Note: Older units not updated

$3.49

$

In Stock, Qty 20+

0

49

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848 Older units not updated

$5.49

$

Usually ships in 2-12 days

0

50

Snapper 7090188

WASHER, 5/16 SAE
(Superseded to 703350)

Note: Older units not updated

$4.49

$

In Stock, only 1 left!

0

51

Snapper 7090499

NUT, 3/8-16 Hex Top Lock
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

52

Snapper 7090134

SCREW, 3/8-16 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

53

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

54

Snapper 7090810

SCREW, 3/8-16 x 3-1/4" Hex Head Cap

$

$

Not available

55

Snapper 7021903

COUPLING, Shift Lever
(Superseded to 7021903YP)

$35.99

$

Usually ships in 2-12 days

0

56

Snapper 7090844

ROLL-PIN, 3/16 X 3/4"
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

57

Snapper 7015016

GASKET

$2.49

$

In Stock, only 2 left!

0

58

Snapper 7032434

COVER, Bearing

$

$

Not available

59

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

60

Snapper 7015017

RING, 5/8 Tolerance
(Superseded to 7015017YP)

$34.99

$

Usually ships in 2-12 days

0
