LT 11001 (83132) - Snapper Lawn Tractor, 11hp Steering & Front Axle Parts Parts Diagram

Lawn Tractor, 11hp

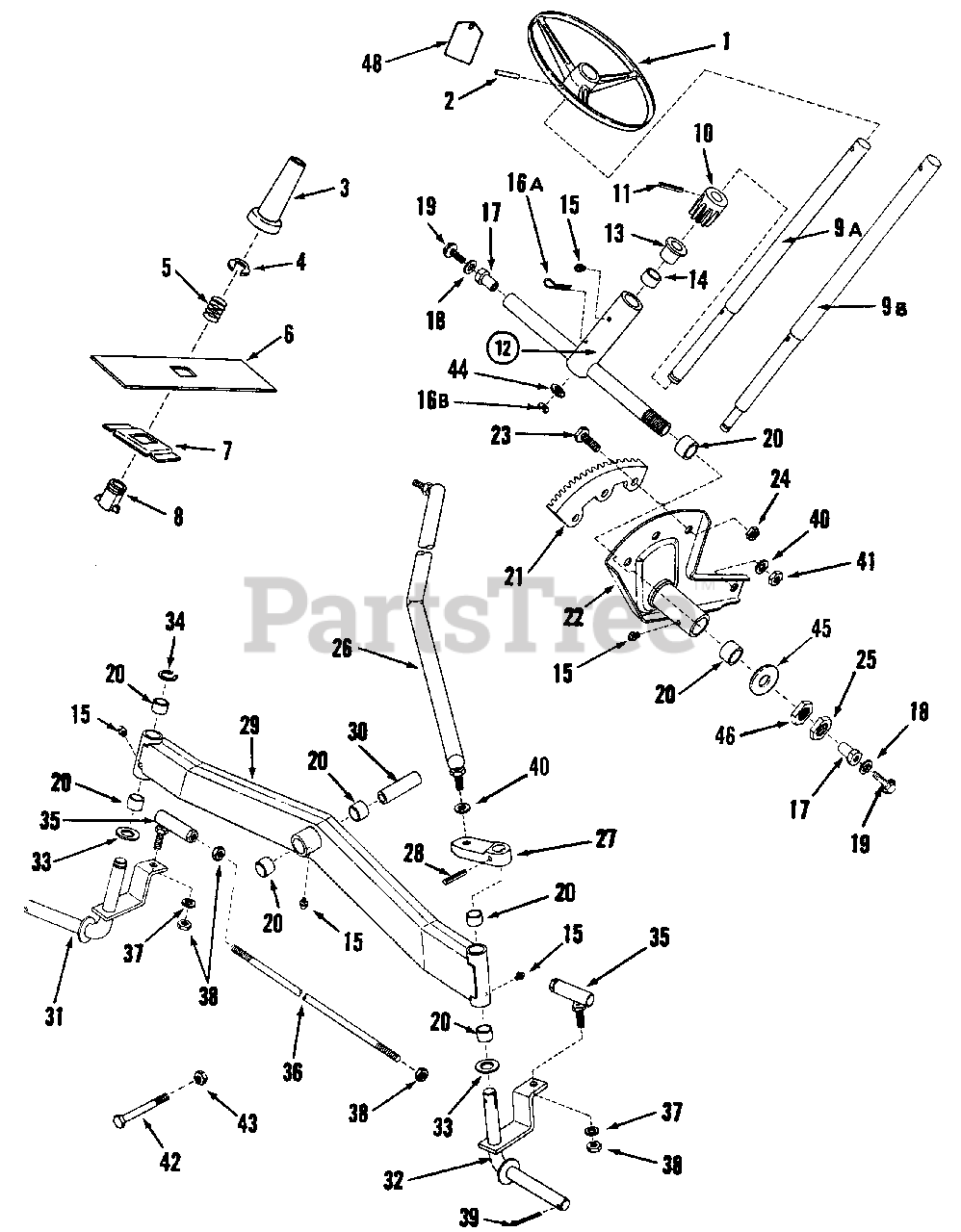

Steering & Front Axle Parts Parts Diagram

  • Title

1

Snapper 7018589

STEERING WHEEL
(Superseded to 7018589YP)

$136.99

$

Usually ships in 2-12 days

0

2

Snapper 7014437

ROLL-PIN, 1/4" x 2-1/4"
(Superseded to 7014437YP)

$4.49

$

In Stock, only 1 left!

0

3

Snapper 7018601

ACTUATOR, Steering Lock

$

$

Currently unavailable

4

Snapper 7014362

RING, 13/16" External Retaining

$

$

Not available

5

Snapper 7014402

SPRING, Actuator
(Superseded to 7014402YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7014430

COVER, Slide

$

$

Not available

7

Snapper 7032272

RISER, Steering Lock
(Superseded to 7032272YP)

$38.99

$

Usually ships in 2-12 days

0

8

Snapper 7018889

BUSHING, Steering Lock
(Superseded to 7018889YP)

Note: Was 18353

$38.99

$

In Stock, only 1 left!

0

9A

Snapper 7021889

SHAFT, Steering (Early Models)

$

$

Currently unavailable

9B

Snapper 7027646

SHAFT, Steering (Current Models)
(Superseded to 7027646YP)

$60.99

$

Usually ships in 2-12 days

0

10

Snapper 7018568

PINION, Steering

$

$

Not available

11

Snapper 7090841

ROLL-PIN, 3/16 x 1-1/2"
(Superseded to 7090841YP)

$4.49

$

In Stock, only 1 left!

0

12

Snapper 7057363

ASSEMBLY, Bearing Support

Note: Was 57331 (Includes 13 & 14)(Early Models)

$

$

Currently unavailable

13

Snapper 7014436

BEARING, Flange
(Superseded to 7014436YP)

$5.99

$

Usually ships in 2-12 days

0

14

Snapper 7014435

BUSHING
(Superseded to 7014435YP)

$3.99

$

In Stock, only 2 left!

0

15

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

16A

Snapper 7011714

HAIR-PIN (Early Models)
(Superseded to 7011714YP)

$4.49

$

Usually ships in 2-12 days

0

16B

Snapper 7090870

SNAP-RING, 5/16 (Current Models)

$

$

Not available

17

Snapper 7014358

PIVOT
(Superseded to 7014358YP)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7090793

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 7090793YP)

$3.49

$

In Stock, only 3 left!

0

20

Snapper 7012706

BEARING
(Superseded to 7012706SM)

$10.99

$

In Stock, only 4 left!

0

21

Snapper 7019717

QUADRANT, Steering
(Superseded to 7019717YP)

$59.99

$

Usually ships in 2-12 days

0

22

Snapper 7051457

ASSEMBLY, Sector

Note: (Includes two item 20, one item 15)

$

$

Currently unavailable

23

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, Grade 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

24

Snapper 7090372

NUT, 1/4-20 Hex Center Lock, Grade B or 5
(Superseded to 703954)

$

$

Not available

25

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 10

0

26

Snapper 7019724

DRAG-LINK

$

$

Not available

27

Snapper 7018621

ARM, Steering
(Superseded to 7018621YP)

$12.99

$

Usually ships in 2-12 days

0

28

Snapper 7090842

ROLL-PIN, 1/4 x 1-1/4"
(Superseded to 7090842YP)

$4.49

$

In Stock, only 2 left!

0

29

Snapper 7057326

ASSEMBLY, Front Axle
(Superseded to 7057326YP)

Note: (Includes six item 20, three item 15)

$398.99

$

Usually ships in 2-12 days

0

30

Snapper 7021882

JOURNAL, Axle
(Superseded to 7021882YP)

$17.99

$

Usually ships in 2-12 days

0

31

Snapper 7041241

KING-PIN, Right Side

Note: Was 47812

$

$

Not available

32

Snapper 7047813

KING-PIN, Left Side
(Superseded to 7047813YP)

$82.99

$

Usually ships in 2-12 days

0

33

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper 7010746

RING, 3/4" External Retaining
(Superseded to 703975)

$3.99

$

In Stock, Qty 20+

0

35

Snapper 7010745

BALL JOINT, 3/8-24 Thread
(Superseded to 1669567SM)

$15.99

$

In Stock, Qty 10

0

36

Snapper 7014403

TIE-ROD

$

$

Currently unavailable

37

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

38

Snapper 7091630

NUT, 3/8-24 Hex, Grade 2
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 2 left!

0

39

Snapper 7091516

COTTER-PIN, 5/32 x 1"
(Superseded to 703984)

Note: Was 90364

$4.49

$

In Stock, Qty 14

0

40

Snapper 7090254

WASHER, 1/2 Split Lock
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

41

Snapper 7090265

NUT, 1/2-20 Hex, Grade 2

$

$

Currently unavailable

42

Snapper 7090826

SCREW, 1/2-20 x 4" Hex Head Cap, Grade 5

$4.49

$

In Stock, only 1 left!

0

43

Snapper 7090393

NUT, 1/2-20 Hex Thin Lock
(Superseded to 7090393YP)

$3.49

$

Usually ships in 2-12 days

0

44

Snapper 7013866

WASHER, 3/8" Flat
(Superseded to 7013866YP)

$6.49

$

Usually ships in 2-12 days

0

45

Snapper 7090863

WASHER, 3/4" I.D. Flat
(Superseded to 7090863YP)

$2.99

$

Usually ships in 2-12 days

0

46

Snapper 7090281

NUT, 3/4-16 Hex

$

$

Not available

48

Snapper 7008519

NLA - Credit Hang Tag

$

$

Currently unavailable
