LT 11001 (83132) - Snapper Lawn Tractor, 11hp 60659 - Rear Weight Kit Parts Diagram

Lawn Tractor, 11hp

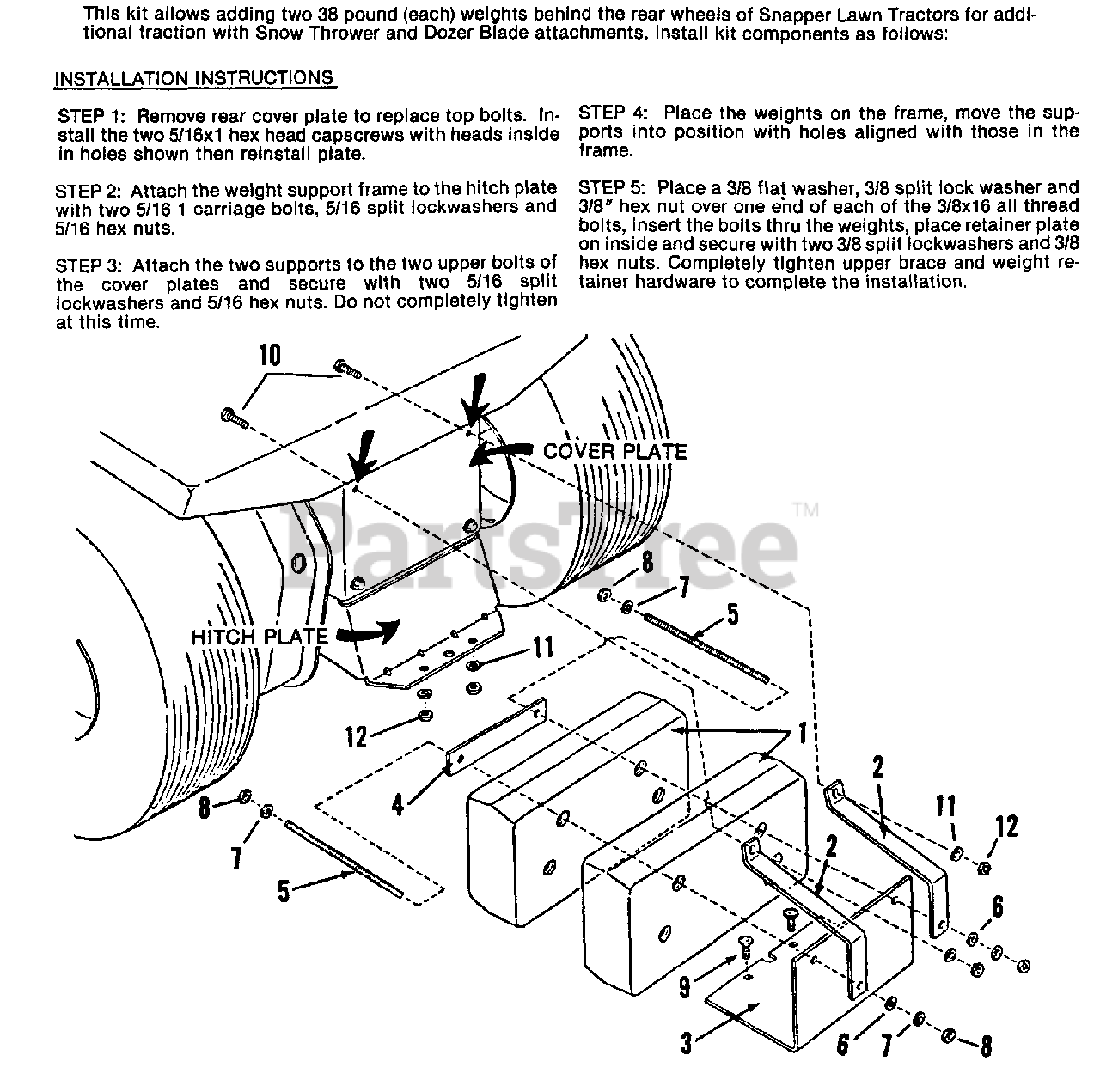

60659 - Rear Weight Kit Parts Diagram

  • Title

1

Snapper 7019759

WEIGHT, 38 Pound
(Superseded to 7019759YP)

$188.99

$

Usually ships in 2-12 days

0

2

Snapper 7038176

SUPPORT

$

$

Currently unavailable

3

Snapper 7038175

FRAME

$

$

Currently unavailable

4

Snapper 7032442

PLATE, Retainer

$

$

Currently unavailable

5

Snapper 7015002

STUD, 3/8-16 x 9"
(Superseded to 7015002YP)

$16.99

$

Usually ships in 2-12 days

0

6

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

8

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

9

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage
(Superseded to 703800)

Note: Was 90208

$3.99

$

In Stock, Qty 7

0

10

Snapper 7090209

SCREW, 5/16-18 x 1" Hex Head Cap, Grade 2
(Superseded to 7090209YP)

$2.99

$

Usually ships in 2-12 days

0

11

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

Snapper 7060659

Rear Weight Kit
(Superseded to 7060659YP)

$230.99

$

Usually ships in 2-12 days

0
