LT 11000 (89032) - Snapper Lawn Tractor, 11hp Rear Wheels Parts Diagram

Lawn Tractor, 11hp

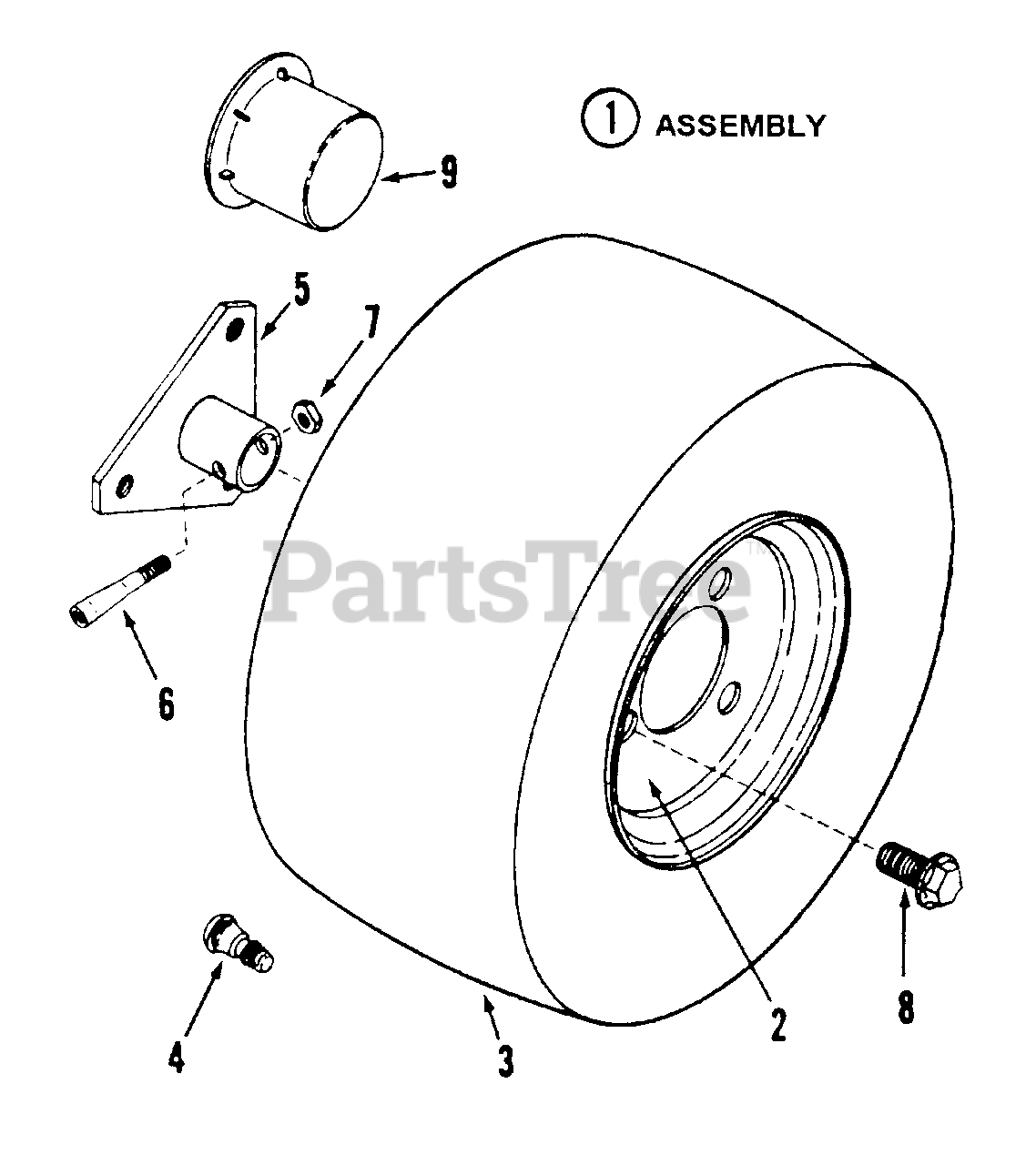

Rear Wheels Parts Diagram

  • Title
1

Snapper 7051367

* ASSEMBLY, Rear Tire & Rim 18x6.50-8

Note: (Includes items 2, 3, & 4)

$

$

Currently unavailable

2

Snapper 7012163

RIM, LT11 Rear Wheel
(Superseded to 7012163YP)

$121.99

$

Usually ships in 2-12 days

0

3

Snapper 7014349

TIRE, 18 x 6.50 x 8

$

$

Not available

4

Snapper 7012234

VALVE, Air
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7040433

HUB, Rear Wheel
(Superseded to 7040433YP)

$37.99

$

In Stock, Qty 13

0

6

Snapper 7011013

BOLT Tapered
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 20+

0

7

Snapper 7092062

NUT, 5/16-24 Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7091502

BOLT, Lug (1/2-20 x 3/4" HHCS)
(Superseded to 703431)

Note: Was 90367

$4.99

$

In Stock, Qty 20+

0

9

Snapper 7011052

HUB-CAP
(Superseded to 7011052YP)

$4.49

$

In Stock, Qty 7

0

--

Snapper 7060609

KIT, Tire Chain (18 x 6.5 x 8)(Not shown)
(Superseded to 7060609YP)

$

$

Not available

--

Snapper 7060700

KIT, Tire Chain (21 x 7.00 x 8)(Not shown)
(Superseded to 7060700YP)

$119.99

$

Usually ships in 2-12 days

0
