LT 11000 (89032) - Snapper Lawn Tractor, 11hp Primary Chain Case - Series 1 Parts Diagram

Lawn Tractor, 11hp

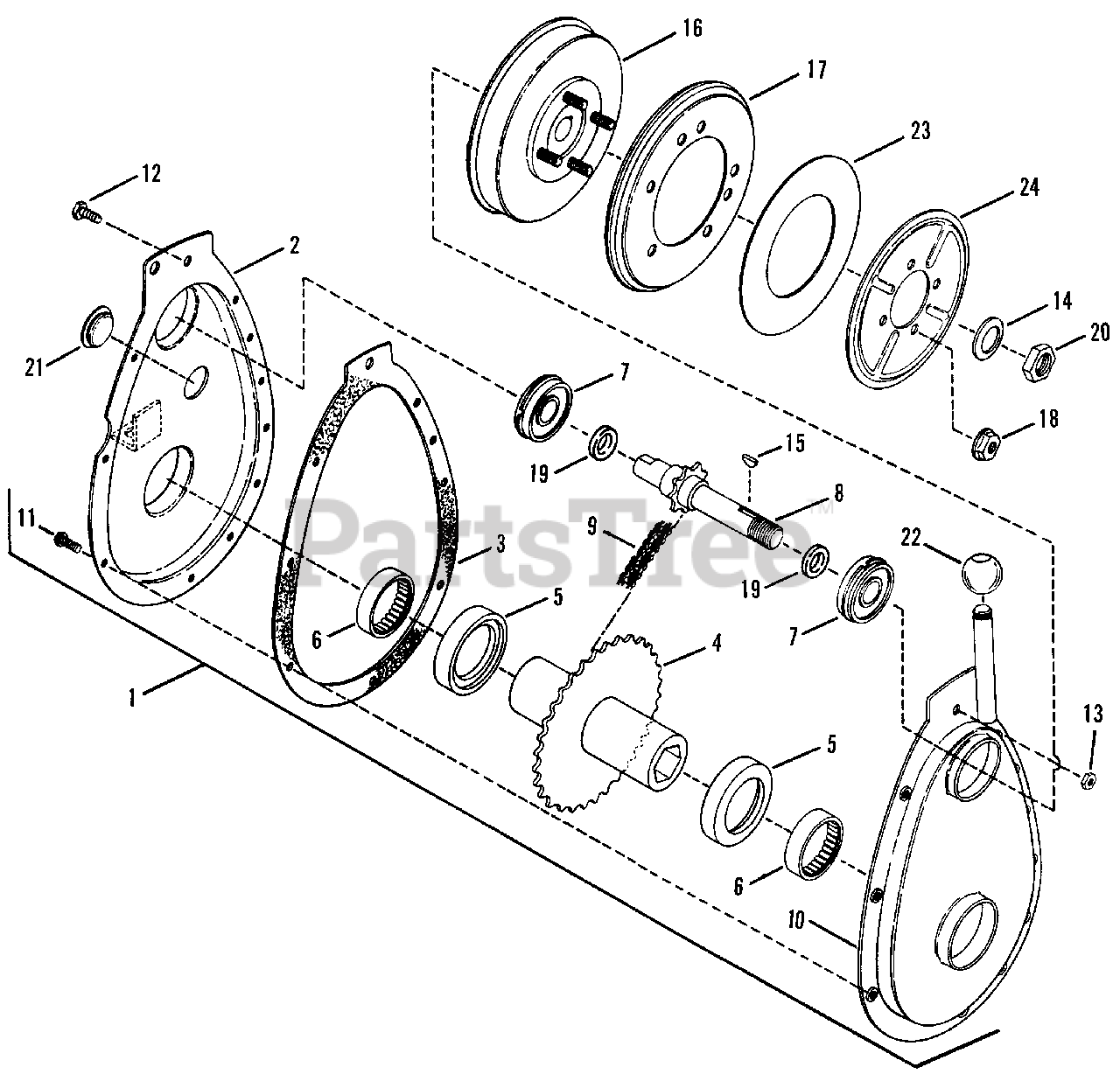

Primary Chain Case - Series 1 Parts Diagram

  • Title

1

Snapper 7059639

ASSEMBLY, Primary Chain Case

Note: (Includes items 2 thru 15)

$

$

Not available

2

Snapper 7047829

COVER, Case
(Superseded to 7047829YP)

$48.99

$

Usually ships in 2-12 days

0

3

Snapper 7028761

GASKET, Case/Cover
(Superseded to 7028761YP)

$24.99

$

In Stock, Qty 20+

0

4

Snapper 7040355

HUB & SPROCKET
(Superseded to 7040355YP)

$245.99

$

Usually ships in 2-12 days

0

5

Snapper 7011086

THRUST-WASHER
(Superseded to 7011086YP)

$4.49

$

In Stock, Qty 12

0

6

Snapper 7010942

BEARING, Needle
(Superseded to 7010942YP)

$13.99

$

In Stock, Qty 20+

0

7

Snapper 7010756

BEARING, Ball
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

8

Snapper 7010940

SHAFT, Input
(Superseded to 7010940YP)

$93.99

$

Usually ships in 2-12 days

0

9

Snapper 7010941

CHAIN, 46 Pitch (#35)
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

10

Snapper 7047830

CASE, Sprocket
(Superseded to 7047830YP)

$64.99

$

Usually ships in 2-12 days

0

11

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

12

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, Gr. 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

13

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

14

Snapper 7011121

WASHER, Belleville
(Superseded to 7011121SM)

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7010614

KEY, 1/8 x 5/8 Woodruff
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7059443

HUB, Driven Disc
(Superseded to 7600142YP)

$42.99

$

In Stock, Qty 20+

0

17

Snapper 7053103

DISC, Driven
(Superseded to 7600135YP)

Note: LT11000 used 10765

$42.99

$

In Stock, Qty 20+

0

18

Snapper 7090356

NUT, 5/8-18 Hex Center Lock
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7014508

O-RING, 5/8"
(Superseded to 7014508YP)

$4.49

$

In Stock, Qty 10

0

20

Snapper 7091601

NUT, 5/8-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

21

Snapper 7011024

PLUG (Oil fill & check)
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

22

Snapper 7014396

BUSHING, Primary Clutch Ball
(Superseded to 7014396YP)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 7014523

WASHER, Thrust
(Superseded to 7014523YP)

$4.99

$

In Stock, Qty 20+

0

24

Snapper 7032331

PLATE
(Superseded to 7032331YP)

$18.99

$

In Stock, Qty 20+

0
