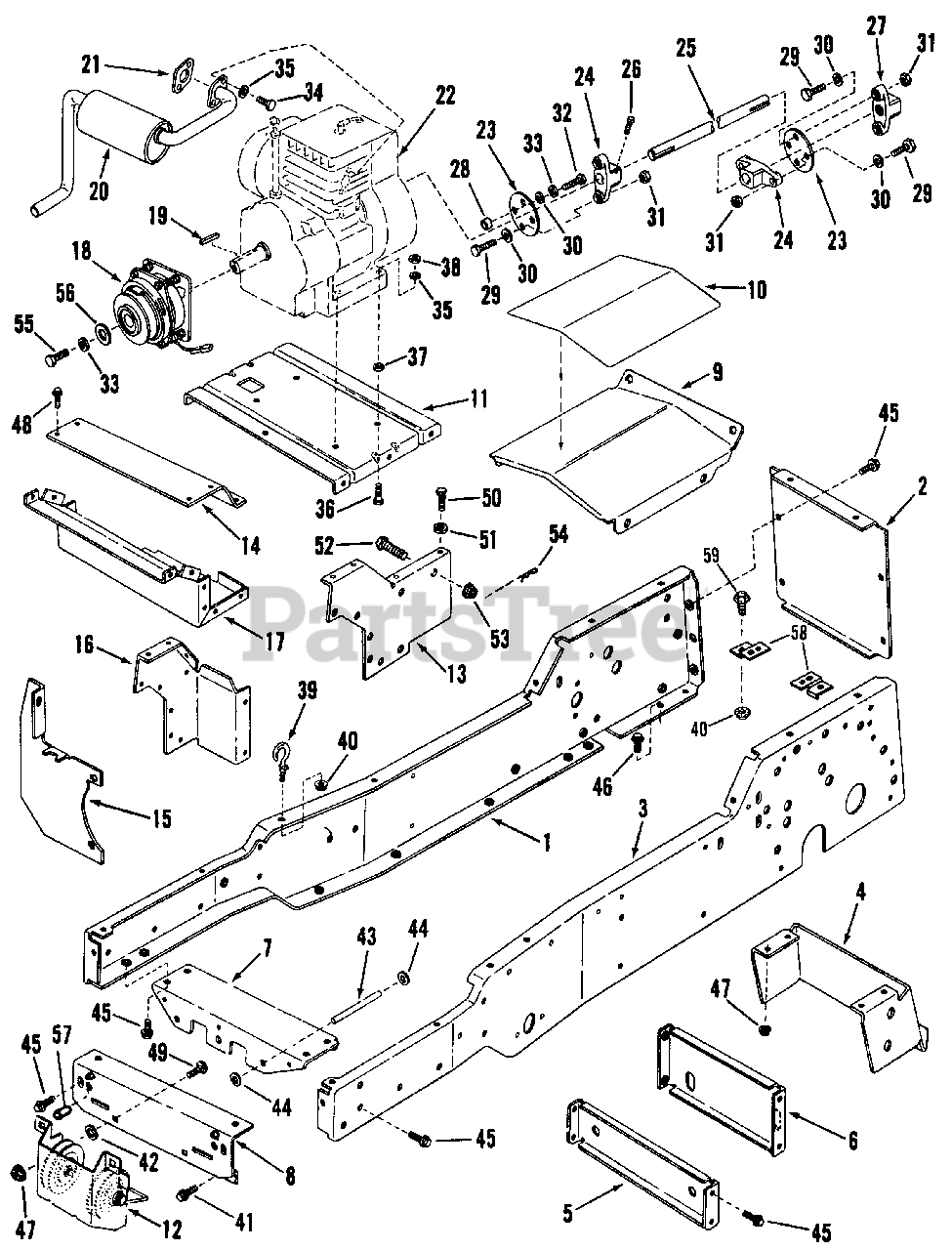

LT 11000 (89032) - Snapper Lawn Tractor, 11hp Frame, Engine & Drive Parts Parts Diagram

Lawn Tractor, 11hp

Frame, Engine & Drive Parts Parts Diagram

  • Title

1

Snapper 7035052

CHANNEL, R. H. Frame (NLA)

$

$

Currently unavailable

1

Snapper 7057374

CHANNEL, R. H. Frame '85 (NLA)

$

$

Currently unavailable

2

Snapper 7036070

PLATE, Rear Cover

$

$

Not available

2

Snapper 7038185

PLATE, Rear Cover '85
(Superseded to 7038185YP)

$41.99

$

Usually ships in 2-12 days

0

3

Snapper 7035051

CHANNEL, L.H. Frame (NLA)

$

$

Currently unavailable

3

Snapper 7057373

CHANNEL, L.H. Frame (NLA)

$

$

Currently unavailable

4

Snapper 7035029

DRAWBAR

$

$

Currently unavailable

5

Snapper 7038528

BRACE, Forward

Note: Was 36078

$

$

Not available

6

Snapper 7036079

BRACE, Rear Cross (NLA)

$

$

Currently unavailable

7

Snapper 7057325

CHANNEL, Front Axle Support

Note: Was 38051

$

$

Not available

8

Snapper 7036063

PLATE, Front Axle Support (NLA)

$

$

Currently unavailable

8

Snapper 7059667

PLATE, Front Frame '85 (NLA)

$

$

Currently unavailable

9

Snapper 7036067

COVER, Console
(Superseded to 7036067YP)

$67.99

$

Usually ships in 2-12 days

0

10

Snapper 7019734

DECAL, Console Cover

$

$

Not available

11

Snapper 7036084

BASE, Engine (NLA)

$

$

Currently unavailable

12

Snapper 7060635

ASSEMBLY, Mule Drive
(Superseded to 7060635YP)

Note: Was 57327 (See "Mule Drive Assembly" & "Spindle Assembly (41" Only)" for breakdown)

$110.99

$

Usually ships in 2-12 days

0

13

Snapper 7036083

DUCT, Engine Heat-Left Side (NLA)

$

$

Currently unavailable

14

Snapper 7036080

DUCT, Engine Heat-Top (NLA)

$

$

Currently unavailable

15

Snapper 7036087

SHIELD, Heat Duct (NLA)

$

$

Currently unavailable

16

Snapper 7036082

DUCT, Engine Heat-Right Side (NLA)

$

$

Currently unavailable

17

Snapper 7036081

DUCT, Engine Heat-Bottom (NLA)

$

$

Currently unavailable

18

Snapper 7019719

KIT, Electric Clutch
(Superseded to 7019719YP)

Note: Was 60614 (see "Electric Clutch Assembly" for breakdown)

$626.99

$

Usually ships in 2-12 days

0

19

Snapper 7018293

KEY, Square (Clutch) (NLA)

$

$

Currently unavailable

20

Snapper 7019968

MUFFLER, LT11 Engine

$

$

Not available

21

Snapper 7014509

GASKET, Exhaust
(Superseded to 7014509YP)

$7.49

$

Usually ships in 2-12 days

0

22

Snapper 253417-1131-01

* ENGINE, 11 HP Briggs Mod 253417-1131-01

$

$

Currently unavailable

23

Snapper 7014338

DISC, Flex Coupling
(Superseded to 7014338YP)

$74.99

$

In Stock, Qty 9

0

24

Snapper 7018626

HUB, Flex Coupling
(Superseded to 7018626YP)

$317.99

$

Usually ships in 2-12 days

0

25

Snapper 7021911

SHAFT, Drive 3/4 x 23-7/8"
(Superseded to 7021911YP)

$61.99

$

Usually ships in 2-12 days

0

26

Snapper 7090848

SET-SCREW, 5/16-18 x 1/2"
(Superseded to 7090848SM)

$10.99

$

In Stock, only 1 left!

0

27

Snapper 7018584

HUB, Flexible Coupling
(Superseded to 7018584YP)

Note: (Threaded center)

$68.99

$

Usually ships in 2-12 days

0

28

Snapper 7014395

SPACER, Flexible Coupling

$

$

Not available

29

Snapper 7090138

SCREW, 3/8-16 x 1" HHC
(Superseded to 7090138YP)

$3.99

$

Usually ships in 2-12 days

0

30

Snapper 7032070

WASHER, 3/8" Flat
(Superseded to 7032070YP)

$4.99

$

In Stock, only 1 left!

0

31

Snapper 7091585

NUT, 3/8-16 Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

32

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 703871)

Note: Was 90143

$4.99

$

Usually ships in 2-12 days

0

33

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

34

Snapper 7090204

SCREW, 5/16-18 x 5/8" Hex Head Cap
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

35

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

36

Snapper 7090370

SCREW, 5/16-18 x 1-3/4" Hex Head Cap

$

$

Not available

37

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

39

Snapper 7014438

HOOK, Hood Latch
(Superseded to 7014438YP)

$8.49

$

Usually ships in 2-12 days

0

40

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

41

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

42

Snapper 7013847

RETAINER, 3/8 Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

43

Snapper 7032298

STOP, Axle

$

$

Not available

44

Snapper 7013946

RETAINER, 3/8 Shaft
(Superseded to 7013946YP)

$3.99

$

Usually ships in 2-12 days

0

45

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

46

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

47

Snapper 7091619

NUT, 3/8-16 Hex Fl. Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

48

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

49

Snapper 7091547

BOLT, 3/8-16 x 3/4" Square Neck Carriage
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

50

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Hex Head Cap
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

51

Snapper 7090052

WASHER, 1/4 Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

52

Snapper 7021784

BOLT, 1/4-20 Hex Head Drilled

$

$

Not available

53

Snapper 7091545

NUT, 1/4-20 Hex Flange, Gr. A
(Superseded to 703916)

Note: Was 90477

$4.99

$

In Stock, only 2 left!

0

54

Snapper 7012431

PIN, 1/4 Hair
(Superseded to 7012431SM)

$2.99

$

Usually ships in 2-12 days

0

55

Snapper 7090160

SCREW, 3/8-24 x 1" Hex Cap, Grade 5
(Superseded to 7090160YP)

$3.49

$

In Stock, only 2 left!

0

56

Snapper 7032011

WASHER, Pull Bar

$

$

Currently unavailable

57

Snapper 7014804

RELIEF, Strain
(Superseded to 7014804YP)

$3.99

$

Usually ships in 2-12 days

0

58

Snapper 7051909

BRACKET, Rear Fender Mtg.

Note: Was 32433

$

$

Not available

59

Snapper 7091303

BOLT, 5/16-18 x 1" Hex Flange Lock Bolt
(Superseded to 703800)

Note: Was 90208

$3.99

$

In Stock, Qty 7

0
