LT 110 FR - Electrolux/AYP Lawn Tractor STEERING, FRONT AXLE AND WHEELS Parts Diagram

Lawn Tractor

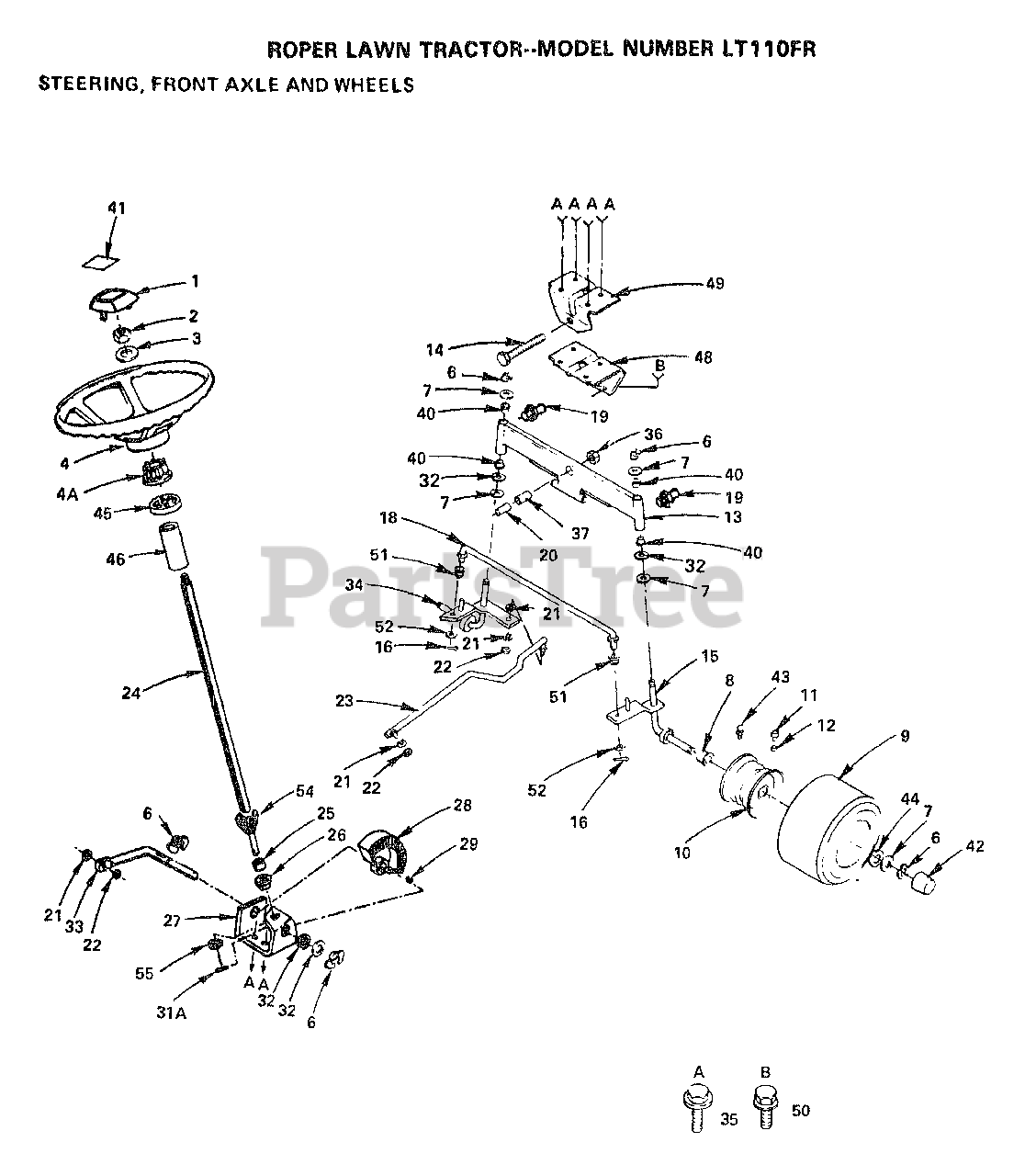

STEERING, FRONT AXLE AND WHEELS Parts Diagram

  • Title

1

Electrolux/AYP 100710L

INSERT-WHEEL LT
(Superseded to 532100710)

$

$

Not available

2

Electrolux/AYP 73360800

NUT
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

3

Electrolux/AYP 100712K

WASHER
(Superseded to 532100712)

$

$

Not available

4

Electrolux/AYP 100713N

SUB= 150547

$

$

Not available

4A

Electrolux/AYP 100711L

ADAPTER LT
(Superseded to 587738905)

$9.49

$

In Stock, Qty 8

0

5

Electrolux/AYP 109816X

NYLINER T
(Superseded to 532109816)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 19252016

SUB= 121749X

$

$

Not available

8

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 106222X

SUB= 122073X
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 59904

TUBE.5.3/4.5/6
(Superseded to 532059904)

$37.99

$

In Stock, Qty 7

0

10

Electrolux/AYP 106732X

SUB= 106732X417

$

$

Not available

11

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

12

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

13

Electrolux/AYP 108075X

FRONT AXLE
(Superseded to 532108075)

$

$

Not available

14

Electrolux/AYP 74761060

BOLT LT
(Superseded to 874761060)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 105654X

SUB= 130524

$

$

Not available

16

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 105715X

ROD-TIE LT

$

$

Not available

19

Electrolux/AYP 6855M

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

20

Electrolux/AYP 105726X

SUB= 154391

$

$

Not available

21

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 105727X

LINK-DRAG LT
(Superseded to 532105727)

$

$

Not available

24

Electrolux/AYP 109556X

SHAFT ASM T

$

$

Not available

25

Electrolux/AYP 74580

SHAFT SPACER LT

$

$

Not available

26

Electrolux/AYP 71208

BUSHING
(Superseded to 532071208)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 109432X

SUB= 110150X

$

$

Not available

28

Electrolux/AYP 108684X

GEAR.SECTOR.HYT

$

$

Not available

29

Electrolux/AYP 106126X

KEY-WOODRUFF LT

$

$

Not available

30

Electrolux/AYP 19212016

WASHER D
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

31A

Electrolux/AYP 2882J

DRIVE PIN

$

$

Not available

32

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

33

Electrolux/AYP 108683X

ROD STEERING T

$

$

Not available

34

Electrolux/AYP 105656X

SPINDLE-LH LT
(Superseded to 532105656)

$

$

Not available

35

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

36

Electrolux/AYP 73901000

"NUT-LOC,FLANGE LT"
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 105725X

SUB= 110438X

$

$

Not available

40

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

41

Electrolux/AYP 104590X

DECAL - STEERING WHEEL

$

$

Not available

42

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 278H

FITTING LT
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 19252616

SUB= 121748X

$

$

Not available

45

Electrolux/AYP 106943X

SPACER LT

$

$

Not available

46

Electrolux/AYP 106944X

TUBE LT

$

$

Not available

48

Electrolux/AYP 105664X

SUPPORT.SADDLE.FT
(Superseded to 532105664)

$9.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 105663X

SUPPORT-SADDL T
(Superseded to 532105663)

$

$

Not available

50

CHECK WITH SUPPLIER

$

$

Not available

51

Electrolux/AYP 102792X

SUB= 126847X

$

$

Not available

52

Electrolux/AYP 19131416

WASHER
(Superseded to 819131414)

$6.49

$

In Stock, only 2 left!

0

54

Electrolux/AYP 108685X

GEAR PINION T

$

$

Not available

55

Electrolux/AYP 101930X

WASHER YTV

$

$

Not available
