LT 110 FR - Electrolux/AYP Lawn Tractor 38" MOWER Parts Diagram

Lawn Tractor

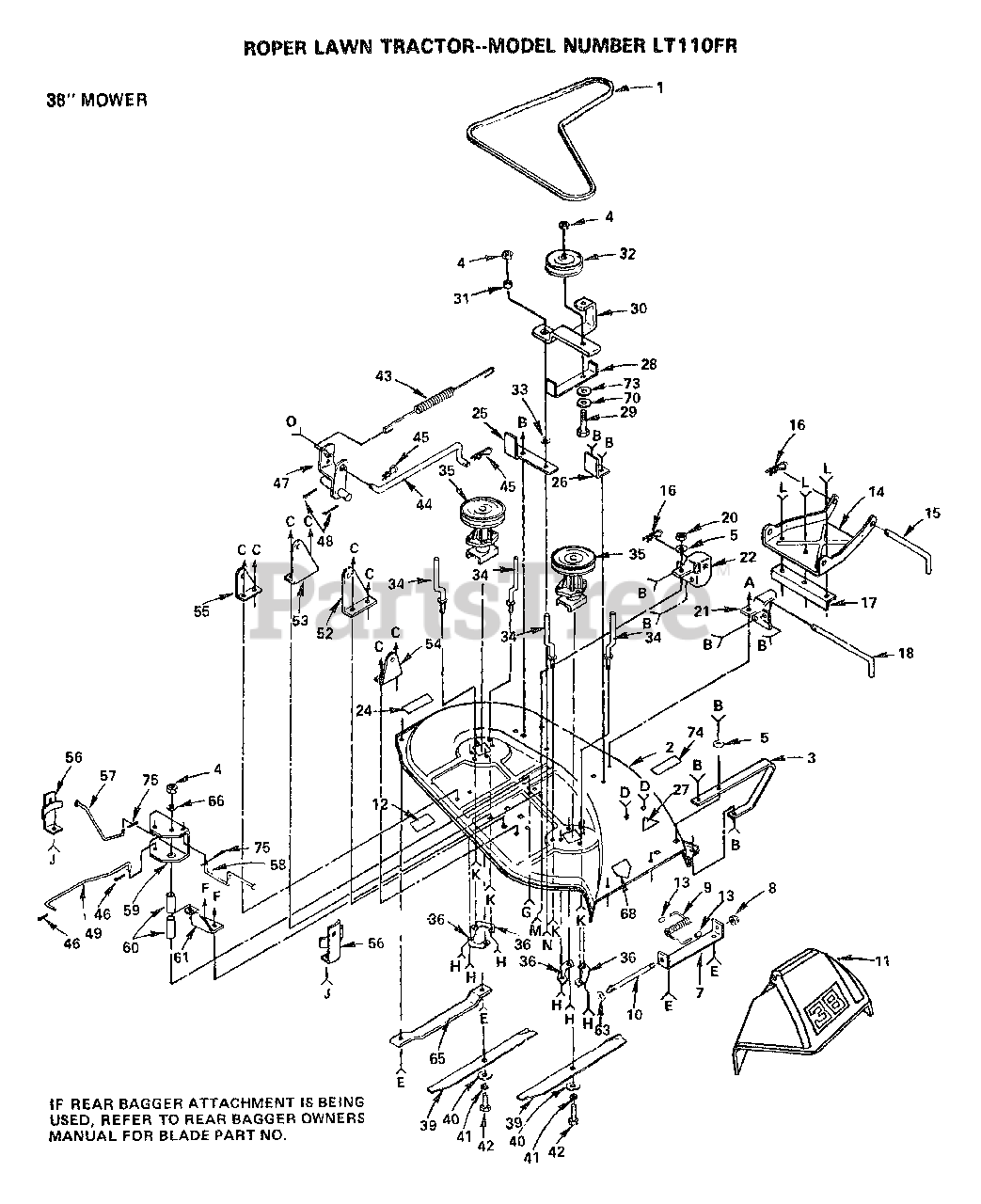

38" MOWER Parts Diagram

  • Title
1

Electrolux/AYP 106085X

BELT-V.79.1.MWR
(Superseded to 532106085)

$43.99

$

Usually ships in 3-10 days

0

2

$

$

Not available

3

Electrolux/AYP 8417J

SUB= 128772

$

$

Not available

4

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 105896X

SUB= 137607
(Superseded to 532105896)

$

$

Not available

8

Electrolux/AYP 5846R

SUB= 110452X

$

$

Not available

9

Electrolux/AYP 106734X

SUB= 123713X

$

$

Not available

10

Electrolux/AYP 106735X

ROD-HINGE T
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 106736X

DEFLECTOR-SHLD T
(Superseded to 532106736)

$

$

Not available

12

Electrolux/AYP 105814X

DECAL.LT
(Superseded to 532105814)

$

$

Not available

13

CHECK WITH SUPPLIER

$

$

Not available

14

Electrolux/AYP 105662X

LINK.PARALLEL
(Superseded to 532105662)

$

$

Not available

15

Electrolux/AYP 105744X

"ROD, FRT. PARAL T"
(Superseded to 532105744)

$

$

Not available

16

Electrolux/AYP 3146R

RETAINER.SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 105872X

LINK STOP
(Superseded to 583646901)

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 105743X

SUB= 109835X

$

$

Not available

20

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 105659X

SUB= 110095X

$

$

Not available

22

Electrolux/AYP 105660X

SUB= 109597X

$

$

Not available

24

Electrolux/AYP 3713J

DECAL INSTRUCTION CAUTION
(Superseded to 532003713)

$

$

Not available

25

Electrolux/AYP 106295X

SUB= 109503X

$

$

Not available

26

Electrolux/AYP 105850X

SUB= 109504X

$

$

Not available

27

Electrolux/AYP 106975X

DECAL - SAFETY STANDARD

$

$

Not available

28

Electrolux/AYP 106461X

SUB= 126756X

$

$

Not available

29

Electrolux/AYP 74760632

SUB= 74930632

$

$

Not available

30

Electrolux/AYP 108832X

SUB= 127163X

$

$

Not available

31

Electrolux/AYP 106902X

SPACER RETAINER
(Superseded to 532106902)

$2.99

$

In Stock, only 2 left!

0

32

Electrolux/AYP 102403X

IDLER-FLAT T
(Superseded to 532102403)

$39.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 106513X

"WASHER, WEAR LT"
(Superseded to 532106513)

$6.99

$

In Stock, only 4 left!

0

34

Electrolux/AYP 102669X

BELT KEEPER LT

$

$

Not available

35

Electrolux/AYP 105891X

SUB= 121687X

$

$

Not available

36

Electrolux/AYP 100668L

SUPPORT PLATE LT
(Superseded to 532100668)

$

$

Not available

39

$

$

Not available

40

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

42

Electrolux/AYP 74610624

BOLT.3/8-24X1-1/2
(Superseded to 874610624)

$6.49

$

In Stock, only 1 left!

0

43

$

$

Not available

$

$

Not available

45

CHECK WITH SUPPLIER

$

$

Not available

46

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 109892X

ROCKSHAFT T
(Superseded to 532109892)

$

$

Not available

48

Electrolux/AYP 76020616

SUB= 76020624

$

$

Not available

49

Electrolux/AYP 108247X

ROD BRAKE LT
(Superseded to 532108247)

$8.99

$

Usually ships in 3-10 days

0

52

$

$

Not available

53

$

$

Not available

54

Electrolux/AYP 105857X

"BRKT,SUSP RH T"
(Superseded to 532105857)

$

$

Not available

55

Electrolux/AYP 108673X

"BRKT,SUSP REAR LH"
(Superseded to 532108673)

$

$

Not available

56

Electrolux/AYP 106578X

BRAKE LT
(Superseded to 532106578)

$46.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 106463X

"ROD, BRAKE LH LT"

$

$

Not available

58

Electrolux/AYP 108249X

ROD BRAKE LT
(Superseded to 532108249)

$30.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 106456X

"BRK,BRAKE,PVT LT"

$

$

Not available

60

Electrolux/AYP 100672K

SPACER BRAKE LTV
(Superseded to 532100672)

$

$

Not available

61

Electrolux/AYP 100673L

BRACKET SUPT LTV

$

$

Not available

63

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 18

0

65

Electrolux/AYP 7631J

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

66

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

68

$

$

Not available

70

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

73

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 106679X

DECAL.WARNING.T

$

$

Not available

75

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available
