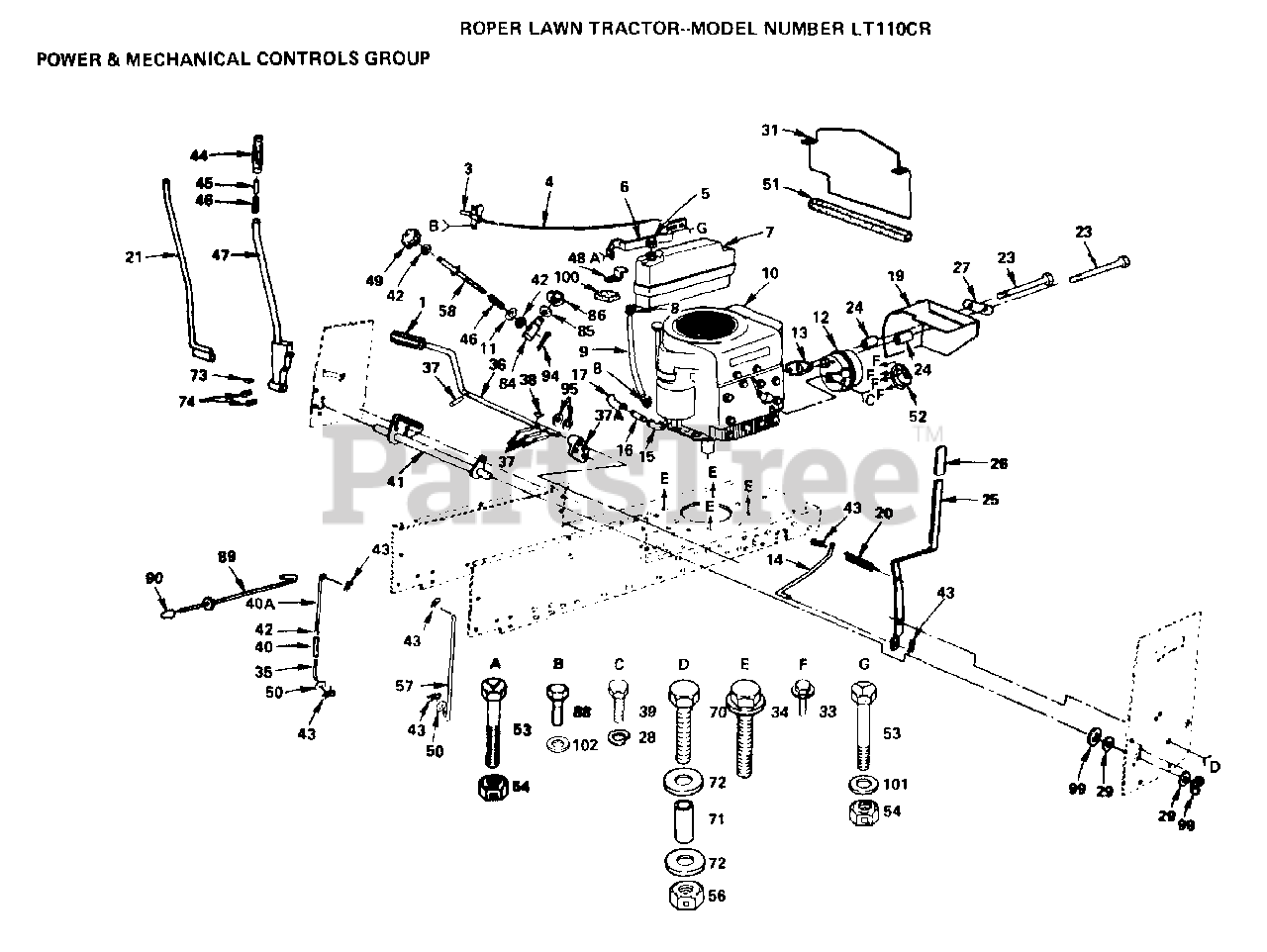

LT 110 CR - Electrolux/AYP Lawn Tractor POWER, MECHANICAL CONTROLS Parts Diagram

Lawn Tractor

POWER, MECHANICAL CONTROLS Parts Diagram

  • Title
1

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

4

$

$

Not available

5

Electrolux/AYP 8504J

SUB= 9188504J

$

$

Not available

6

Electrolux/AYP 104800X

SUPPORT-TANK LT

$

$

Not available

7

Electrolux/AYP 3615J

SUB= 121280X

$

$

Not available

8

Electrolux/AYP 6999R

SUB= 123487X

$

$

Not available

9

Electrolux/AYP 7833R

HOSE T
(Superseded to 532007833)

$4.99

$

Usually ships in 3-10 days

0

10

$

$

Not available

11

Electrolux/AYP 19131016

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

12

Electrolux/AYP 101273M

MUFFLER LTV
(Superseded to 583638801)

$72.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 1407J

SUB= 272293

$

$

Not available

$

$

Not available

15

Electrolux/AYP 13240300

STREET ELBOW LT
(Superseded to 813240300)

$7.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 13280328

PIPE NIPPLE
(Superseded to 813280328)

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

19

Electrolux/AYP 104910X

BAFFLE ASSY LT
(Superseded to 583644701)

$

$

Not available

20

Electrolux/AYP 102727X

"SPRING.EXT.8.5"""
(Superseded to 532102727)

$

$

Not available

21

Electrolux/AYP 104598X

ROD ASSY-LEVER LT

$

$

Not available

23

Electrolux/AYP 74780572

BOLT YT
(Superseded to 874780580)

$5.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 101496X

SPACER LT
(Superseded to 583639901)

$3.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 104790X

HANDLE-CLUTCH L

$

$

Not available

26

Electrolux/AYP 4617J

SUB= 532131861
(Superseded to 532131861)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 104909X

CLIP-MUFFLER LT

$

$

Not available

28

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

29

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 104913X

"VERTICAL LT, BAFL"

$2.49

$

Usually ships in 3-10 days

0

$

$

Not available

34

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

35

Electrolux/AYP 106662X

LINK LIFT LT
(Superseded to 583652001)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 8334J

SHAFT PEDAL LT

$

$

Not available

37

Murray 1572H

SUB= 2882J

$

$

Not available

$

$

Not available

38

Murray 2228M

SUB= 2228M1

$

$

Not available

39

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

40

$

$

Not available

40A

Electrolux/AYP 106185X

LINK LIFT LT

$

$

Not available

41

Electrolux/AYP 108374X

SHAFT ASSY - LIFT

$

$

Not available

42

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

43

Murray 4939M

SUB= 85902

$

$

Not available

44

Electrolux/AYP 2895H

HANDLE GRIP T
(Superseded to 583731301)

$2.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 108230X

SUB= 125925X

$

$

Not available

46

Electrolux/AYP 2876H

SPRING T
(Superseded to 532002876)

$7.49

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 104597X

LEVER ASSY LT

$

$

Not available

48

Electrolux/AYP 104799X

BRACE-TANK LT

$

$

Not available

49

$

$

Not available

50

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

51

Electrolux/AYP 104915X

SUB= 105037X

$

$

Not available

52

Electrolux/AYP 101326L

DEFLECTOR.222573
(Superseded to 532101326)

$

$

Not available

53

Electrolux/AYP 74780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

54

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

58

Electrolux/AYP 100735K

ROD ADJUST LT

$

$

Not available

70

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 100644K

BUSHING LT
(Superseded to 532100644)

$3.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 19131612

WASHER GT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

84

$

$

Not available

85

Electrolux/AYP 19151216

WASHER
(Superseded to 819151216)

$

$

Not available

86

Electrolux/AYP 12000037

KLIP RING
(Superseded to 812000037)

$6.49

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

$

$

Not available

90

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

95

$

$

Not available

99

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 6431J

PAD-SPACER T
(Superseded to 532106082)

$

$

Not available

101

Electrolux/AYP 19111416

WASHER
(Superseded to 819111416)

$

$

Not available

102

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0
