LT 110 AR - Electrolux/AYP Lawn Tractor TRANSAXLE, BELT, REAR WHEELS Parts Diagram

Lawn Tractor

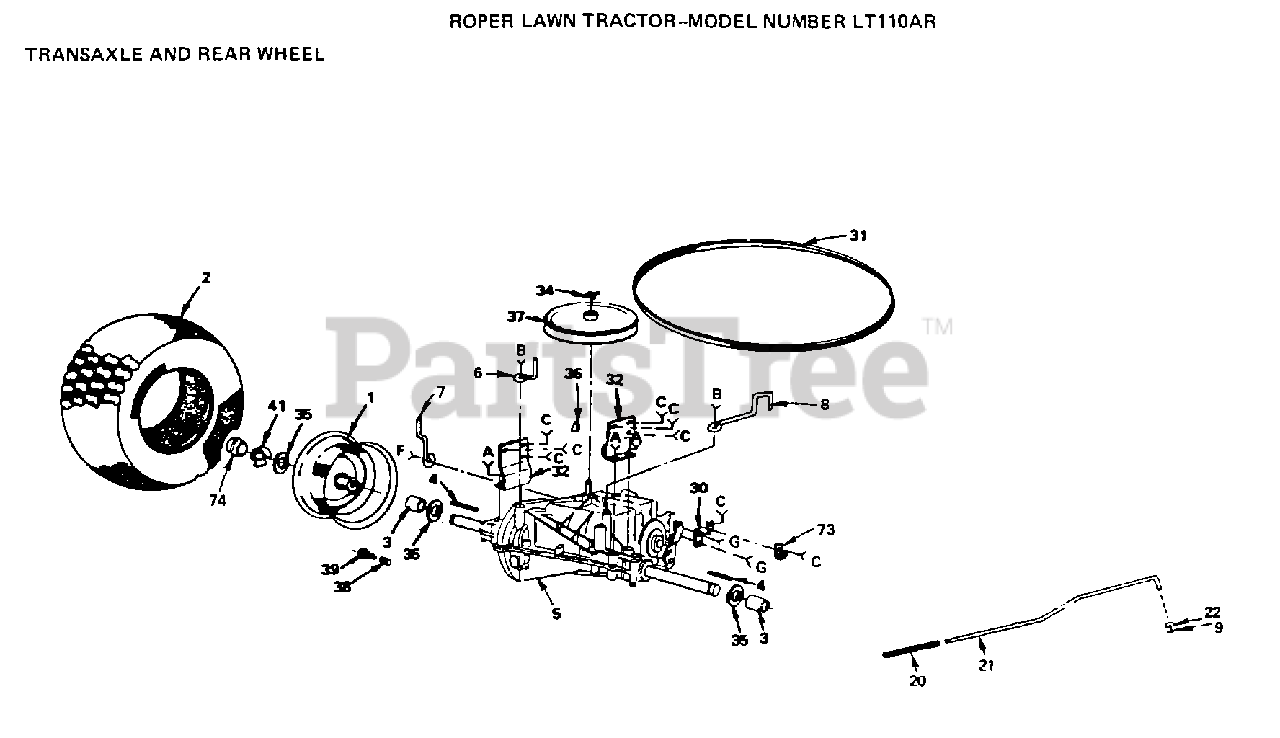

TRANSAXLE, BELT, REAR WHEELS Parts Diagram

  • Title

1

Electrolux/AYP 71652

SUB= 106108X427

$

$

Not available

2

Electrolux/AYP 71653

SUB= 122074X

$

$

Not available

Electrolux/AYP 7152J

TUBE.18X9.5-8
(Superseded to 532007152)

$74.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 2935J

WHEEL SPACER LT
(Superseded to 583731601)

$

$

Not available

4

Electrolux/AYP 2703J

SUB= 123583X

$

$

Not available

5

Electrolux/AYP 102050X

NLA

$

$

Not available

6

Electrolux/AYP 1642J

BELT SNUBBER T

$

$

Not available

7

Electrolux/AYP 104773X

NLA

$

$

Not available

8

Electrolux/AYP 104771X

RETAINER, BELT

$

$

Not available

9

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 101319L

NLA

$

$

Not available

21

Electrolux/AYP 102506X

SUB= 105968X

$

$

Not available

22

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 678H480

STRAP - TORQUE

$

$

Not available

31

Electrolux/AYP 104778X

SUB= 144200

$

$

Not available

32

Electrolux/AYP 678H479

SUB= 109167X

$

$

Not available

34

Electrolux/AYP 12000040

KLIP RING
(Superseded to 812000040)

$6.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 19252016

SUB= 121749X

$

$

Not available

36

Murray 2228M

SUB= 2228M1

$

$

Not available

37

Electrolux/AYP 104902X

PULLEY-INPUT LT

$

$

Not available

38

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

39

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

41

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 5320R

INSUL CLIP T
(Superseded to 532005320)

$5.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 104797X

NLA

$

$

Not available
