LT-11 (137-336-190) - White Outdoor 32" Lawn Tractor (1987) Lift Assembly Parts Diagram

32" Lawn Tractor

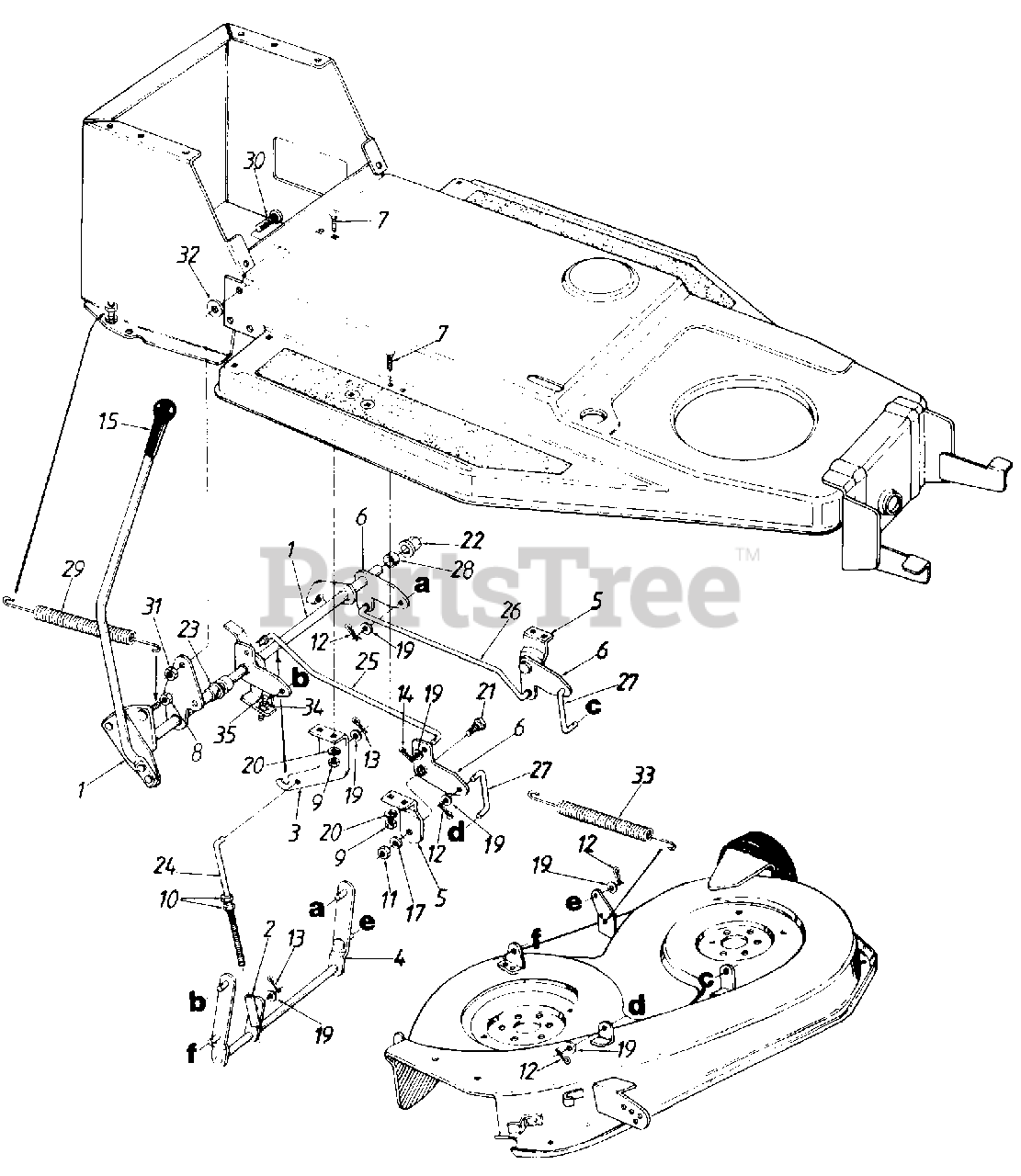

Lift Assembly Parts Diagram

  • Title
1

White Outdoor 16661

Lift Shaft Ass'y.
(Superseded to 16842)

$

$

Not available

2

White Outdoor 16682

Pivot Sleeve Ass'y.

$

$

Not available

3

White Outdoor 16683

Deck Lock Out 8rkt.

$

$

Not available

4

White Outdoor 16688

Stabilizer Ass'y.

$

$

Not available

5

White Outdoor 16692

Deck Lift Hanger

$

$

Not available

6

White Outdoor 16698

Deck Lift Float Brkt.

$

$

Not available

7

White Outdoor 710-0134

Carr. Bolt 1/4-20 X .62" Lg.

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

9

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

10

White Outdoor 712-0711

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

12

White Outdoor 714-0104

Intern. Cot-Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 714-0115

Cot-Pin 1/8" Dia.

$3.99

$

In Stock, only 2 left!

0

14

White Outdoor 714-0507

Cot-Pin 3/32" Dia.

$4.49

$

In Stock, Qty 12

0

$

$

Not available

17

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 736-0185

Fl-Wash. .406" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

21

White Outdoor 738-0281

Shld Bolt .625 Dia. x .425" Lg.

$10.99

$

In Stock, only 2 left!

0

22

White Outdoor 741-0225

Hex Flange Brg.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

23

White Outdoor 741-0495

Nyliner Flanged Brg.

$4.99

$

In Stock, Qty 20+

0

24

747-0677

J-Bolt 3/8-16 x 5.25" Lg.

$

$

Not available

25

White Outdoor 747-0678

Connecting Rod-R.H.

$

$

Not available

26

White Outdoor 747-0679

Connecting Rod-L.H.

$

$

Not available

27

$

$

Not available

$5.99

$

In Stock, only 2 left!

0

29

White Outdoor 732-0153

Spring 8.65" Lg.

$

$

Not available

30

White Outdoor 710-0793

Ribbed Neck Bolt 3/8-24 x .80" Lg.

Note: (Special)

$

$

Not available

31

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

32

White Outdoor 736-0354

Fl-Wash. 3/8" I.D.

$3.99

$

Usually ships in 3-6 days

0

33

White Outdoor 732-0564

Deck Spring 10.33" Lg.
(Superseded to 932-0564)

$

$

Not available

34

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

35

White Outdoor 710-0602

Hex Wash. Hd. Tap Scr. 5/16-18 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0
