LT 1050 (13AQ11CP712) - Cub Cadet 50" Lawn Tractor (2007 & Before) Command Engine Oil Pan Lubrication Parts Diagram

50" Lawn Tractor

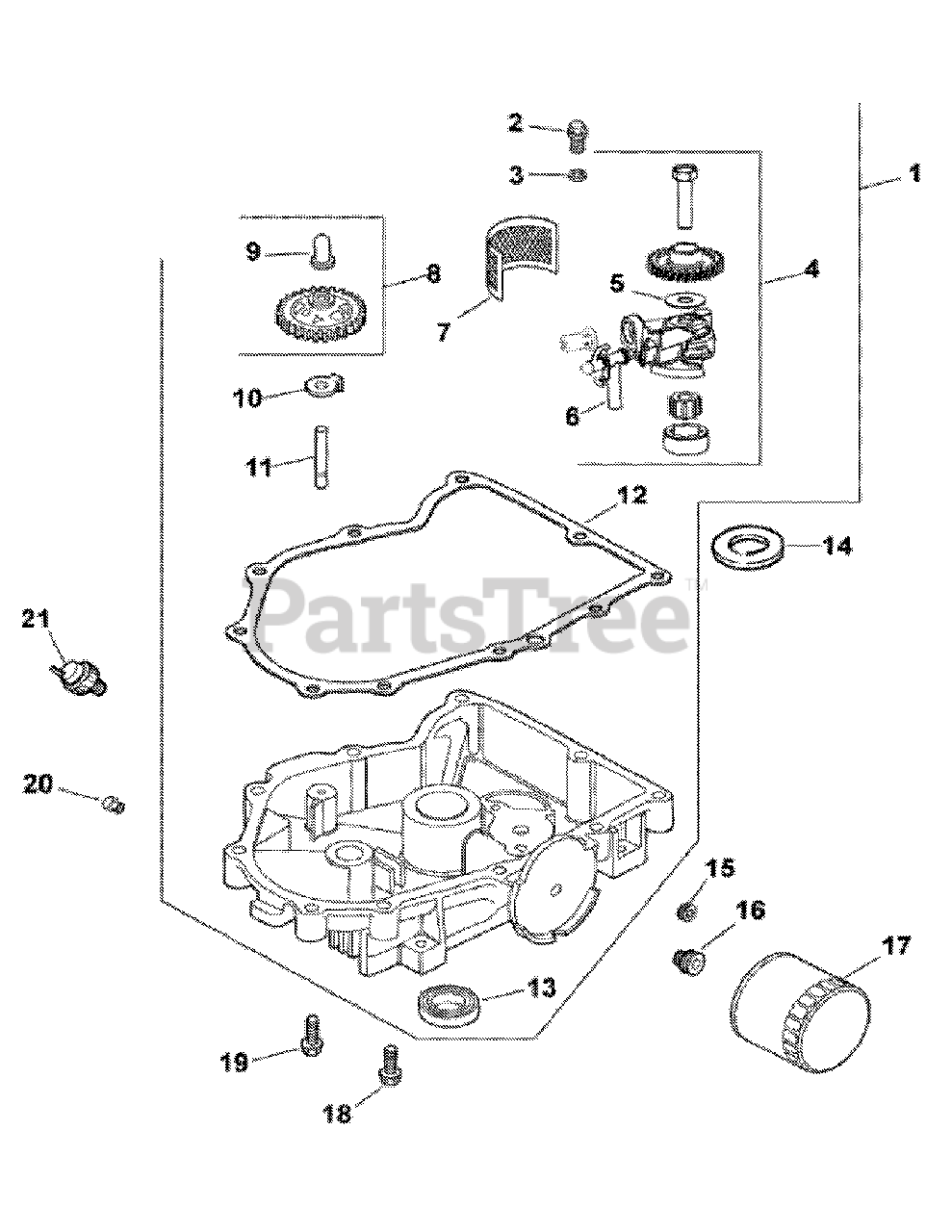

Command Engine Oil Pan Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-199-21-S

Oil Pan Kit w/Gasket
(Superseded to KH-24-199-35-S)

$337.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-M-645025-S

Hex Flange Screw
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-M-631005

Plain Washer

$

$

Not available

4

Cub Cadet KH-24-393-37-S

Oil Pump Assembly
(Superseded to KH-24-393-53-S)

$

$

Not available

5

Cub Cadet KH-24-153-01

O-Ring

$

$

Not available

6

Cub Cadet KH-24-381-11-S

Oil Pick-Up Tube

$

$

Not available

7

Cub Cadet KH-24-162-26-S

Oil Screen

$17.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-043-12

Governor Gear Kit

$

$

Not available

9

Cub Cadet KH-12-380-01

Governor Regulating Pin

$

$

Not available

10

Cub Cadet KH-24-448-02-S

Locking Tab

$2.49

$

In Stock, Qty 20+

0

11

Cub Cadet KH-12-144-02

Governor Gear Shaft

$

$

Not available

12

Cub Cadet KH-24-041-54-S

Oil Pan Gasket
(Superseded to KH-24-041-66-S)

$25.99

$

In Stock, Qty 17

0

13

Cub Cadet KH-52-032-08-S

Oil Seal (PTO End)
(Superseded to KH-25-032-06-S)

$10.99

$

In Stock, Qty 18

0

14

Cub Cadet KH-24-422-03-S

Thrust Shim

$

$

Not available

15

Cub Cadet KH-25-139-62-S

Pipe Plug

$3.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-28-136-01-S

Oil Filter Nipple

$90.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-12-050-08

Oil Filter
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

18

Cub Cadet KH-24-086-16

Hex Flange Screw
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

19

Cub Cadet KH-24-086-17-S

Hex Flange Screw

$2.49

$

In Stock, Qty 7

0

20

Cub Cadet KH-25-139-57-S

Hex Plug 3/8

$2.49

$

In Stock, only 3 left!

0

21

Cub Cadet KH-25-099-24-S

Oil Pressure Switch
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, only 4 left!

0
