LT 1050 (13AQ11CP712) - Cub Cadet 50" Lawn Tractor (2007 & Before) Command Engine Fuel System Parts Diagram

50" Lawn Tractor

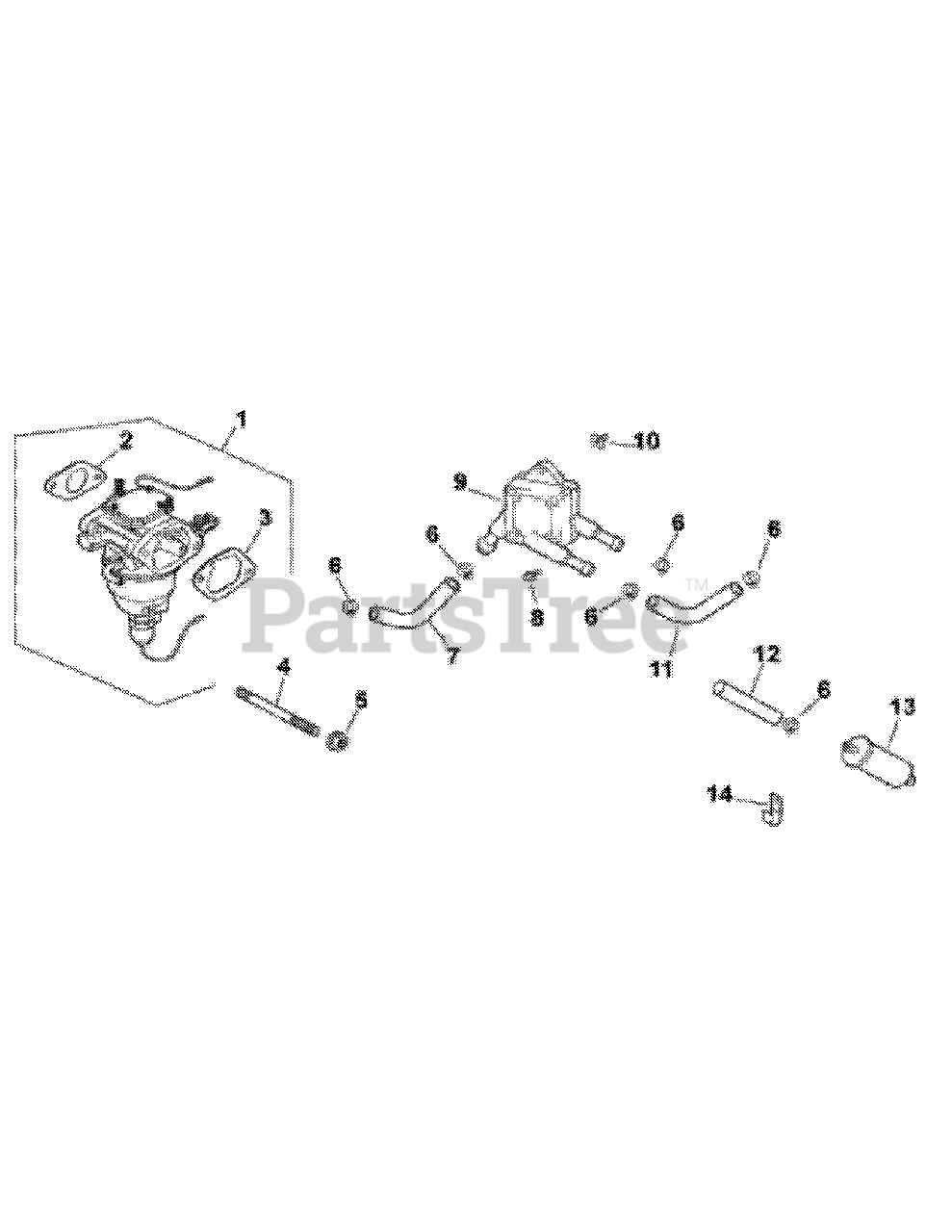

Command Engine Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-102-S

Carburetor w/Accelerator Pump

$795.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-041-52-S

Carburetor Gasket
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-041-14-S

Air Cleaner Base Gasket

$

$

Currently unavailable

4

Cub Cadet KH-M-629095-S

Stud

$3.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-M-641060-S

Hex Flange Nut

$4.49

$

In Stock, Qty 8

0

6

Cub Cadet KH-25-237-14-S

Hose Clamp
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-24-353-12

Fuel Line

$

$

Not available

8

Cub Cadet KH-24-086-12

Hex Cap Screw

$

$

Not available

9

Cub Cadet KH-24-393-16

Fuel Pump

$

$

Not available

10

Cub Cadet KH-24-100-01

Plastic Nut
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 7

0

11

Cub Cadet KH-25-353-03-S

Fuel Line

$19.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-15-353-04

Fuel Line

$

$

Not available

13

Cub Cadet KH-24-050-10-S

Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

14

Cub Cadet KH-47-154-01-S

Clip

$5.49

$

In Stock, only 4 left!

0

Cub Cadet KH-24-431-01-S

Insulating Sleeve 8" (not illustrated)
(Superseded to KH-24-431-02-S)

$6.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-18-S

Overhaul Kit (not illustrated)

$79.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-757-19

Choke Repair Kit (not illustrated)

$

$

Not available

Cub Cadet KH-24-757-20

Gasket Kit (not illustrated)

$

$

Not available

Cub Cadet KH-24-757-22

Solenoid Replacement Kit (not illustrated)

$

$

Not available

Cub Cadet KH-24-234-02-S

Float Chamber (not illustrated)

$137.99

$

Usually ships in 2-5 days

0
