LT 1046 (13AP11CH710) - Cub Cadet 46" Lawn Tractor (2007 & Before) Lift Assembly Parts Diagram

46" Lawn Tractor

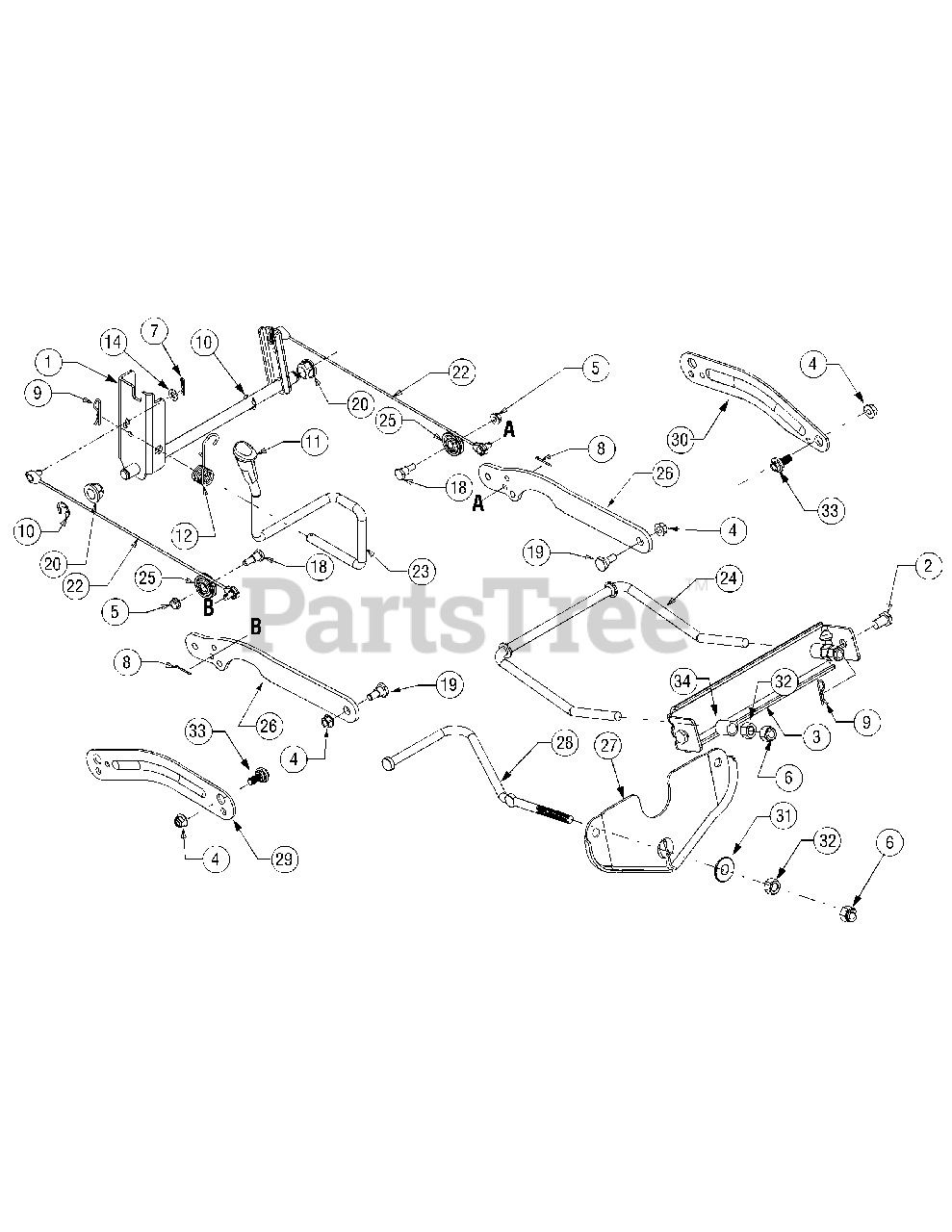

Lift Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06260

Shaft Assembly, Lift

Note: Replaces 683-04079, Tractors manufactured before September 13, 2006

$57.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 683-04223

Shaft Assembly, Lift
(Superseded to 683-04223-0637)

Note: Tractors manufactured after September 14, 2006

Variations

Cub Cadet 683-04223-0637

Lift Shaft Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 711-0332

Pin, Clevis, .50 Dia x .78 Lg
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

3

Cub Cadet 783-0720A

Bracket, Deck (46- and 50-inch Decks)
(Superseded to 783-0720C)

Variations

Cub Cadet 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

Cub Cadet 783-0720A-4008

USE 783-0720C-4008 BRACKET-AD - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 712-04063

Nut, Nylon Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 16

0

6

Cub Cadet 712-3083

Nut, Hex Lock, 1/2-13, Gr8, Nylon

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 714-0104

Pin, Cotter, .072 Dia. x 1.13 Lg

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0111

Pin, Cotter, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

9

Cub Cadet 714-04023

Pin, Click, .092 x 1.64 Lg

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 716-0106A

E-ring, .625 Dia. Shaft

$5.49

$

In Stock, only 2 left!

0

11

Cub Cadet 720-0311

Grip, Handle

$15.99

$

In Stock, only 1 left!

0

12

Cub Cadet 732-0874

Spring, Torsion

$4.99

$

In Stock, Qty 6

0

18

Cub Cadet 738-0138A

Screw, Hex Cap, 5/16-18x.620 Gr2

$6.99

$

In Stock, only 2 left!

0

19

Cub Cadet 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

22

Cub Cadet 746-0968

Cable, Lift, 16.16 Lg

$19.99

$

In Stock, Qty 20+

0

23

Cub Cadet 747-04155

Handle, Lift

Note: Tractors manufactured before September 13, 2006

$

$

Not available

23

Cub Cadet 747-04447

Handle, Lift

Note: Tractors manufactured after September 14, 2006

$44.99

$

In Stock, only 3 left!

0

24

Cub Cadet 747-1130B

Rod, Deck .5" Dia. (46-inch Decks)

$41.99

$

In Stock, only 3 left!

0

24

Cub Cadet 747-1324

Rod, Deck .5" Dia. (50-inch Decks)

$58.99

$

In Stock, only 3 left!

0

25

Cub Cadet 756-1154

Pulley, Roller

$7.99

$

In Stock, only 2 left!

0

26

Cub Cadet 783-0678B

Arm, Lift (46- and 50-inch Decks)
(Superseded to 783-0678C)

Variations

Cub Cadet 783-0678B-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

Cub Cadet 783-0678B-4008

USE 783-0678C-4008 LINK-LIFT - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 783-04568

Hanger Bracket, Deck (42-inch Decks)

Variations

Cub Cadet 783-04568-0637

Deck Hanger Bracket - POWDER BLACK (0637)

$51.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04568-4008

Deck Hanger Bracket - WINE RED (4008)

$51.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04568-0691

BRACKET:DECK HANGE - BLACK JACK (0691)

$51.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 747-04269A

Rod, Deck, .448" Dia. (42-inch Decks)

$27.99

$

In Stock, only 4 left!

0

29

Cub Cadet 783-04494

RH Arm, Lift (42-inch Deck)
(Superseded to 783-04494C)

Variations

Cub Cadet 783-04494-0637

Deck Lift Arm, RH - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 12

0

Cub Cadet 783-04494-4008

Deck Lift Arm, RH - WINE RED (4008)

$21.99

$

In Stock, Qty 12

0

$20.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 783-04711

LH Arm, Lift (42-inch Deck)

Variations

Cub Cadet 783-04711-0637

Deck Lift Arm, LH - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 13

0

Cub Cadet 783-04711-4008

Deck Lift Arm, LH - WINE RED (4008)

$24.99

$

In Stock, Qty 13

0

$21.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 748-04069

Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 13

0

32

Cub Cadet 712-0206

Nut, Hex, 1/2-13

Note: some tractors used 4 nuts

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 738-04130

Shoulder Screw, 3/8-16
(Superseded to 738-04130A)

$9.49

$

In Stock, Qty 10

0

34

Cub Cadet 750-0151

Spacer, .55 x .75 x 1.125 (50-inch Decks)
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0
