LT 1046 (13AP11CH710) - Cub Cadet 46" Lawn Tractor (2007 & Before) Command Engine Head Valve Breather Parts Diagram

46" Lawn Tractor

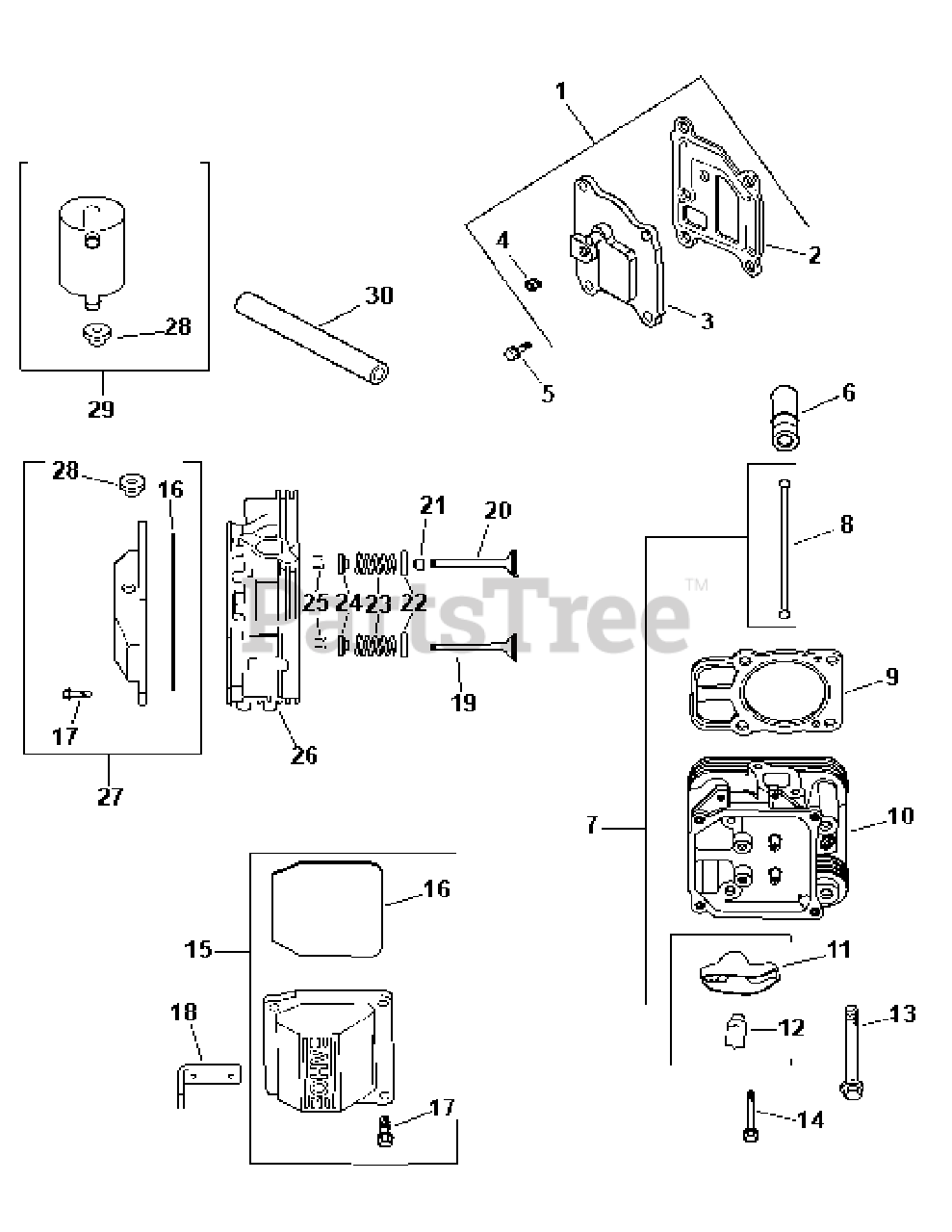

Command Engine Head Valve Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-033-03

Breather Cover Kit

$

$

Not available

2

Cub Cadet KH-24-041-51-S

Breather Gasket
(Superseded to KH-24-041-67-S)

$13.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-24-096-87-S

Breather Cover
(Superseded to KH-24-096-125-S)

$

$

Not available

4

Cub Cadet KH-25-139-60-S

1/8" Pipe Plug

$3.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-M-645020-S

Hex Flange Screw
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

6

Cub Cadet KH-25-351-01

Valve Lifter
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

7

Cub Cadet KH-24-755-66

Valve TrainKit

$

$

Not available

8

Cub Cadet KH-24-411-05

Push Rod

$

$

Not available

9

Cub Cadet KH-24-841-02-S

Cylinder Head Gasket

$45.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-318-70-S

Cylinder Head Assembly #2
(Superseded to KH-24-318-195-S)

$

$

Not available

11

Cub Cadet KH-25-186-01

Rocker Arm

$

$

Not available

12

Cub Cadet KH-24-599-01

Rocker Arm Pivot
(Superseded to KH-24-599-02-S)

$2.49

$

In Stock, Qty 8

0

13

Cub Cadet KH-12-086-16

Hex Flange Screw
(Superseded to KH-62-086-08-S)

$5.99

$

In Stock, Qty 5

0

14

Cub Cadet KH-66-086-07-S

Rocker Arm Pivot Screw
(Superseded to KH-M-640034-S)

$2.49

$

In Stock, Qty 18

0

15

Cub Cadet KH-24-755-141-S

Rocker Cover Kit

$35.99

$

In Stock, only 2 left!

0

16

Cub Cadet KH-24-153-28-S

O-Ring
(Superseded to KH-24-153-30-S)

$11.99

$

In Stock, only 3 left!

0

17

Cub Cadet KH-M-651030-S

Hex Flange Screw
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-24-445-01-S

Lifting Strap

$

$

Currently unavailable

19

Cub Cadet KH-24-016-01

Exhaust Valve
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

19

Cub Cadet KH-24-016-02

Exhaust Valve (.25)

$

$

Not available

20

Cub Cadet KH-24-017-01

Intake Valve

$

$

Not available

20

Cub Cadet KH-24-017-02

Intake Valve (.25)

$

$

Not available

21

Cub Cadet KH-66-032-05-S

Valve Stem Seal
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

22

Cub Cadet KH-235011-S

Retainer

$6.49

$

In Stock, only 2 left!

0

23

Cub Cadet KH-24-089-02

Valve Spring

$

$

Not available

24

Cub Cadet KH-12-173-01

Valve Spring Retainer
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

25

Cub Cadet KH-12-755-03

Retainer Kit

$5.99

$

In Stock, only 2 left!

0

26

Cub Cadet KH-24-318-67-S

Cylinder Head Assembly #1
(Superseded to KH-24-318-194-S)

$246.99

$

Usually ships in 3-6 days

0

27

Cub Cadet KH-24-755-142-S

Rocker Cover (Separator) Kit

$38.99

$

In Stock, only 1 left!

0

28

Cub Cadet KH-25-313-03-S

Rubber Grommet

$11.99

$

In Stock, only 3 left!

0

29

Cub Cadet KH-24-755-57-S

Breather Separator Kit
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

30

Cub Cadet KH-24-326-74-S

Breather Hose
(Superseded to KH-24-326-93-S)

$13.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-755-147-S

Cylinder Head Hardware Kit (not illustrated)

$96.99

$

In Stock, only 3 left!

0
