LT 1046 (13AP11CH709) - Cub Cadet 46" Lawn Tractor (2007 & Before) Command Engine Fuel System Parts Diagram

46" Lawn Tractor

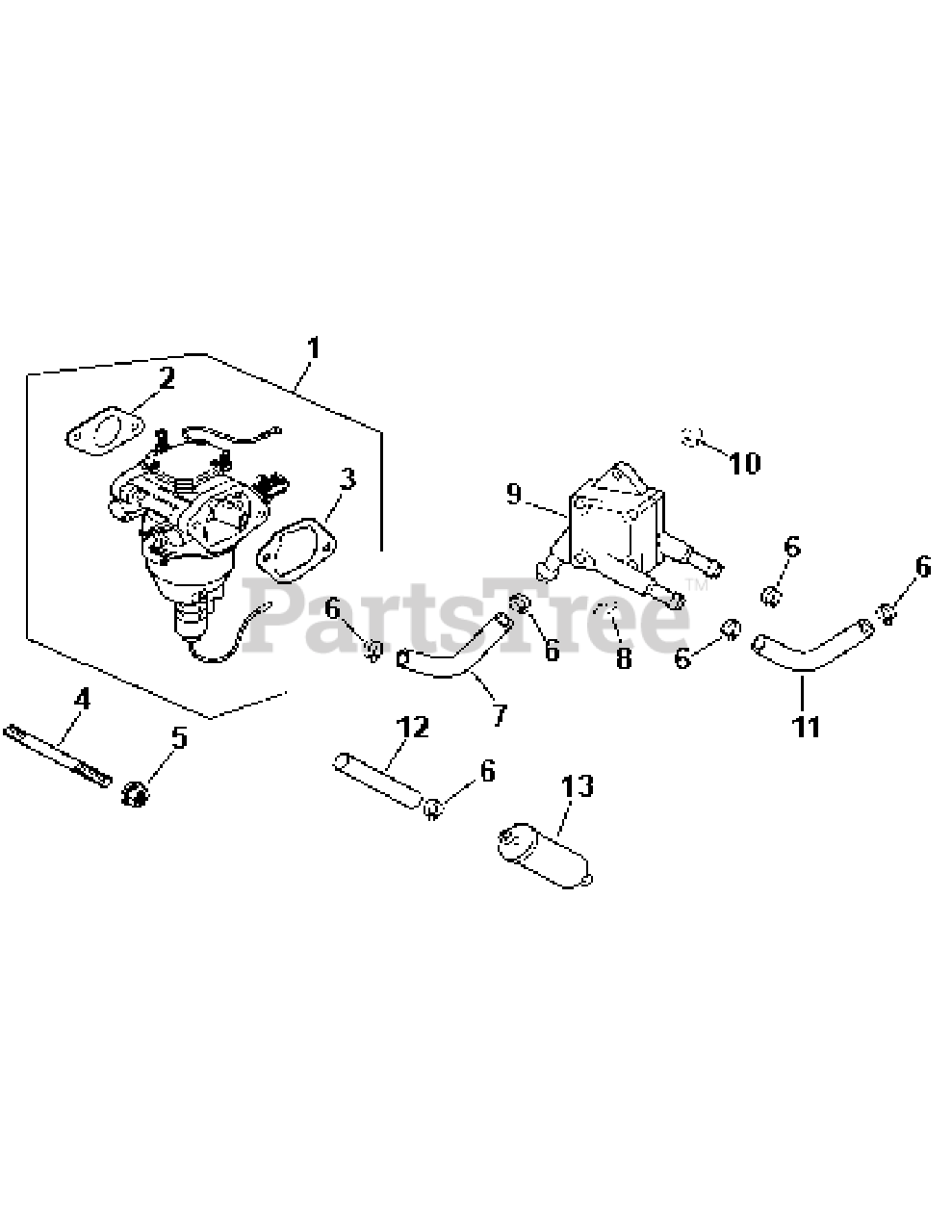

Command Engine Fuel System Parts Diagram

  • Title
1

Cub Cadet KH-24-853-61-S

Carburetor w/Gaskets
(Superseded to KH-24-853-303-S)

$361.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-041-52-S

Carburetor Gasket
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-041-14

Air Cleaner Base Gasket

$

$

Not available

4

Cub Cadet KH-M-629095-S

Intake Manifold Stud

$3.99

$

In Stock, only 2 left!

0

$4.49

$

In Stock, Qty 8

0

6

Cub Cadet KH-25-237-14-S

Hose Clamp
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-52-353-22-S

Fuel line 12.5"
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, only 4 left!

0

$

$

Not available

$

$

Not available

10

Cub Cadet KH-24-100-01

Plastic Nut
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 7

0

11

Cub Cadet KH-24-353-12

Fuel Line 11"

$

$

Not available

12

Cub Cadet KH-15-353-04-S

Fuel Line 11.5"

$

$

Currently unavailable

13

Cub Cadet KH-24-050-10-S

Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-24-063-51-S

Spitback Cup Baffle (not illustrated)
(Superseded to KH-24-063-105-S)

$8.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-431-01-S

Insulating Sleeve (not illustrated)
(Superseded to KH-24-431-02-S)

$6.49

$

In Stock, only 1 left!

0

Cub Cadet KH-47-154-01-S

Clip (not illustrated)

$5.49

$

In Stock, only 4 left!

0

Cub Cadet KH-24-757-38-S

Gasket Kit (not illustrated)

$32.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-36-S

Choke Repair Kit w/Gaskets (not illustrated)

$116.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-44-S

Float Kit (not illustrated)

$94.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-45-S

Solenoid Replacement Kit (not illustrated)

$246.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-46-S

Overhaul Kit w/Gaskets (not illustrated)

$137.99

$

In Stock, only 1 left!

0
