LT 1046 (13AP11CH709) - Cub Cadet 46" Lawn Tractor (2007 & Before) Command Engine Blower Housing & Baffles Parts Diagram

46" Lawn Tractor

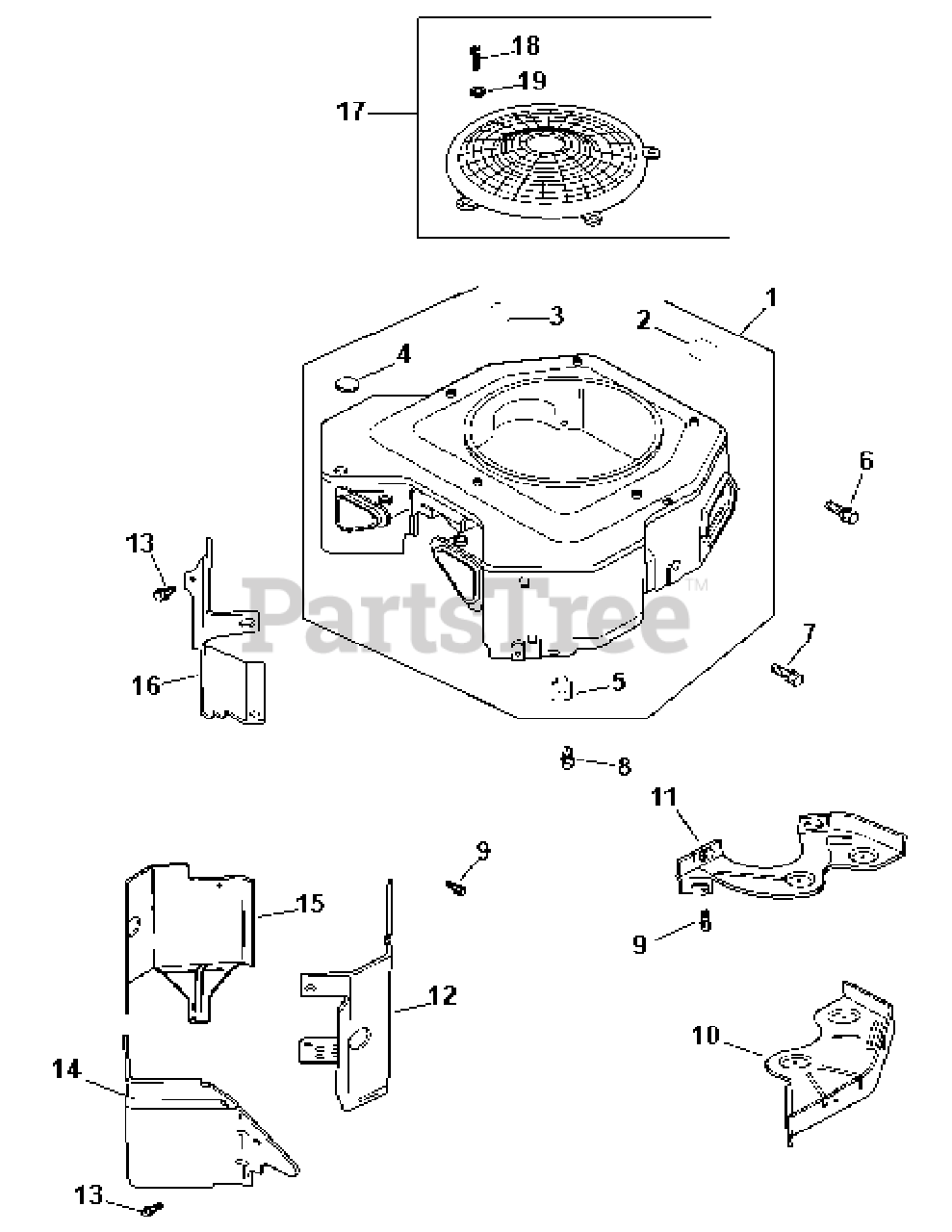

Command Engine Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-114-S

Blower Housing
(Superseded to KH-24-027-451-S)

$43.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-24-100-01

Plastic Nut
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 13

0

3

Cub Cadet KH-25-086-91-S

Tapping Screw

$3.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-25-139-16

9/16 Button Plug

$

$

Not available

5

Cub Cadet KH-24-100-02

Plastic Nut

$

$

Not available

6

Cub Cadet KH-M-545016-S

Screw
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-M-551016-S

Screw

$2.49

$

In Stock, only 2 left!

0

8

Cub Cadet KH-M-545020-S

Screw
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

9

Cub Cadet KH-M-645016-S

Screw

$3.99

$

In Stock, Qty 15

0

10

Cub Cadet KH-24-146-16-S

Backing Plate # 2

$

$

Not available

11

Cub Cadet KH-24-146-20-S

Backing Plate # 1

$

$

Not available

12

Cub Cadet KH-24-063-39-S

Cylinder Barrel Baffle # 2 Side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-M-0545010

Screw

$

$

Not available

14

Cub Cadet KH-24-063-69-S

Valley Baffle # 2 Side
(Superseded to KH-24-063-94-S)

$9.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-063-58-S

Cylinder Barrel Baffle # 1 Side
(Superseded to KH-24-063-85-S)

$17.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-24-063-60-S

Valley Baffle # 1 Side

$

$

Not available

17

Cub Cadet KH-24-755-81-S

Fixed Guard Kit

$52.99

$

In Stock, only 2 left!

0

18

Cub Cadet KH-24-086-35-S

Pan Head Screw

$2.49

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-24-468-10

Flat Washer

$

$

Not available

Cub Cadet KH-24-096-85-S

Blower Housing Cover (not illustrated)
(Superseded to KH-24-096-161-S)

$2.49

$

In Stock, only 1 left!

0
