LT 1046 (13AP11CH709) - Cub Cadet 46" Lawn Tractor (2007 & Before) Command Engine Air Intake Filtration Parts Diagram

46" Lawn Tractor

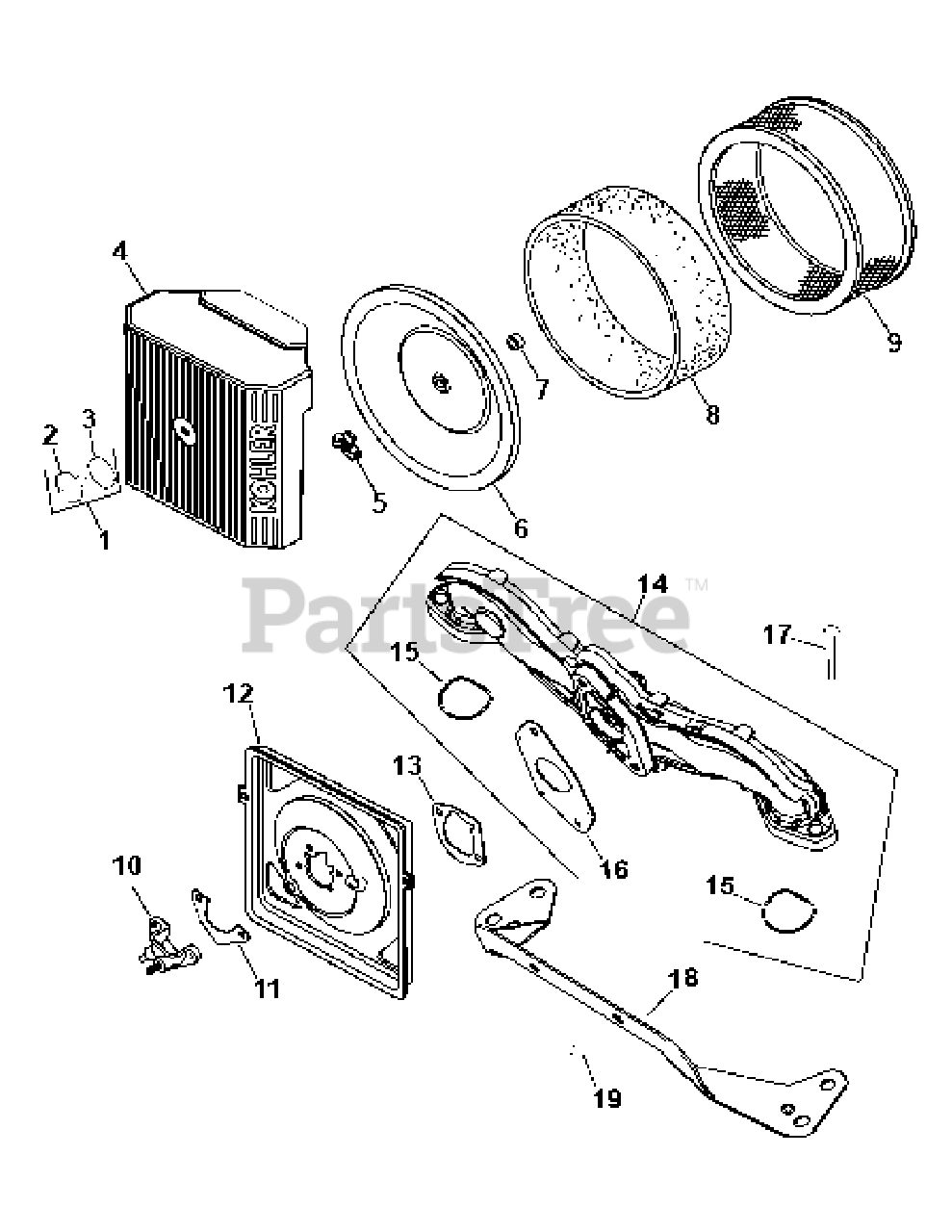

Command Engine Air Intake Filtration Parts Diagram

  • Title

1

Cub Cadet KH-54-755-01-S

Knob With Seal Kit

$9.49

$

In Stock, only 4 left!

0

2

Cub Cadet KH-25-341-04-S

Cover Knob

$7.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-24-153-20-S

O-Ring

$2.49

$

In Stock, Qty 10

0

4

Cub Cadet KH-24-096-67-S

Air Cleaner Cover

$47.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-12-100-01

Wing Nut

$3.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-24-096-01

Inner Air Cleaner Cover

$

$

Not available

7

Cub Cadet KH-24-032-03

Inner Air Cleaner Seal

$4.99

$

In Stock, Qty 9

0

8

Cub Cadet KH-24-083-02

Precleaner Element
(Superseded to 4788303S1C)

$27.99

$

In Stock, only 3 left!

0

9

Cub Cadet KH-47-883-03-S1

Air Cleaner Element
(Superseded to 4788303S1C)

$27.99

$

In Stock, only 3 left!

0

10

Cub Cadet KH-24-109-30-S

Spit Back Cup w/o Nipple

$22.99

$

In Stock, only 1 left!

0

11

Cub Cadet KH-24-041-13-S

Spit Back Cup Gasket

$5.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-24-094-43-S

Air Cleaner Base
(Superseded to KH-24-094-87-S)

$85.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-041-14

Air Cleaner Gasket

$

$

Not available

14

Cub Cadet KH-24-164-51-S

Intake Manifold
(Superseded to KH-24-164-278-S)

$218.99

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-24-153-27-S

Intake Port O-Ring

$3.99

$

In Stock, Qty 8

0

16

Cub Cadet KH-24-041-52-S

Carburetor Gasket
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-M-651040-S

Hex Flange Screw (M6 x 1.0 x 40)

$2.49

$

In Stock, Qty 12

0

18

Cub Cadet KH-24-126-130-S

Air Cleaner Bracket

$10.99

$

In Stock, only 4 left!

0

19

Cub Cadet KH-M-0545010

Hex Flange Screw (M5 x .8 x 10)

$

$

Not available

Cub Cadet KH-24-743-05

Air Cleaner Cover Kit (not illustrated)

$

$

Not available
