LT 1046 (13AP11CH010) - Cub Cadet 46" Lawn Tractor (2008 & After) Kohler SV720-0010 & SV730-0011 Controls Parts Diagram

46" Lawn Tractor

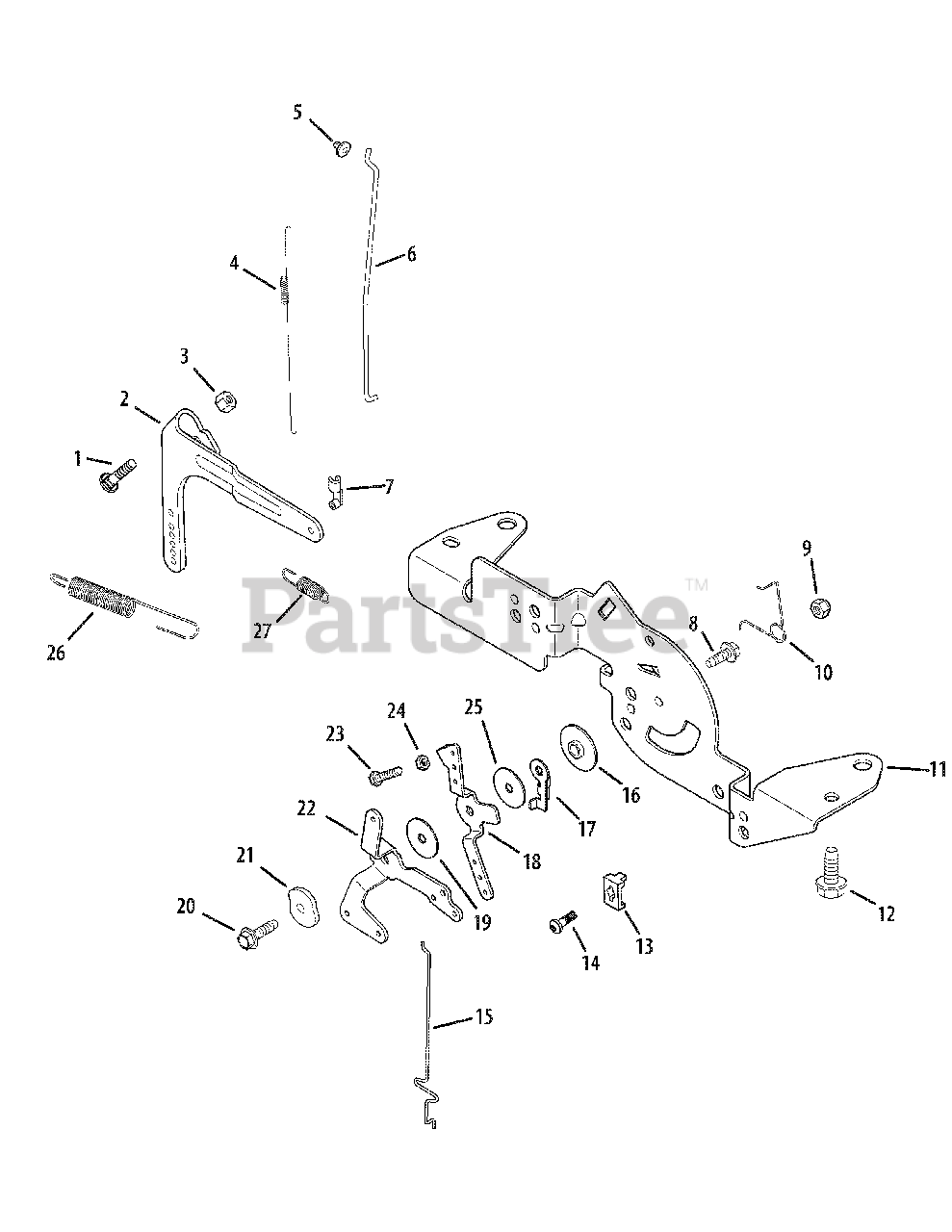

Kohler SV720-0010 & SV730-0011 Controls Parts Diagram

  • Title
1

Cub Cadet KH-24-211-03-S

Bolt, round hd square neck

$2.49

$

In Stock, Qty 15

0

2

Cub Cadet KH-24-090-33-S

Lever, governor
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-M-641060-S

Nut, hex. flange M6x1.0

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet KH-24-089-01

Spring, linkage

$

$

Not available

5

Cub Cadet KH-25-158-08

Bushing, linkage retaining

$5.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-079-04

Linkage, throttle

$

$

Not available

7

Cub Cadet KH-25-158-11

Bushing, throttle linkage

$

$

Not available

8

Cub Cadet KH-M-545016-S

Screw, hex. flange, M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-M-547050-S

Nut, hex. lock M5x0.8

$2.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-089-03

Spring, choke return

$

$

Not available

11

Cub Cadet KH-24-126-161-S

Bracket, control
(Superseded to KH-32-126-18-S)

$11.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-M-645016-S

Screw, hx. flange M6x1.0x16

$3.99

$

In Stock, Qty 15

0

13

Cub Cadet KH-47-237-02

Clamp, dual conduit
(Superseded to KH-47-237-02-S)

$10.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-086-43-S

Screw, thread forming
(Superseded to KH-25-086-405-S)

$2.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-079-22-S

Linkage, choke

$6.99

$

In Stock, Qty 7

0

16

Cub Cadet KH-24-112-27-S

Spacer, control assembly

$3.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-090-47-S

Lever, throttle actuator

$2.99

$

In Stock, Qty 11

0

18

Cub Cadet KH-24-090-13

Lever, throttle control

$

$

Not available

19

Cub Cadet KH-24-468-01

Washer, plain 5.5 mm

$

$

Not available

20

Cub Cadet KH-M-545020-S

Screw, hx. flange M5x0.8x20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

21

Cub Cadet KH-41-468-03

Washer, spring 1/4"

$

$

Not available

22

Cub Cadet KH-24-090-05

Lever, choke

$

$

Not available

23

Cub Cadet KH-M-403025

Screw, hex. head cap M4x0.7x25

$

$

Not available

24

Cub Cadet KH-M-446030-S

Nut, hex. M4x0.7

$2.49

$

In Stock, only 4 left!

0

25

Cub Cadet KH-24-468-20-S

Washer, plain

$2.49

$

In Stock, only 1 left!

0

26

Cub Cadet KH-24-089-25-S

Spring, governor

$15.99

$

In Stock, only 1 left!

0

27

Cub Cadet KH-24-089-55-S

Spring, governor

$2.49

$

In Stock, Qty 6

0
