LT 1045 (13RX11CH256) - Cub Cadet 46" Lawn Tractor (2008 & After) Lift Assembly Parts Diagram

46" Lawn Tractor

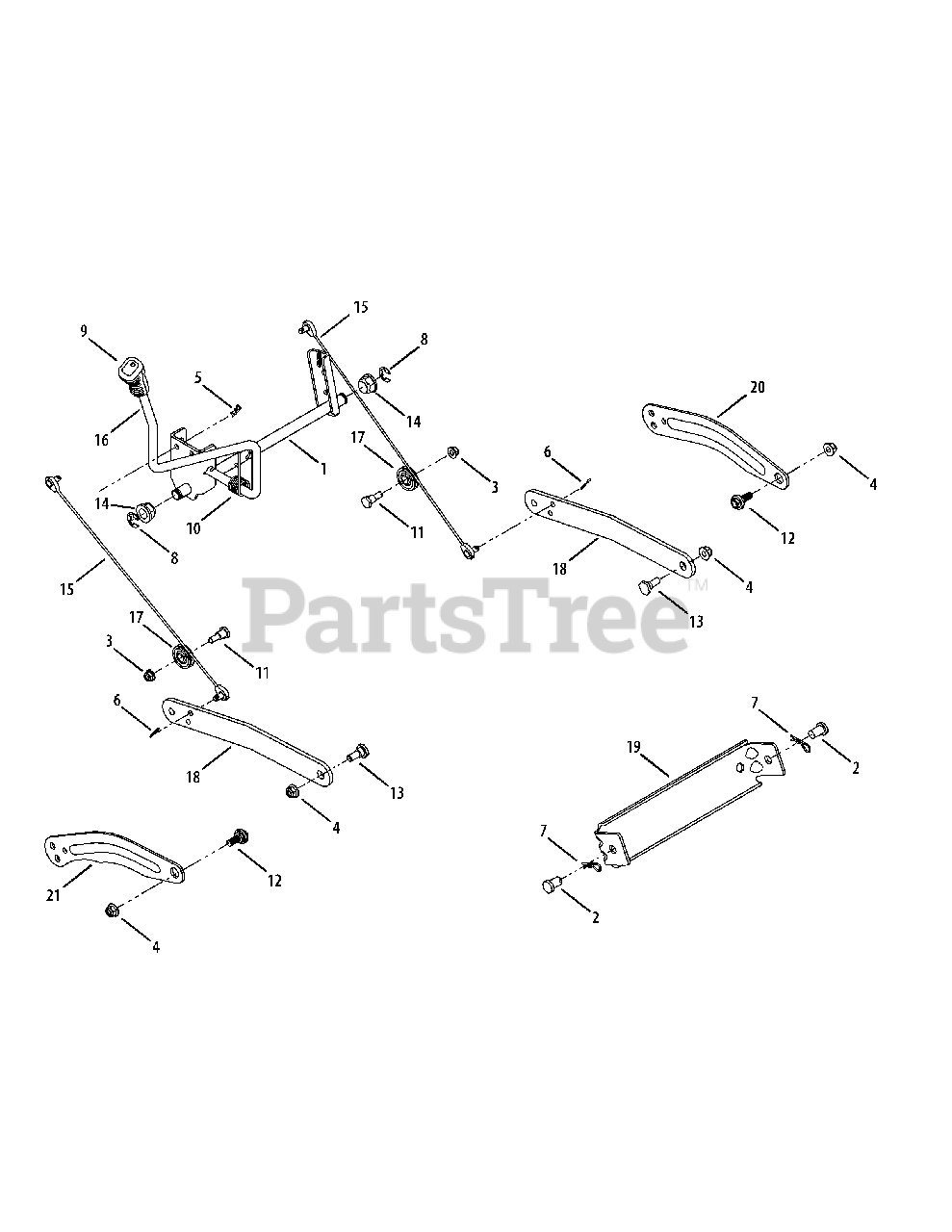

Lift Assembly Parts Diagram

  • Title
1

Cub Cadet 683-04223

Shaft Assembly, Lift
(Superseded to 683-04223-0637)

Variations

Cub Cadet 683-04223-0637

Lift Shaft Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 711-0332

Pin, Clevis, .50 Dia x .78 Lg
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

3

Cub Cadet 712-04063

Nut, Nylon Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 714-0104

Pin, Cotter, .072 Dia. x 1.13 Lg

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 714-0111

Pin, Cotter, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

7

Cub Cadet 714-04023

Pin, Click, .092 x 1.64 Lg

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 716-0106A

E-ring, .625 Dia. Shaft

$5.49

$

In Stock, only 2 left!

0

9

Cub Cadet 720-0311

Grip, Handle

$15.99

$

In Stock, only 1 left!

0

10

Cub Cadet 732-0874

Spring, Torsion

$4.99

$

In Stock, Qty 6

0

11

Cub Cadet 738-0138A

Screw, Hex Cap, 5/16-18x.620 Gr2

$6.99

$

In Stock, only 2 left!

0

12

Cub Cadet 738-04130

Shoulder Screw, 3/8-16
(Superseded to 738-04130A)

Note: (42-inch Deck)

$9.49

$

In Stock, Qty 10

0

13

Cub Cadet 738-0380

Shldr. Screw, 3/8-16

Note: (46 & 50-inch Deck)

$7.99

$

In Stock, only 1 left!

0

14

Cub Cadet 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

15

Cub Cadet 746-0968

Cable, Lift, 16.16 Lg

$19.99

$

In Stock, Qty 20+

0

16

Cub Cadet 747-04447

Handle, Lift

$44.99

$

In Stock, only 3 left!

0

17

Cub Cadet 756-1154

Pulley, Roller

$7.99

$

In Stock, only 2 left!

0

18

Cub Cadet 783-05546

Arm, Lift
(Superseded to 783-05546A-0637)

Note: (46- and 50-inch Decks)

Variations

Cub Cadet 783-05546-0637

Lift Link - POWDER BLACK (0637)

$20.99

$

In Stock, only 2 left!

0

$20.99

$

In Stock, only 2 left!

0

19

Cub Cadet 783-0720A

Bracket, Deck
(Superseded to 783-0720C)

Note: (50-inch Decks)

Variations

Cub Cadet 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

Cub Cadet 783-0720A-4008

USE 783-0720C-4008 BRACKET-AD - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 783-04711

LH Arm, Lift

Note: (42-inch Deck)

Variations

Cub Cadet 783-04711-0637

Deck Lift Arm, LH - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 13

0

Cub Cadet 783-04711-4008

Deck Lift Arm, LH - WINE RED (4008)

$24.99

$

In Stock, Qty 13

0

$21.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 783-04494

RH Arm, Lift
(Superseded to 783-04494C)

Note: (42-inch Deck)

Variations

Cub Cadet 783-04494-0637

Deck Lift Arm, RH - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 12

0

Cub Cadet 783-04494-4008

Deck Lift Arm, RH - WINE RED (4008)

$21.99

$

In Stock, Qty 12

0

$20.99

$

Usually ships in 3-6 days

0
