LT 1045 (13BP11CH709) - Cub Cadet 46" Lawn Tractor (2007 & Before) Engine Accessories 1I135H & before Parts Diagram

46" Lawn Tractor

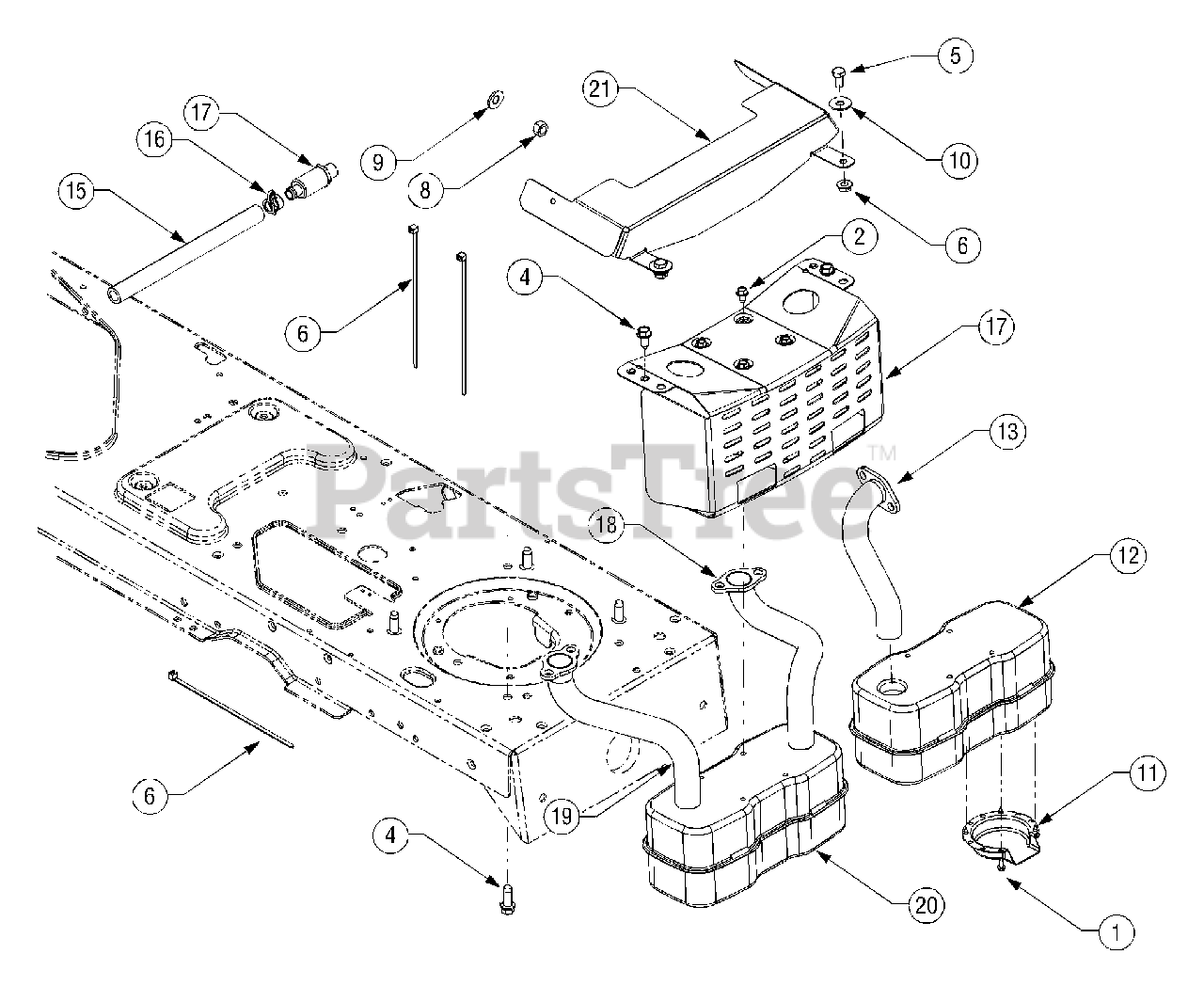

Engine Accessories 1I135H & before Parts Diagram

  • Title
1

Cub Cadet 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0599

Screw, Hex, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0726

Screw, Hex, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0654A

Screw, Hex, 3/8-16 x 1.00 (LT1042 & LT1045)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1315

Screw, Hex, 3/8-16 x 1.25 (LT1046 & LT1050)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3025

Screw, Hex, 5/16-18 x .625 (LT1046 & LT1050)

$3.99

$

In Stock, Qty 8

0

6

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18 (LT1046 & LT1050)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3017

Hex Nut, 3/8-16 (LT1046 & LT1050)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0300

Lock Washer,.406 x.875 x.059 (LT1046 & LT1050)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-3078

Washer, Flat, .349 x 1.00 x .063 (LT1046 & LT1050)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 751-0564A

Deflector, Muffler
(Superseded to 751-0564B)

$13.99

$

In Stock, only 4 left!

0

12

Cub Cadet 751-0617A

Muffler, Single Inlet (LT1042 & LT1045)
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

13

Cub Cadet 751-10047

Pipe, Exhaust (LT1042 & LT1045)

$

$

Not available

15

Cub Cadet 751-3141

Extension Hose, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

16

Cub Cadet 751-3142

Cap, Oil Drain

$4.49

$

In Stock, Qty 14

0

17

Cub Cadet 783-0615D

Bracket, Muffler
(Superseded to 783-0615E-0637)

Variations

Cub Cadet 783-0615D-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

17

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

In Stock, only 2 left!

0

18

Cub Cadet 751-0644B

Pipe, Exhaust, LH (LT1046 & LT1050)

$146.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 751-0645A

Pipe, Exhaust, RH (LT1046 & LT1050)

$93.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 751-0805

Muffler, Dual Inlet (LT1046 & LT1050)
(Superseded to 951-0805A)

$123.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 783-0881

Shield, Heat (LT1046 & LT1050)

$

$

Not available
