LT 1045 (13AX11CH709) - Cub Cadet 46" Lawn Tractor (2007 & Before) Kohler SV600-0009 Crankcase Parts Diagram

46" Lawn Tractor

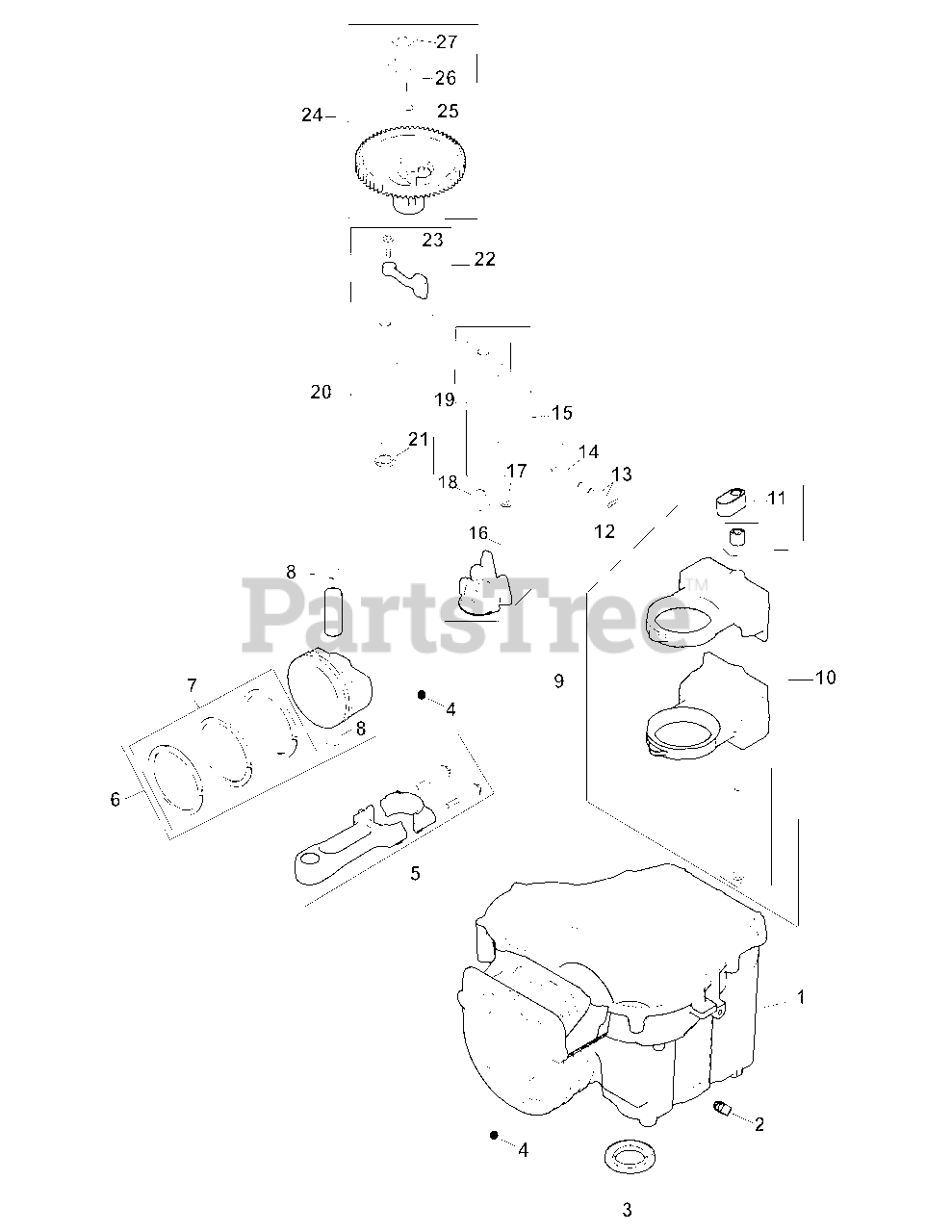

Kohler SV600-0009 Crankcase Parts Diagram

  • Title
1

Cub Cadet N/A

Crankcase

$

$

Currently unavailable

1

$

$

Not available

2

Cub Cadet KH-25-139-57-S

Pipe Plug Sq. hd. 3/8"

$2.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-20-032-01-S

Oil Seal
(Superseded to KH-20-032-08-S)

$9.49

$

In Stock, Qty 11

0

4

Cub Cadet KH-20-194-02-S

Check Valve Ball

$2.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-20-067-04-S

Connecting Rod (Std.)
(Superseded to KH-20-067-06-S)

$

$

Not available

6

Cub Cadet KH-20-874-01-S

Piston w/Ring Set (Std.)

$

$

Not available

7

Cub Cadet KH-20-108-01-S

Ring Set (94 mm)
(Superseded to KH-20-108-04-S)

Note: AR

$63.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-20-018-04-S

Piston Pin Retainer

$

$

Not available

9

Cub Cadet KH-20-755-04-S

Balance Weight Kit

Note: NLA, order short block

$

$

Not available

10

Cub Cadet KH-20-086-16-S

Screw/Guide Pin Kit
(Superseded to KH-20-380-16-S)

$

$

Not available

11

$

$

Not available

12

Cub Cadet KH-12-154-05

Hitch Pin Clip
(Superseded to KH-12-154-05-S)

$2.99

$

Usually ships in 3-6 days

0

13

$2.49

$

In Stock, Qty 5

0

14

Cub Cadet KH-20-144-02-S

Governor Cross Shaft

$14.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-20-393-02-S

Oil Pump Assembly (17-20)

$41.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-20-112-02-S

Oil Pump Screw Spacer
(Superseded to KH-20-086-12-S)

$2.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-20-086-13-S

Oil Pump Screw
(Superseded to KH-20-086-12-S)

$2.49

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-20-032-07-S

Oil Pump Outlet Seal

$

$

Not available

19

Intake Cam Center Shaft,Included In Ref.# 16

$

$

Not available

20

Cub Cadet KH-20-144-06-S

Exhaust Cam Center Shaft
(Superseded to KH-20-144-11-S)

$20.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-20-468-01-S

Thrust Washer

$

$

Not available

22

Cub Cadet KH-20-090-01-S

Cam Lever Assembly (24)
(Superseded to KH-20-090-12-S)

$5.49

$

In Stock, only 2 left!

0

23

Cub Cadet KH-20-086-06-S

Shoulder Screw

$3.99

$

In Stock, Qty 15

0

24

Cub Cadet KH-20-010-04-S

Cam Gear Assembly (26-28)

$

$

Not available

25

$2.99

$

In Stock, only 1 left!

0

26

Cub Cadet KH-20-044-16-S

ACR Weight
(Superseded to KH-20-044-32-S)

$13.99

$

In Stock, only 1 left!

0

27

Cub Cadet KH-20-468-03-S

ACR Thrust Washer

$2.49

$

In Stock, Qty 10

0

Cub Cadet KH-20-123-02-S

Drainback Tube (not illustrated)

$4.99

$

In Stock, Qty 10

0
