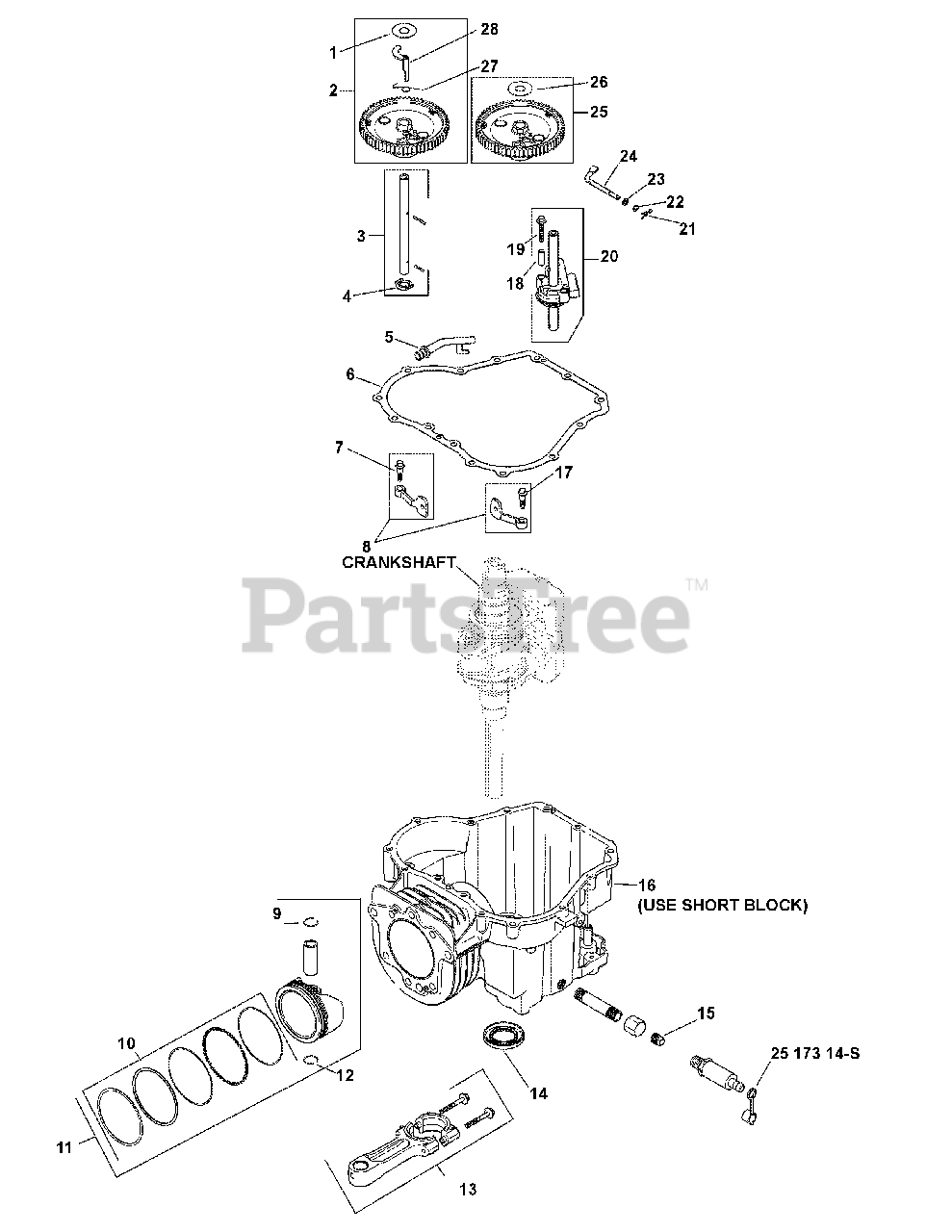

LT 1042 (13AX11CG710) - Cub Cadet 42" Lawn Tractor (2007 & Before) Kohler SV600-0217 Crankcase Parts Diagram

42" Lawn Tractor

Kohler SV600-0217 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-20-468-03-S

Washer, Thrust -Acr

$2.49

$

In Stock, Qty 10

0

2

Cub Cadet KH-20-010-04-S

Kit, Camshaft Assembly

Note: (Incl. Ref No. 1, 27 & 28)

$

$

Not available

3

Cub Cadet KH-20-144-11-S

Kit,Cam Center Shaft (Exhaust)

$20.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-20-468-08-S

Washer, Thrust

Note: (Incl. Ref No. 4)

$2.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-20-123-02-S

Tube, Drainback

$4.99

$

In Stock, Qty 10

0

6

Cub Cadet KH-20-041-01-S

Gasket, Closure Plate
(Superseded to KH-20-041-21-S)

$

$

Not available

7

Cub Cadet KH-20-086-06-S

Screw, Shd Thd Frm M6X1X26

$3.99

$

In Stock, Qty 15

0

8

Cub Cadet KH-20-090-01-S

Kit, Cam Lever Assembly
(Superseded to KH-20-090-12-S)

Note: (Incl. Ref No. 7 & 17)

$5.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-62-018-04-S

Retainer, Piston Pin

$2.99

$

In Stock, only 3 left!

0

10

Cub Cadet KH-20-108-04-S

Ring Set (94Mm)

$63.99

$

In Stock, only 1 left!

0

11

Cub Cadet KH-20-874-09-S

Kit, Piston W/Ring Set (94Mm)
(Superseded to KH-20-874-16-S)

Note: (Incl. Ref No. 9, 10 & 12)

$114.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-62-018-04-S

Retainer, Piston Pin

$2.99

$

In Stock, only 3 left!

0

13

Cub Cadet KH-20-067-05-S

Rod, Connecting Assembly

$80.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-20-032-01-S

Seal, Oil
(Superseded to KH-20-032-08-S)

$9.49

$

In Stock, Qty 11

0

15

Cub Cadet KH-25-139-57-S

Plug, Sq Hd Pipe 3/8"

$2.49

$

In Stock, only 3 left!

0

16

Cub Cadet N/A

Crankcase

Note: (Use Short Block)

$

$

Currently unavailable

16

Cub Cadet KH-20-522-15

Short Block Pressure Fed

Note: Not Shown

$

$

Not available

16

Cub Cadet KH-20-522-16

Short Block Gravity Fed

Note: Not Shown

$1221.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-20-086-06-S

Screw, Shd Thd Frm M6X1X26

$3.99

$

In Stock, Qty 15

0

18

Cub Cadet KH-20-112-02-S

Spacer, Oil Pump Screw
(Superseded to KH-20-086-12-S)

$2.49

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-20-086-13-S

Screw, Oil Pump
(Superseded to KH-20-086-12-S)

$2.49

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-20-393-02-S

Kit, Oil Pump Assembly

Note: (Incl. Ref No. 18 & 19)

$41.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-12-154-05

Clip, Hitch Pin
(Superseded to KH-12-154-05-S)

$2.99

$

Usually ships in 3-6 days

0

22

Cub Cadet KH-X-25-102-S

Washer, Flat 1/4"

$2.49

$

In Stock, Qty 5

0

23

Cub Cadet KH-M-631015

Washer, Flat 6 Mm
(Superseded to KH-M-631015-S)

$2.49

$

In Stock, Qty 7

0

24

Cub Cadet KH-20-144-02-S

Shaft, Governor Cross

$14.99

$

In Stock, only 1 left!

0

25

Cub Cadet KH-20-010-04-S

Kit, Camshaft Assembly

Note: (Incl. Ref No. 26)

$

$

Not available

26

Cub Cadet KH-20-468-03-S

Washer, Thrust -ACR

$2.49

$

In Stock, Qty 10

0

27

Cub Cadet KH-20-089-06-S

Spring, ACR

$2.99

$

In Stock, only 1 left!

0

28

Cub Cadet KH-20-044-16-S

Weight, ACR
(Superseded to KH-20-044-32-S)

$13.99

$

In Stock, only 1 left!

0

Cub Cadet KH-20-755-05-S

Overhaul Gasket Kit

Note: Not Shown

$79.99

$

Usually ships in 2-5 days

0
