LT 1042 (13AX11CG710) - Cub Cadet 42" Lawn Tractor (2007 & Before) Kohler SV590-0003 Oil Pan & Lubrication Parts Diagram

42" Lawn Tractor

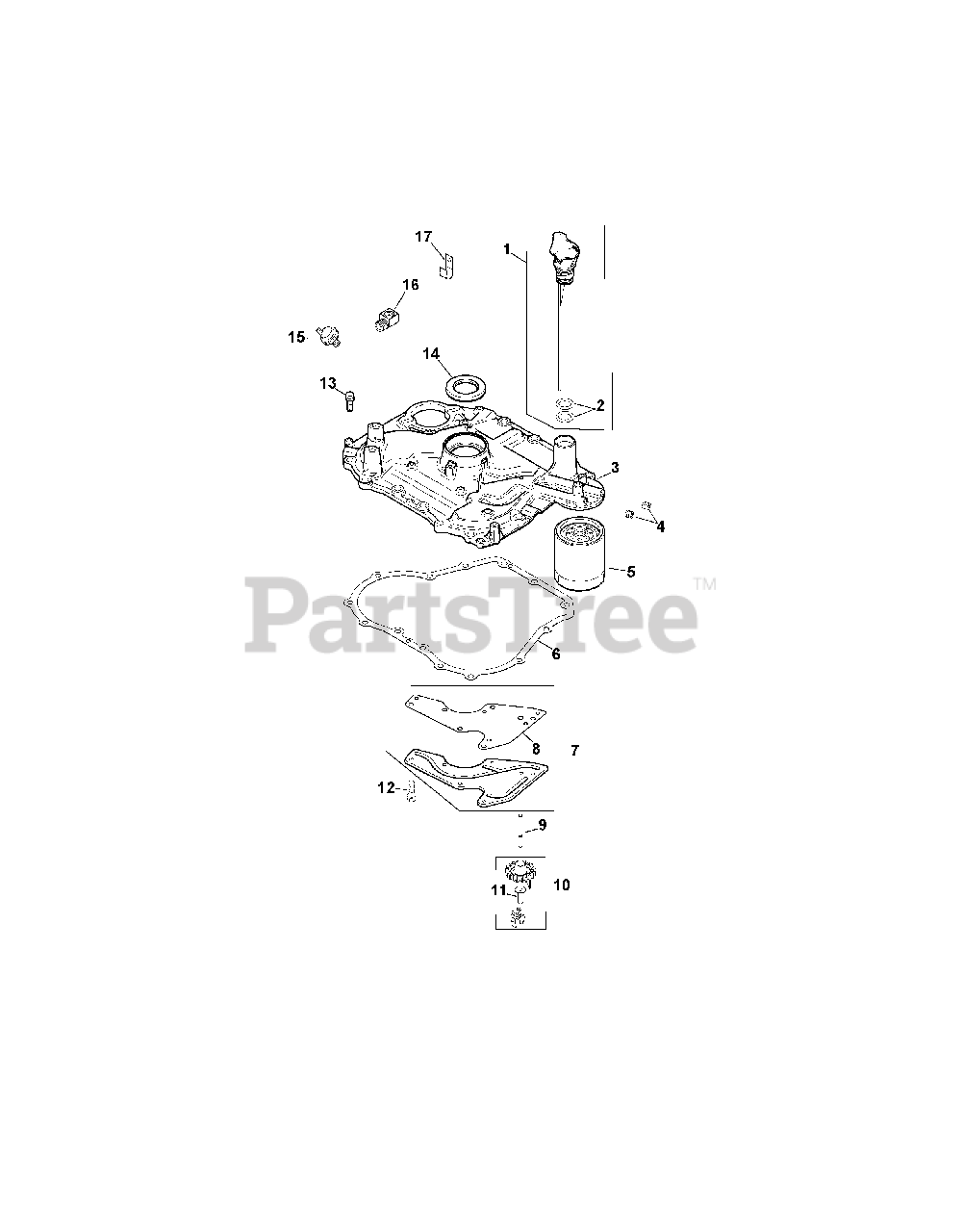

Kohler SV590-0003 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-20-040-03-S

Dipstick Assembly Kit
(Superseded to KH-20-040-08-S)

$7.99

$

In Stock, Qty 8

0

2

Cub Cadet KH-20-153-01-S

Dipstick O-Ring
(Superseded to KH-25-153-09-S)

$3.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-20-009-03-S

Closure Plate Assembly
(Superseded to KH-20-009-10-S)

$194.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-25-139-60-S

Pipe Plug

$3.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-25-050-25-S

Oil Filter
(Superseded to KH-52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-20-041-01-S

Closure Plate Gasket
(Superseded to KH-20-041-21-S)

$

$

Not available

7

Cub Cadet KH-20-096-02-S

Oil Passage Cover Kit

$

$

Not available

8

Cub Cadet KH-20-041-02-S

Oil Passage Gasket

$3.49

$

In Stock, Qty 5

0

9

Cub Cadet KH-20-144-03-S

Governor Gear Shaft

$2.49

$

In Stock, only 3 left!

0

10

Cub Cadet KH-20-310-03-S

Gear & Weight Assembly
(Superseded to KH-25-310-09-S)

$13.99

$

In Stock, only 3 left!

0

11

Cub Cadet KH-12-380-01

Governor Regulating Pin

$

$

Not available

12

Cub Cadet KH-M-545013-S

Hex Flange Screw (M5 x .8 x 13)

$2.49

$

In Stock, Qty 7

0

13

Cub Cadet KH-M-851030-S

Hex Flange Screw (M8 x 1.25 x 30)

$2.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-20-032-01-S

Oil Seal
(Superseded to KH-20-032-08-S)

$9.49

$

In Stock, Qty 9

0

15

Cub Cadet KH-25-099-24-S

Pressure Switch
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, only 4 left!

0

16

Cub Cadet KH-25-054-13-S

1/8" N.P.T.F. Elbow

$

$

Not available

17

Cub Cadet KH-231285-S

Cable Clip

$7.49

$

Usually ships in 2-5 days

0
