LT 1042 (13AX11CG709) - Cub Cadet 42" Lawn Tractor (2007 & Before) Kohler SV590-0003 Ignition & Electrical Parts Diagram

42" Lawn Tractor

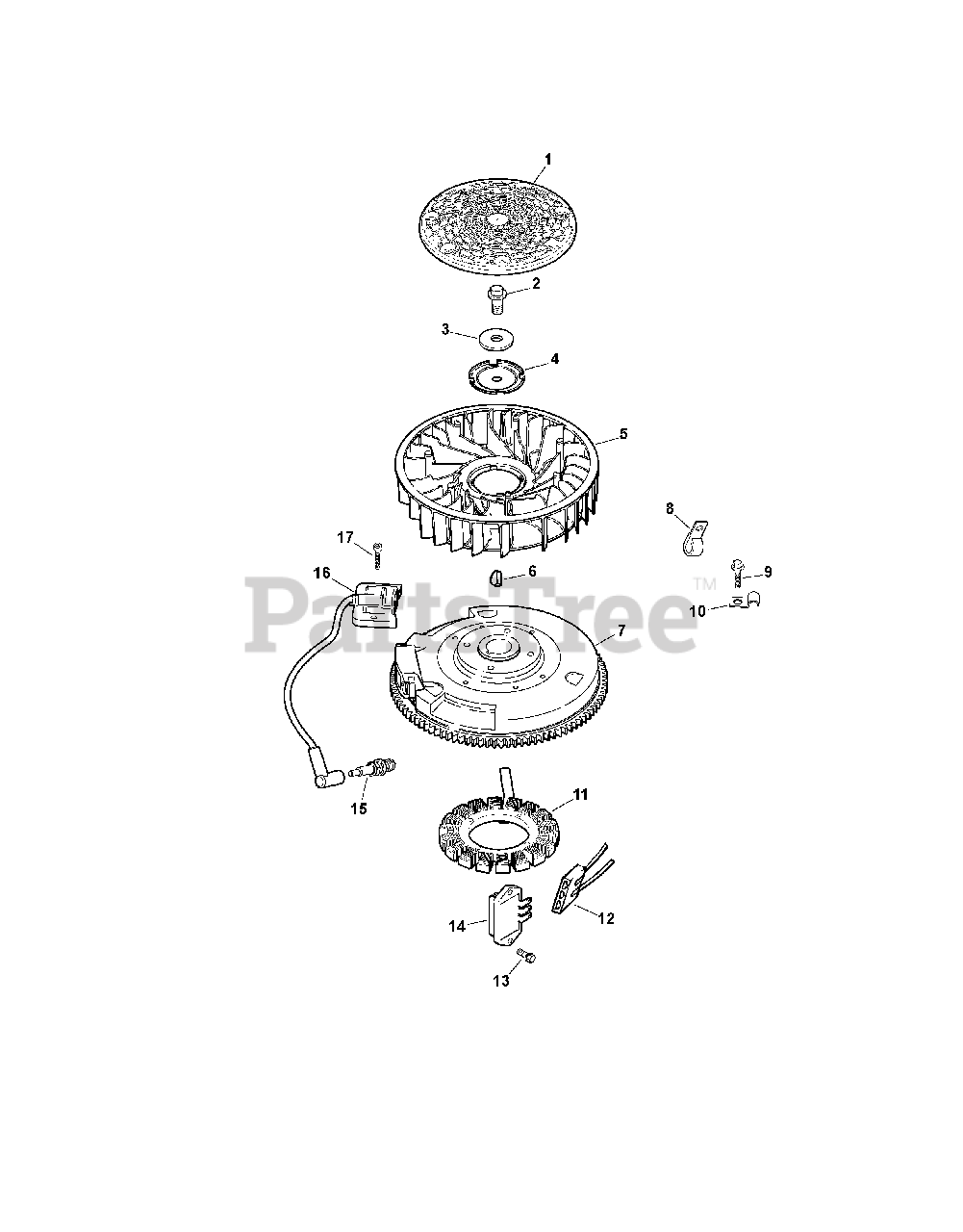

Kohler SV590-0003 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-20-162-02-S

Grass Screen

$7.99

$

In Stock, Qty 5

0

2

Cub Cadet KH-12-086-14

Hex Flange Screw (M10 x 1.5 x 46)
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

3

Cub Cadet KH-12-468-03

Spring Washer

$

$

Not available

4

Cub Cadet KH-20-146-02-S

Fan Mounting Plate
(Superseded to KH-20-146-05-S)

$2.99

$

In Stock, Qty 11

0

5

Cub Cadet KH-20-157-01-S

Fan

$24.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-X-42-15

Woodruff Key

$

$

Not available

7

Cub Cadet KH-20-025-05-S

Flywheel
(Superseded to KH-20-025-44-S)

$251.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-231285-S

Cable Clip

$7.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-20-086-17-S

Screw

$

$

Not available

10

Cub Cadet KH-20-154-02-S

Cable Clip

$2.49

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-54-755-09-S

Stator Assembly
(Superseded to KH-237878)

$

$

Not available

12

Cub Cadet KH-236602-S

Connector (3 Contact)
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

13

Cub Cadet KH-M-545020-S

Hex Flange Screw (M5 x .8 x 20)
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

14

Cub Cadet KH-41-403-09

Regulator Rectifier
(Superseded to KH-25-403-37-S)

$

$

Not available

15

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

16

Cub Cadet KH-20-584-01-S

Ignition Module
(Superseded to KH-20-584-03-S)

$32.99

$

In Stock, only 3 left!

0

17

Cub Cadet KH-M-561025-S

Hex Flange Screw (M5 x .8 x 25)

$2.49

$

In Stock, only 4 left!

0

Cub Cadet KH-20-176-02-S

Wiring Harness (NOT ILLUSTRATED)

$

$

Not available
