LT 1042 (13AX11CG709) - Cub Cadet 42" Lawn Tractor (2007 & Before) Kohler SV590-0003 Engine Controls Parts Diagram

42" Lawn Tractor

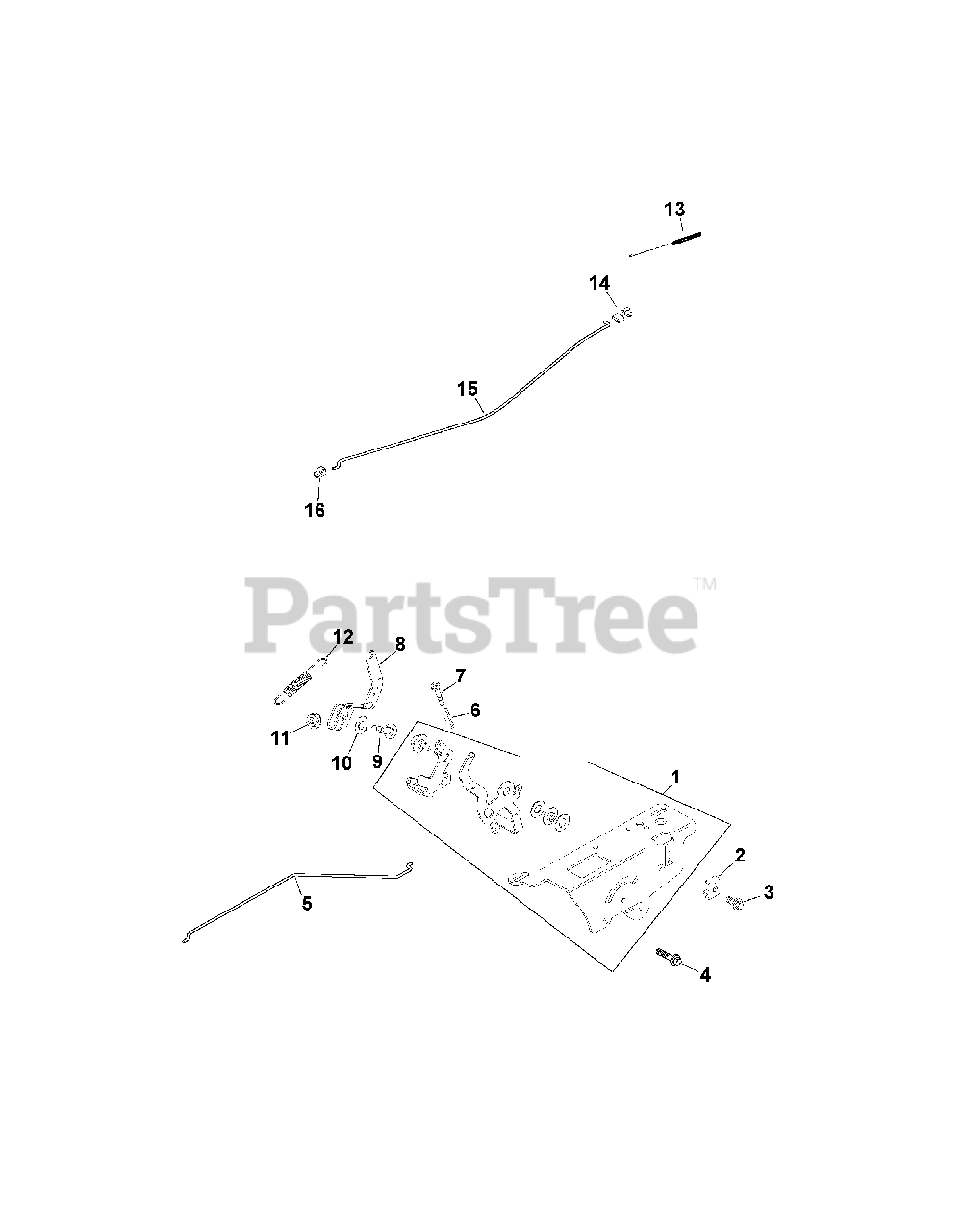

Kohler SV590-0003 Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-20-536-03-S

Speed Control Assembly

$

$

Currently unavailable

2

Cub Cadet KH-12-237-01

Cable Clamp
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-M-545016-S

Torx Head Screw
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-M-664020-S

Lobed Socket Screw
(Superseded to KH-25-086-403-S)

$2.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-20-079-05-S

Choke Linkage (Single Wire)

$2.99

$

In Stock, Qty 5

0

6

Cub Cadet KH-12-089-11

Speed Control Spring
(Superseded to KH-12-089-11-S)

$2.49

$

In Stock, only 4 left!

0

7

Cub Cadet KH-20-086-10-S

Thread Forming Screw

$2.49

$

In Stock, only 3 left!

0

8

Cub Cadet KH-20-090-02-S

Governor Lever
(Superseded to KH-20-090-11-S)

$6.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-52-211-04

Round Head Bolt

$

$

Not available

10

Cub Cadet KH-X-22-11

1/4" Lock Washer

$

$

Not available

11

Cub Cadet KH-12-100-07

Hex Flange Nut

$

$

Not available

12

Cub Cadet KH-20-089-07-S

Governor Spring
(Superseded to KH-20-089-11-S)

$2.49

$

In Stock, Qty 7

0

13

Cub Cadet KH-20-089-10-S

Linkage Spring

$3.99

$

In Stock, Qty 8

0

14

Cub Cadet KH-25-158-11

Throttle Linkage Bushing

$

$

Not available

15

Cub Cadet KH-20-079-04-S

Throttle Linkage
(Superseded to KH-20-079-07-S)

$3.99

$

In Stock, only 3 left!

0

16

Cub Cadet KH-25-158-08

Linkage Retaining Bushing

$5.99

$

Usually ships in 2-5 days

0
